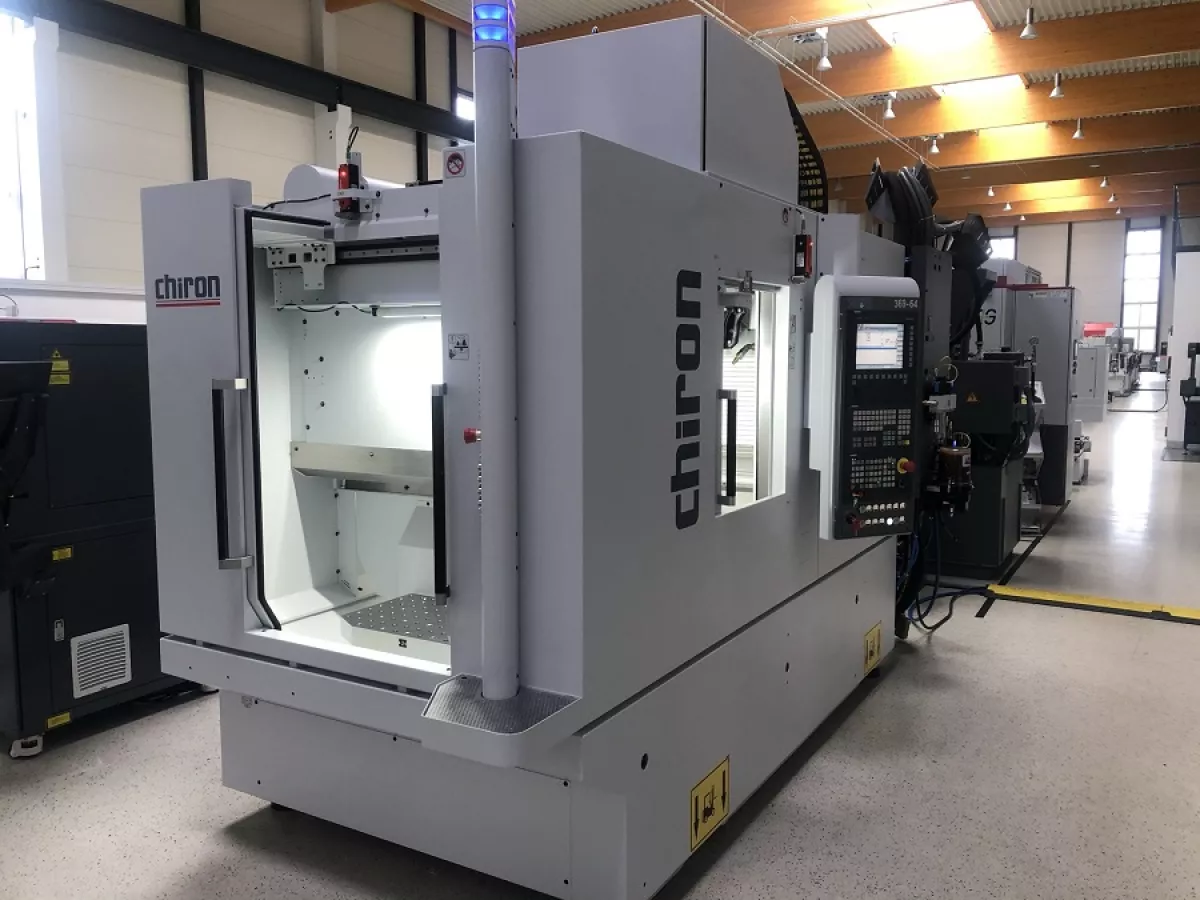

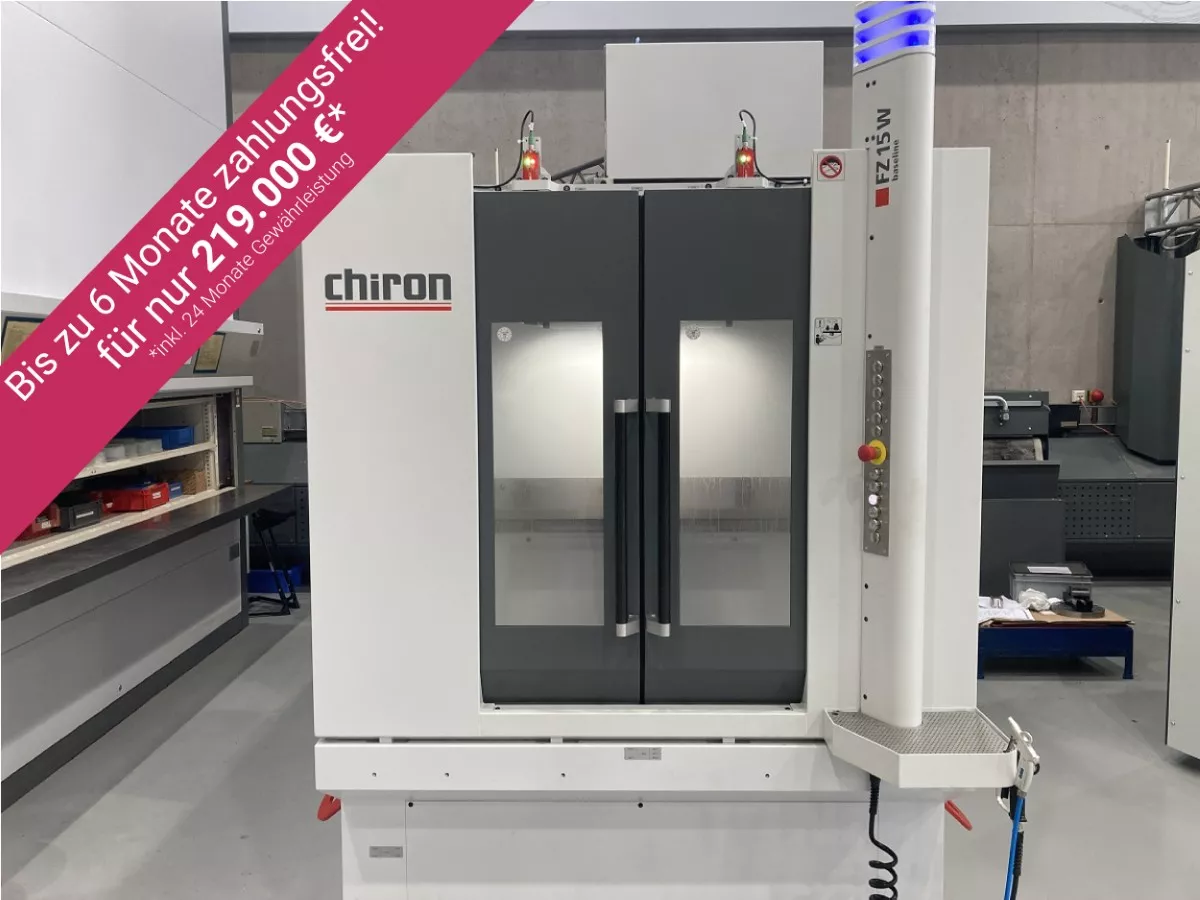

Chiron FZ 15 W baseline

3-axis machining center (New machine)

The machining center with basket changer and workpiece changing device
Compact, stable and reliable

An FZ15 W baseline machining center has vast reserves regarding CNC milling. It belongs to the best machine tools in its class in terms of its speed, compact design, sturdiness and reliability.

Highest positioning accuracy

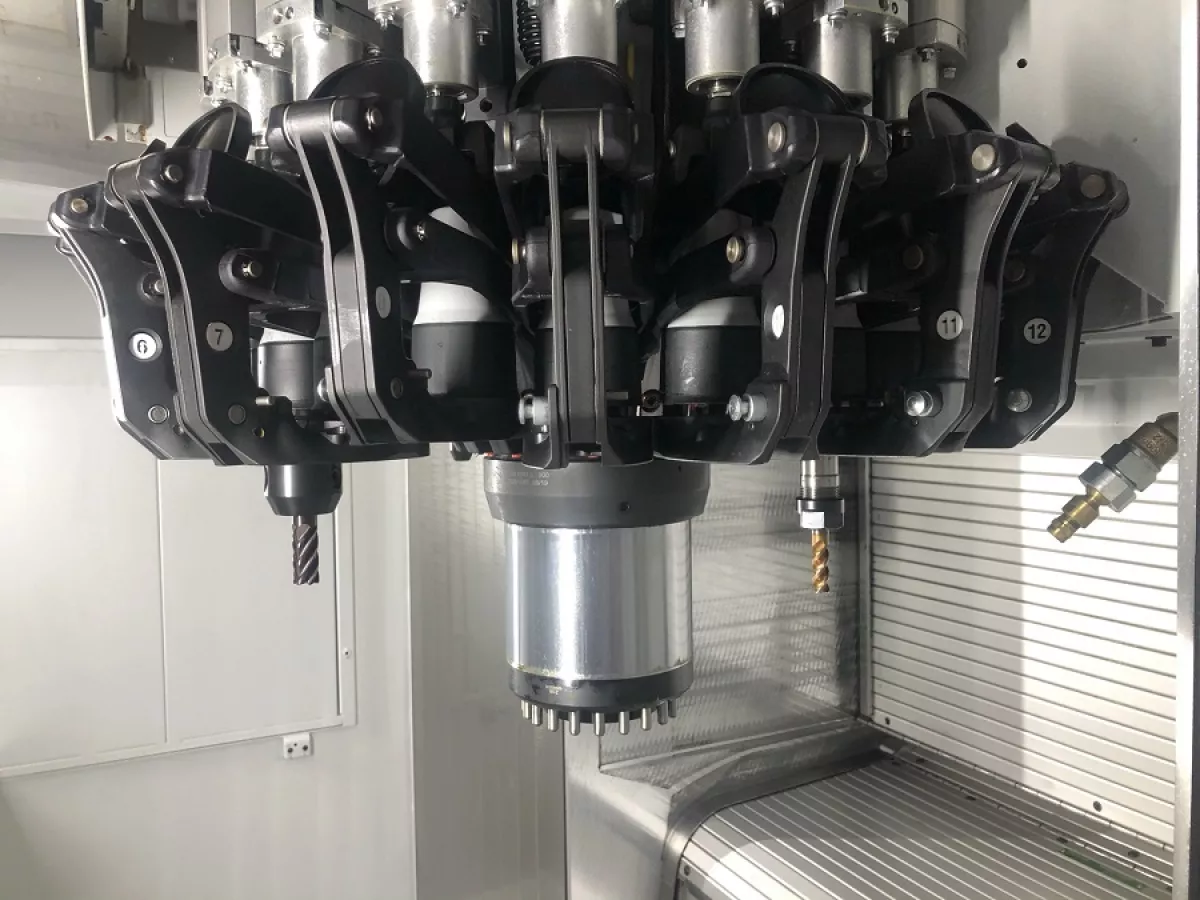

The core of the FZ15 W is the CHIRON basket tool changer. It offers highest positioning accuracy and can change tools in any position in the work area. The work table with its workpiece changing device also contributes to efficient cutting.

Strong performance – technical data of the FZ15 W baseline:

  • Vertical moving column principle
  • Compact installation area (width 2,000 mm x depth 5,700 mm)
  • Mineral cast machine bed
  • High rigidity and thermal stability
  • Dynamic direct drives and precision guides
  • Loading and unloading during machining
  • Fastest CHIRON basket tool changer

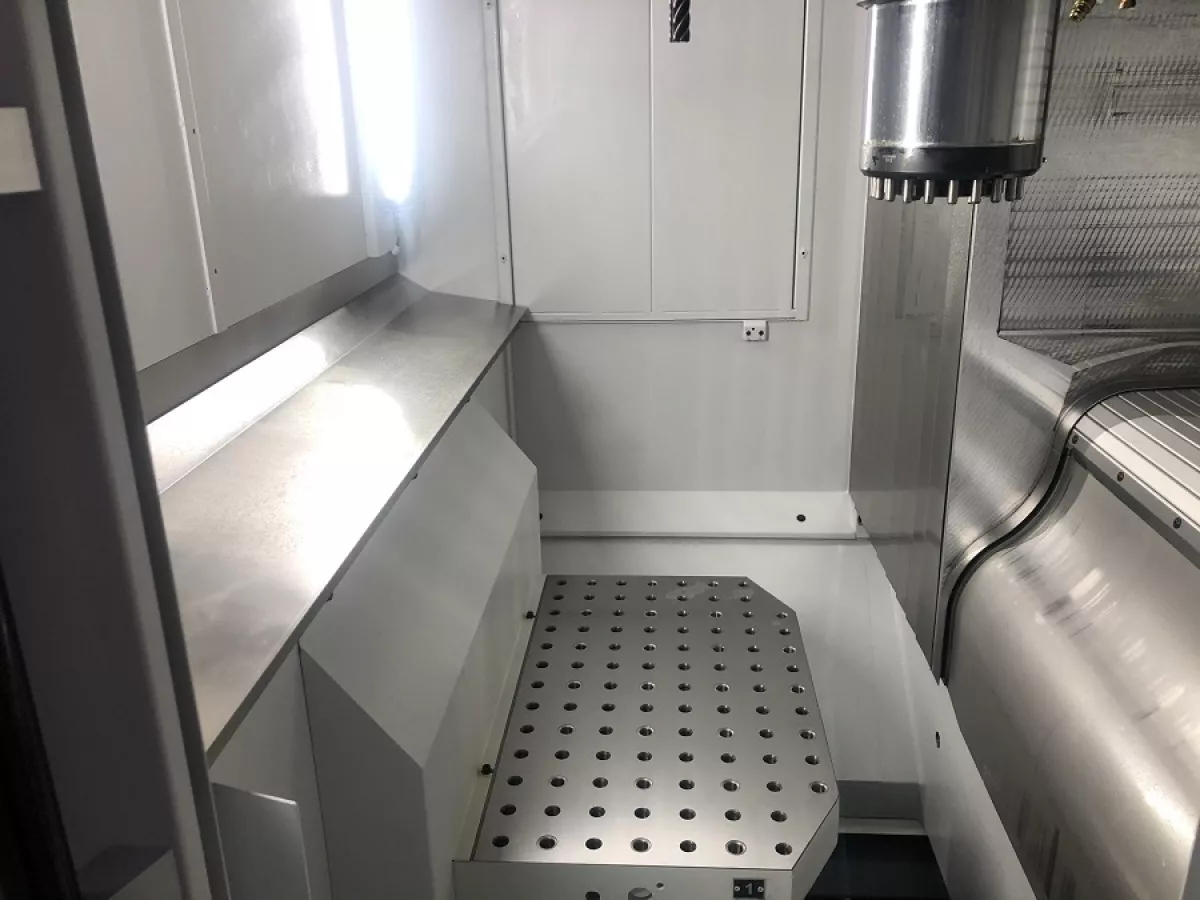

  • Fully enclosed work area; stainless steel covers
  • Ergonomic operating and loading concept
  • Service-friendly access to all units
  • Low-maintenance and long-lasting
  • Machine tool construction “Designed and Made in Germany“

Product code92-000313
Manufacturer Chiron
ModelFZ 15 W baseline
Type3-axis machining center
ConditionNew machine

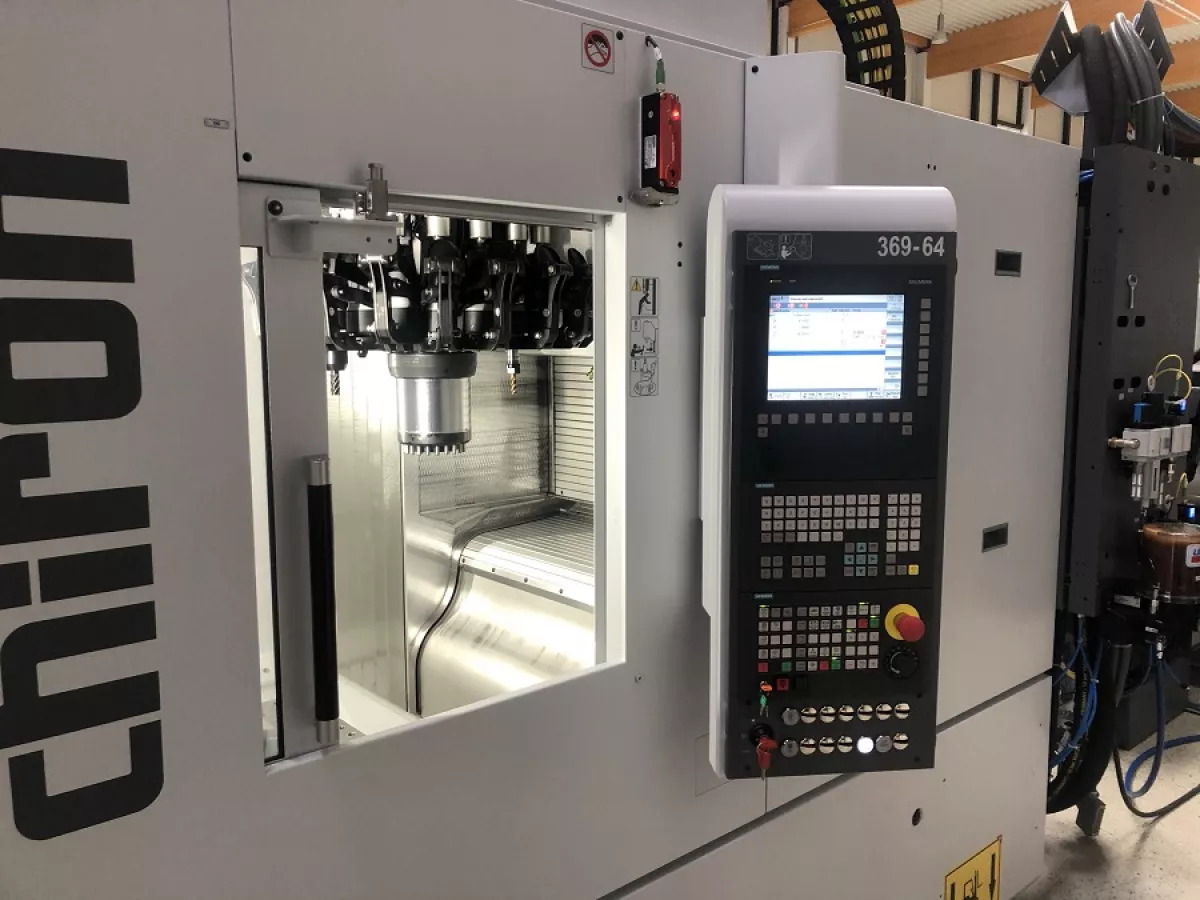

ControlSiemens 840 Dsl
Year of manuf.2020



Technical Data

Speed 10,500 rpm
Power max. 23.3 kW
Taper SK40
Travels X 550 mm
Travels Y 400 mm
Travels Z 425 mm

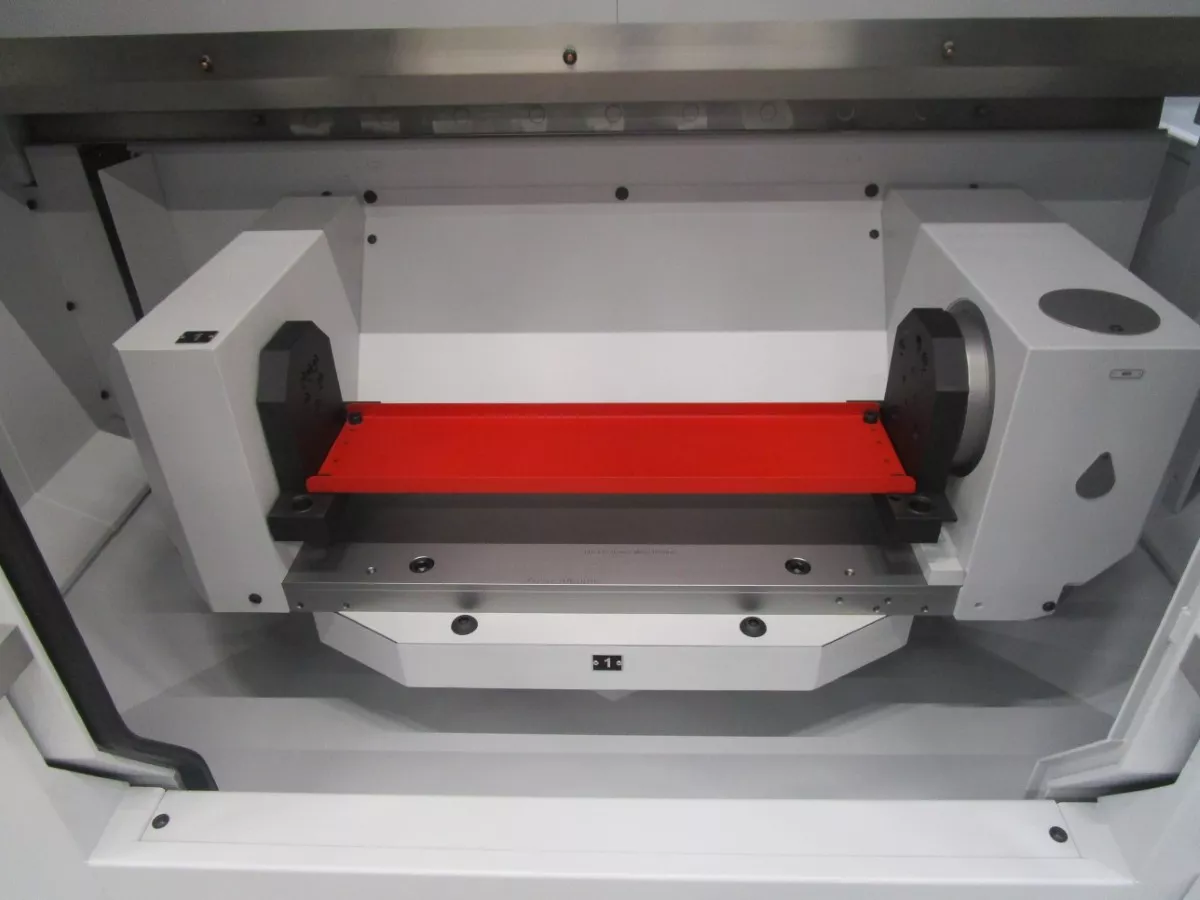

Technology 2-way changing table
Clamping surface 660 x 440 mm
Tool magazine 20 Stations
Chip-to-chip-time 2.1 sec
workpiece dimensions LxWxH 550 x 400 x 425 mm
workpiece changing time 2.4 sec
table load 2 x 300 kg

Equipment

  • Chip conveyor
  • Coolant supply
  • Paperbeltfilter
  • Workpiece measurement
  • Tool measurement
  • high pressure coolant
