Demo machine
ROMI C 570
Cycle-controlled lathe
upon request
- Artikelnr.94-000001
- LieferzeitImmediately available
- Year of manuf.2024

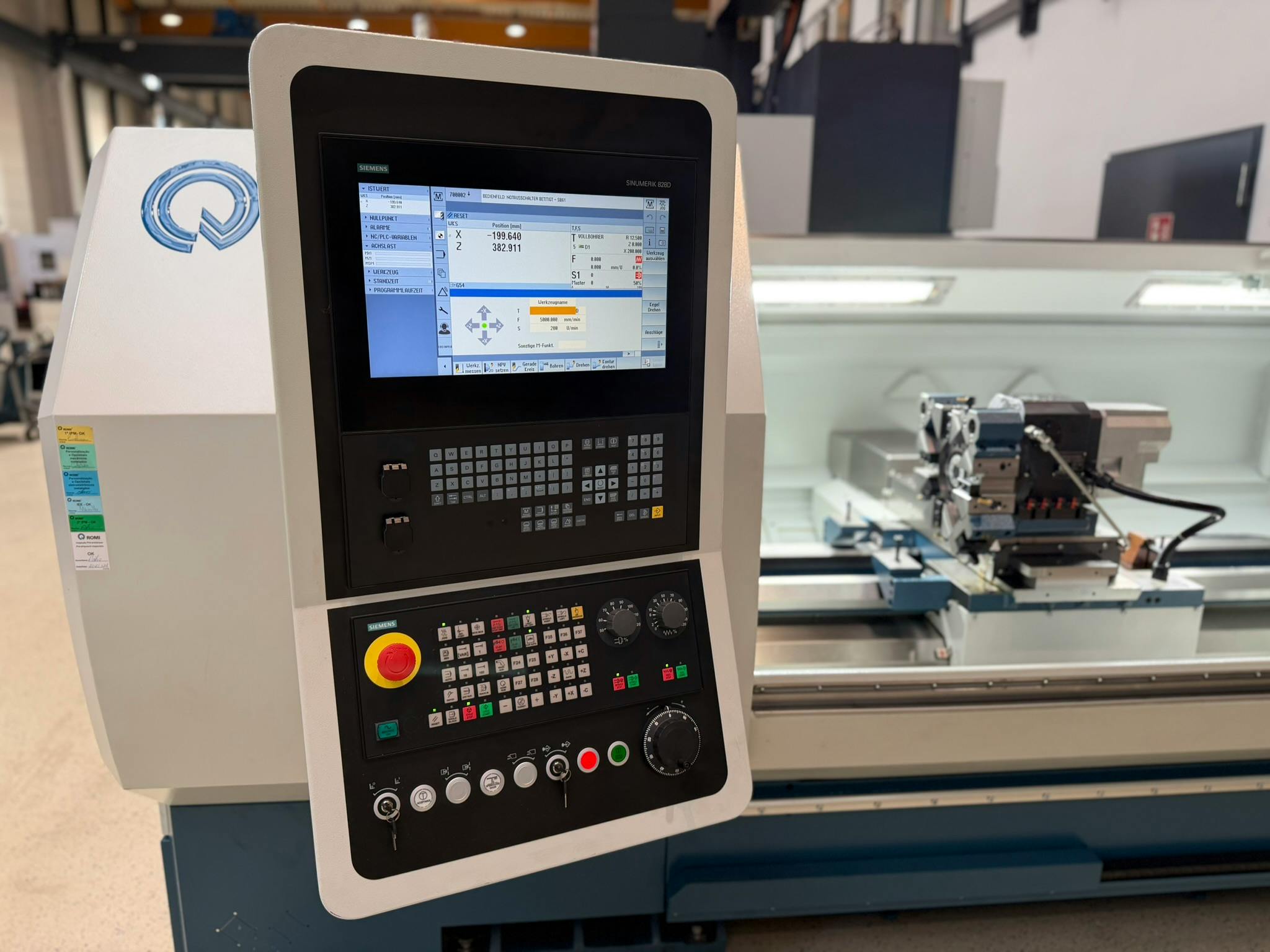

- ControlSiemens 828 D
- Spindle bores65 mm
- Turning length1500 mm
Configure your machine
Romi C570
Total plus statutory VAT
–
Technical Data
Spindle
| Speed | 3000 rpm |
|---|---|
| Power | 11 kW |
| Torque | 320 Nm |

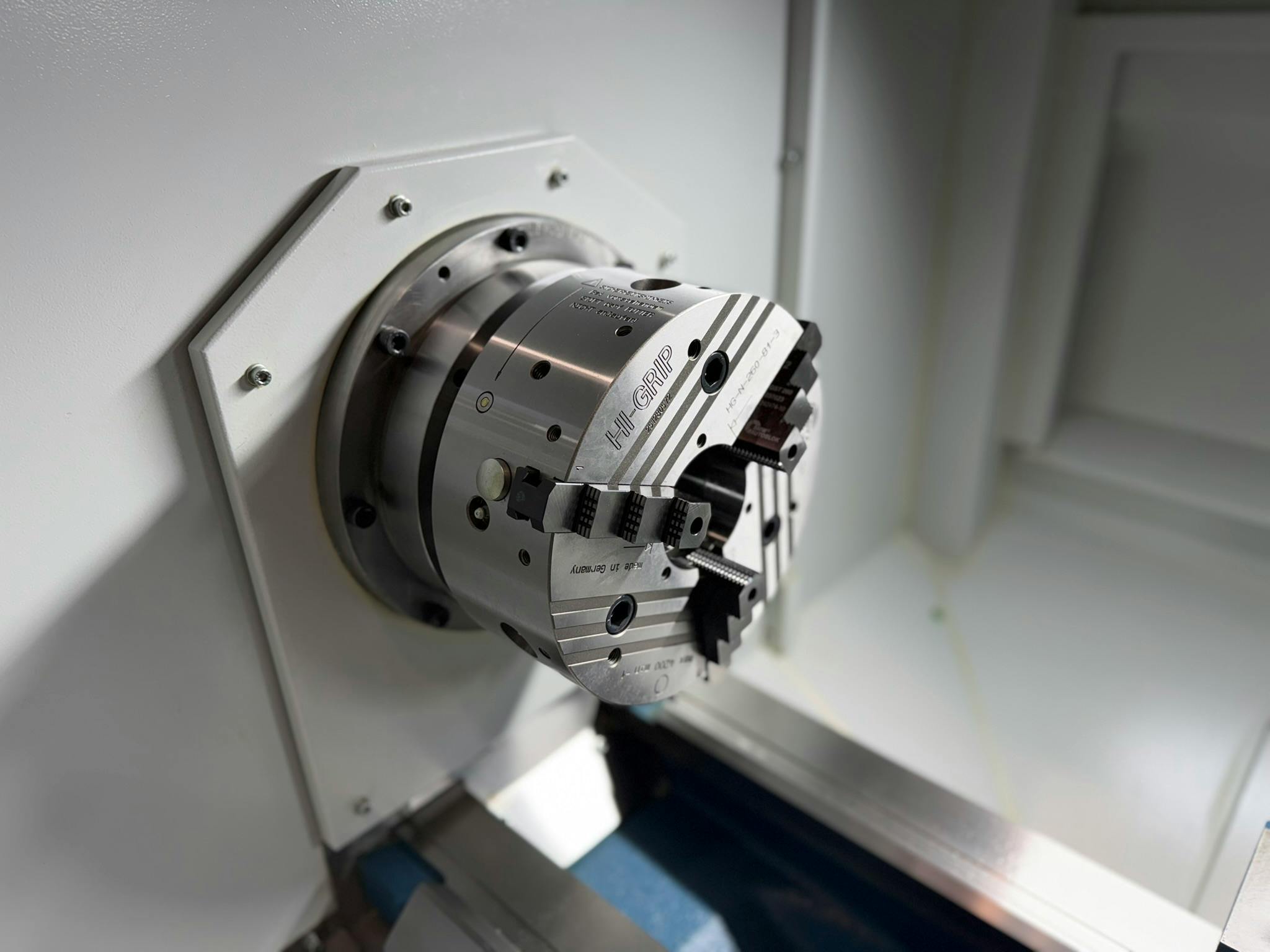

| Chuck diameter | 260 mm |
| Spindle bearing | 65 mm |
| Spindel nose | A2-6'' |
Working area
| Center distance | 1,500 mm |
|---|---|
| Center hight | 290 mm |
| Diameter over bed | 570 mm |
| Diameter over carriage | 510 mm |
Tool sytem

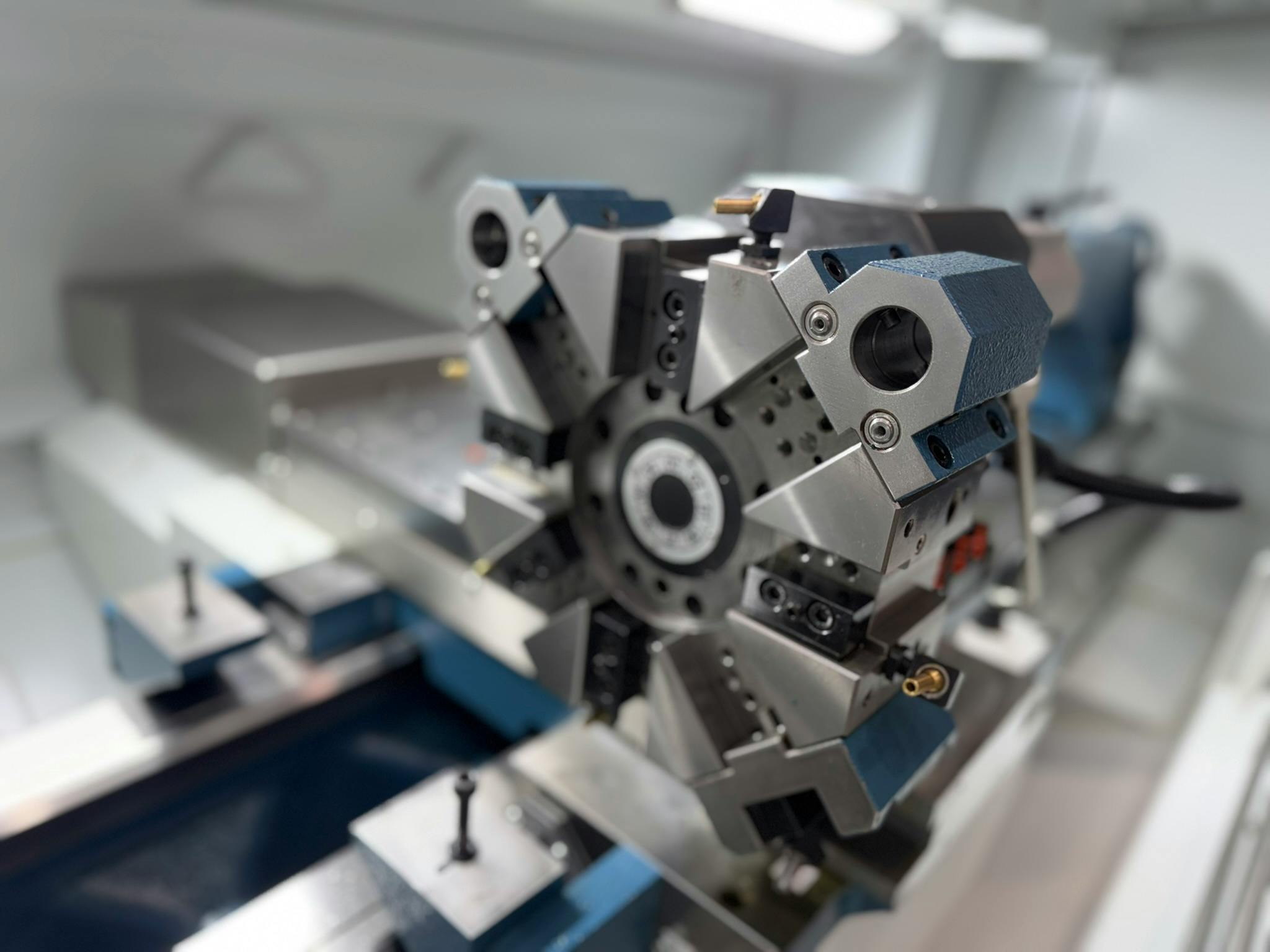

| Turret | Automatic 8-station disc turret |
|---|---|
| electrically driven | |

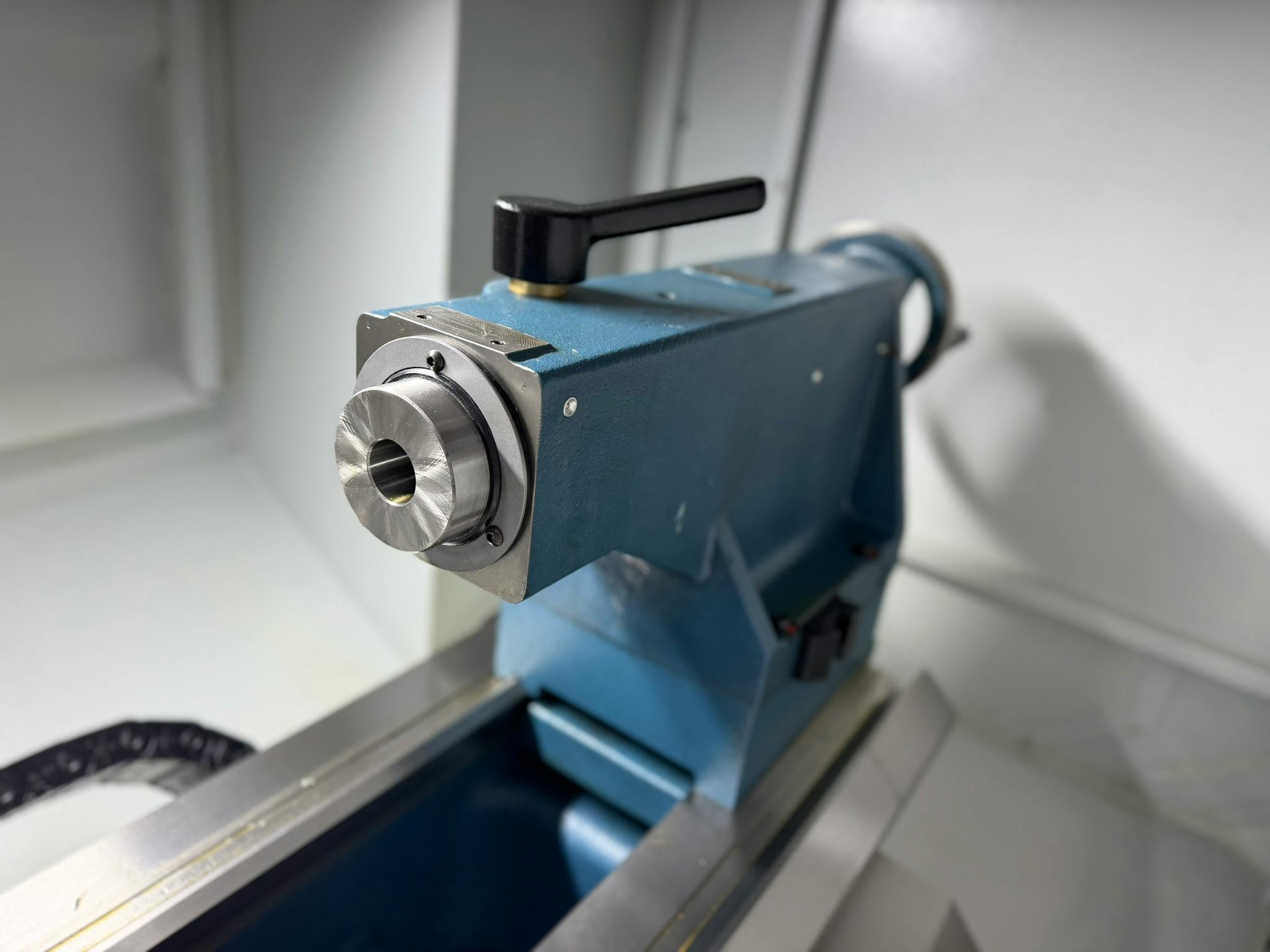

Tailstock
| Technology | Draged |
|---|---|
| Centering device | MK-4 |
Equipment
| Chipmanagement | Chip tray |
|---|---|
| Coolant supply | Coolant pump 7 bar |
*) Insofar as prices are stated, they are always understood to be exclusive of applicable VAT and without services, unless otherwise indicated. Offer valid only while stocks last; subject to prior sale and to errors in technical data.
