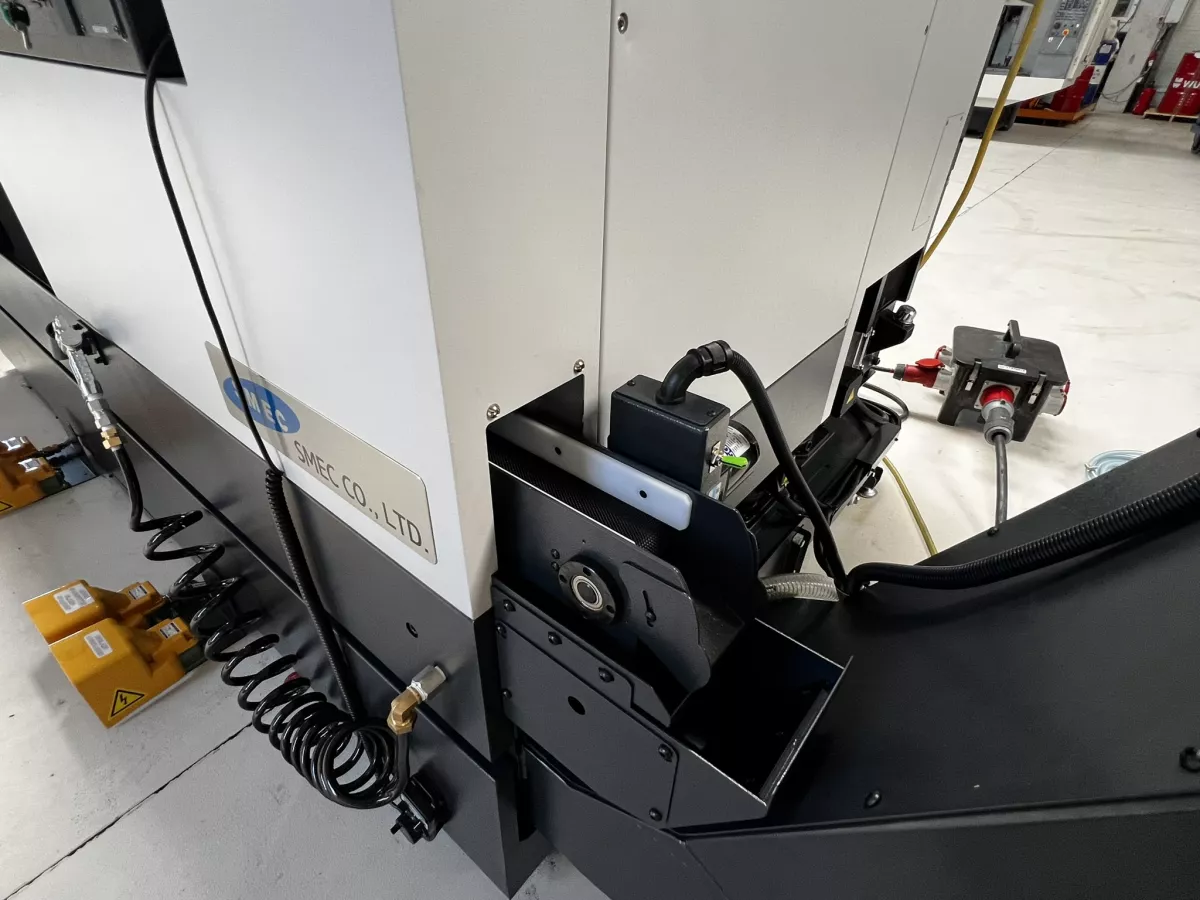

  • Smec NS 2100BSY - Year of manuf.: 2022 Picture-1

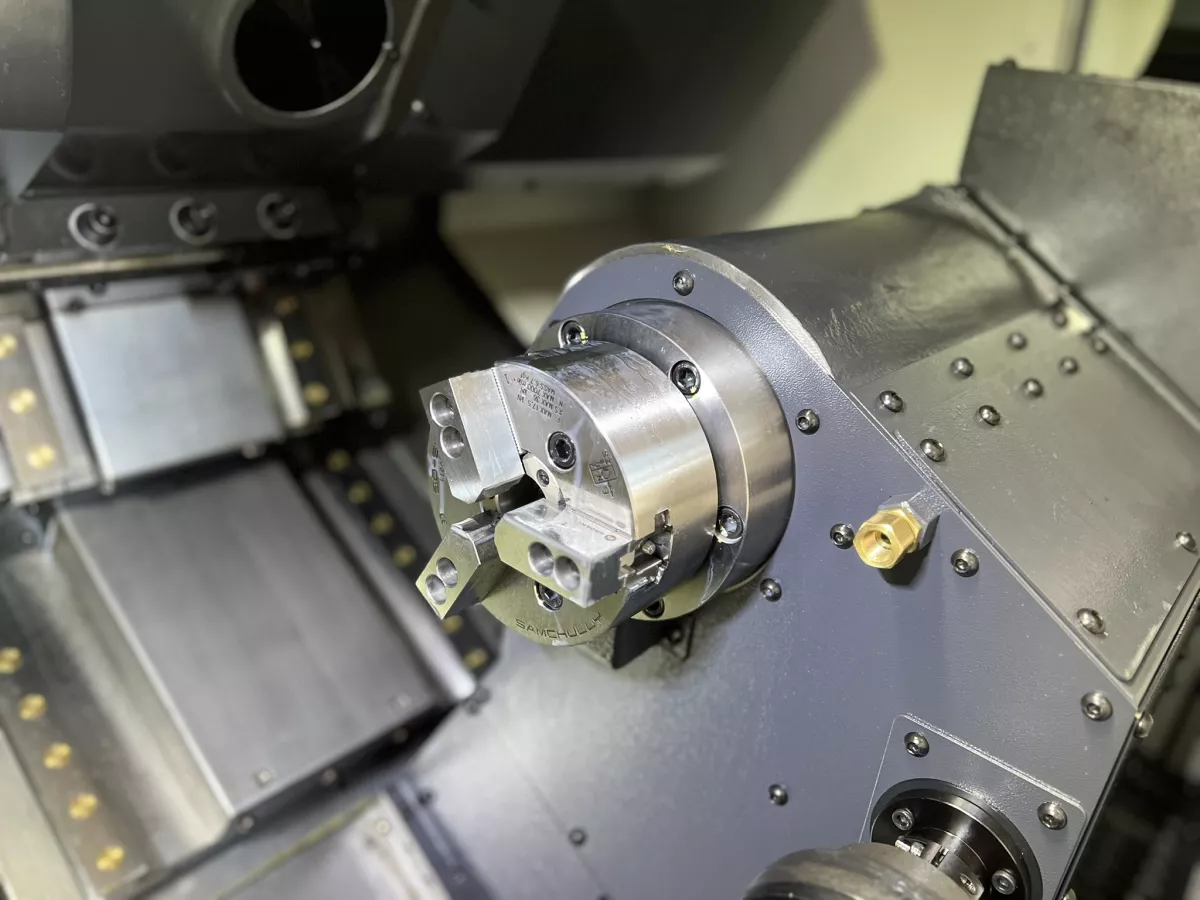

  • Smec NS 2100BSY - Year of manuf.: 2022 Picture-2

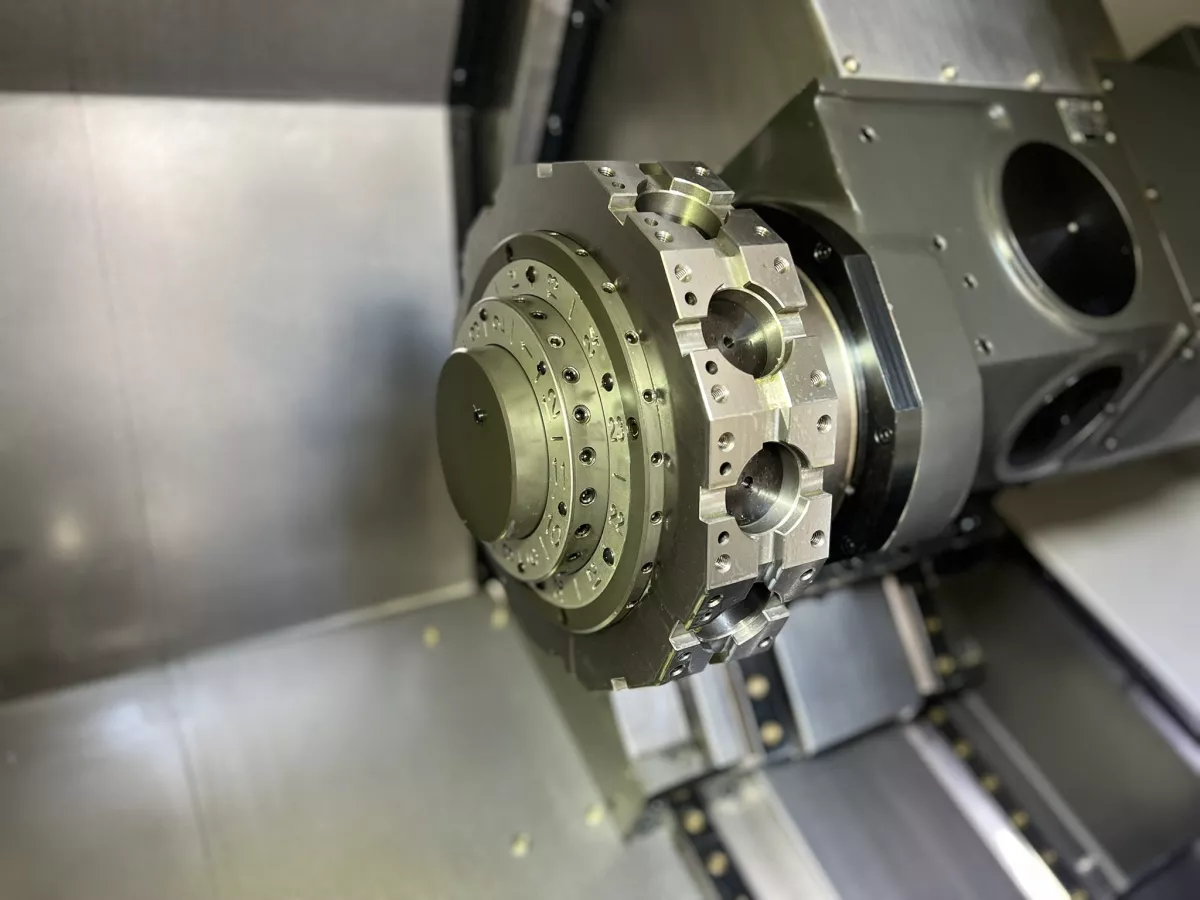

  • Smec NS 2100BSY - Year of manuf.: 2022 Picture-3

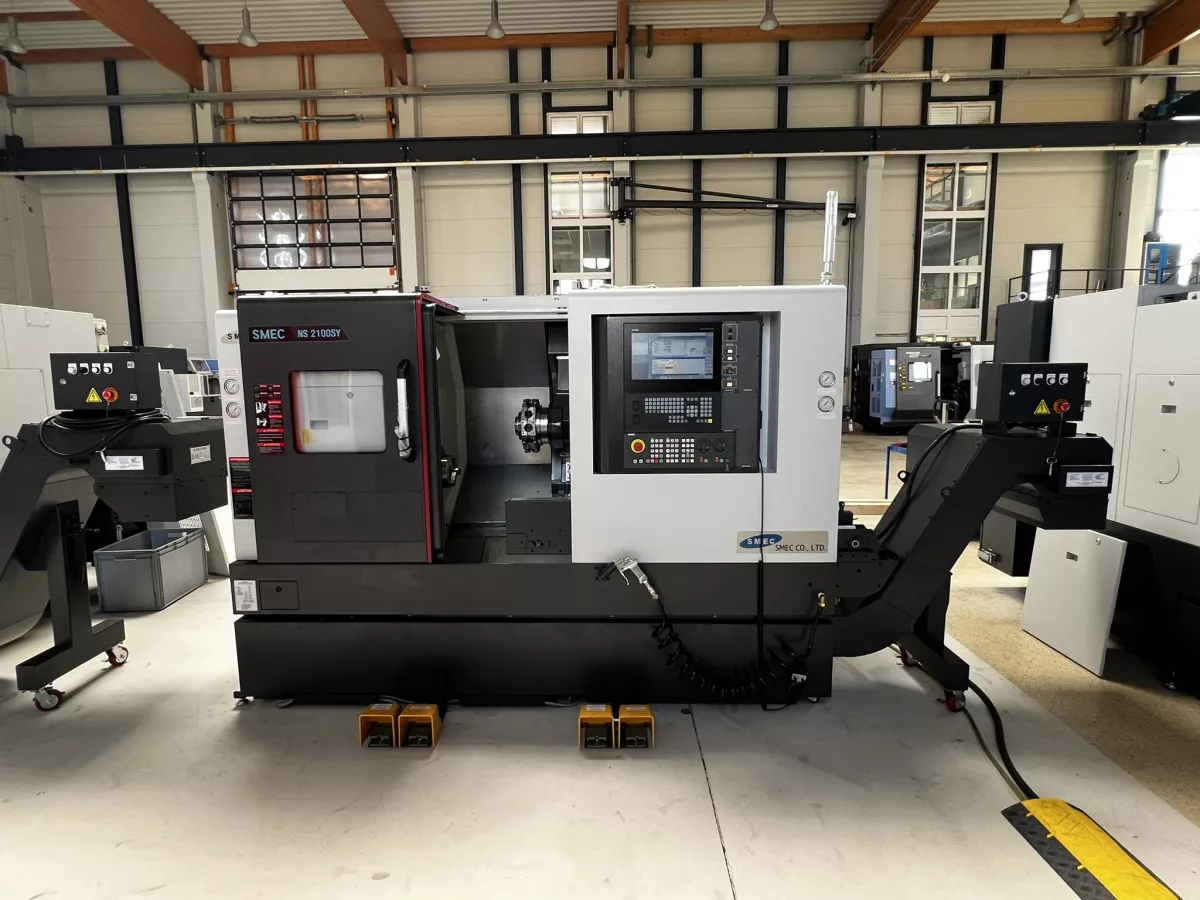

  • Smec NS 2100BSY - Year of manuf.: 2022 Picture-4

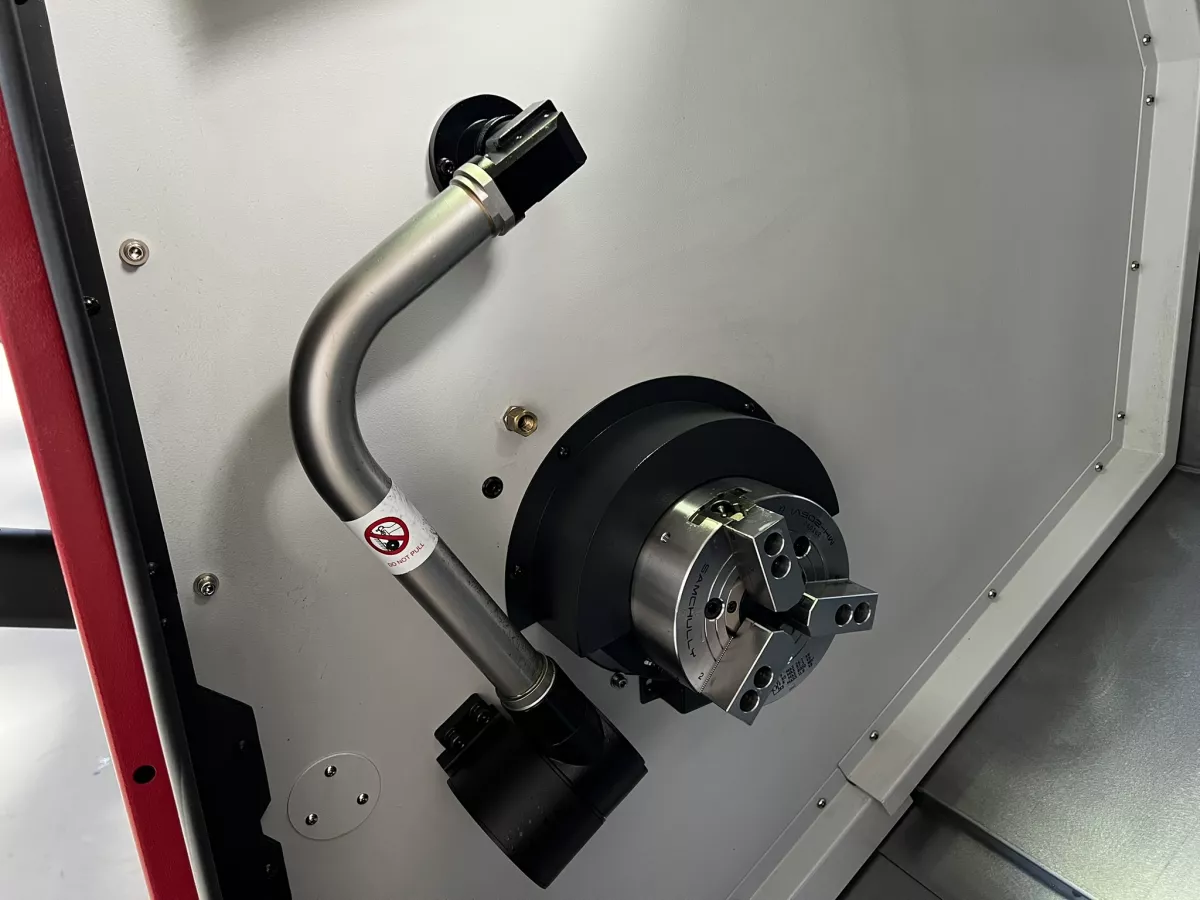

  • Smec NS 2100BSY - Year of manuf.: 2022 Picture-5
  • Smec NS 2100BSY - Year of manuf.: 2022 Picture-6

    • Smec NS 2100BSY

    CNC lathe (DEMO MACHINE)

    SMEC NS 2100BSY - Precision Turning Center with Enhanced Features and Affordability

    The SMEC NS 2100BSY sets a new standard in turning centers, offering advanced features, exceptional performance, and remarkable affordability. Engineered with powered tools, a Y-axis, and a sub-spindle, this machine delivers versatility and efficiency for a wide range of machining applications. With the option to retrofit a bar feeder and its inherent stability, it presents an outstanding value proposition with a superior price-performance ratio.

    Product code 90-000899ZY
    Manufacturer Smec
    ModelNS 2100BSY
    TypeCNC lathe
    ConditionDEMO MACHINE
    ControlFanuc 0i-TF-Plus
    Year of manuf.2022
    Availability:immediately


    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Turning diameter 378 mm
    Turning length 489 mm
    Chuck diameter 210 mm
    Bar passage max. 68 mm
    Power max. 18.5 kW
    Torque max. 209.5 Nm
    Speed 4,500 rpm
    Chuck diameter 135 mm
    Bar passage max. 36 mm
    Power max. 11 kW
    Torque max. 40.4 Nm
    Speed 6,000 rpm
    Slots 12-slot tool turret
    Tool holder BMT-55
    Technolgy 24-slot indexing
    Chip conveyorCoolant managementTool measurement

    Equipment

    • Subspindel
    • Preparation bar loader
    • Chip conveyor
    • Coolant supply
    • Parts catcher
    • tool holder package
    • Tool measurement
