Chiron FZ 15 S five axis

  1. Machines
  2. Milling machines
  3. Chiron FZ 15 S five axis

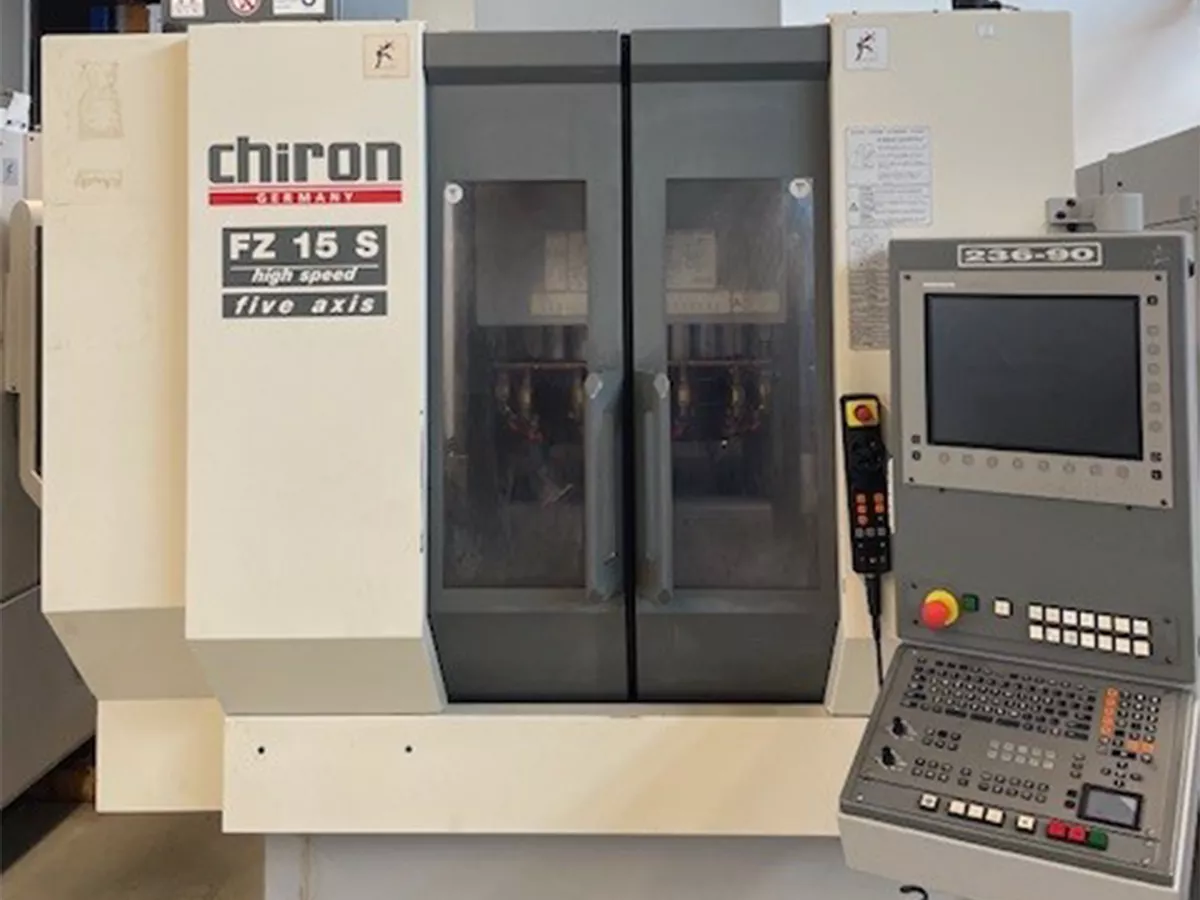

  • Chiron FZ 15 S five axis - Year of manuf.: 2007 Picture-1
  • Please accept marketing-cookies to watch this video.

    • Chiron FZ 15 S five axis

    5-Axis machining center (Used machine)


    Product code94-000033
    Manufacturer Chiron
    ModelFZ 15 S five axis
    Type5-Axis machining center
    ConditionUsed machine
    ControlHeidenhain iTNC530
    Year of manuf.2007
    Availability:immediately


    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Speed 12,000 rpm
    Power 28 kW
    Torque 180 Nm
    Taper SK 40
    Tool magazine 20 Stations
    Movement X 550 mm
    Movement Y 400 mm
    Movement Z 425 mm
    Type 2-Axis Swivel Unit
    Faceplate 280 mm
    Chip Management Chip Conveyor – Scraper Belt
    Workpiece Measurement Blum TS230 Measuring Probe
    Coolant Supply 30-bar Coolant System

    Equipment

    • Chip conveyor
    • Coolant supply
    • Oilmistextraction
    • Elect. handwheel
    • Workpiece measurement
