| Product code | 92-000379 |
|---|---|
| Manufacturer | Chiron |

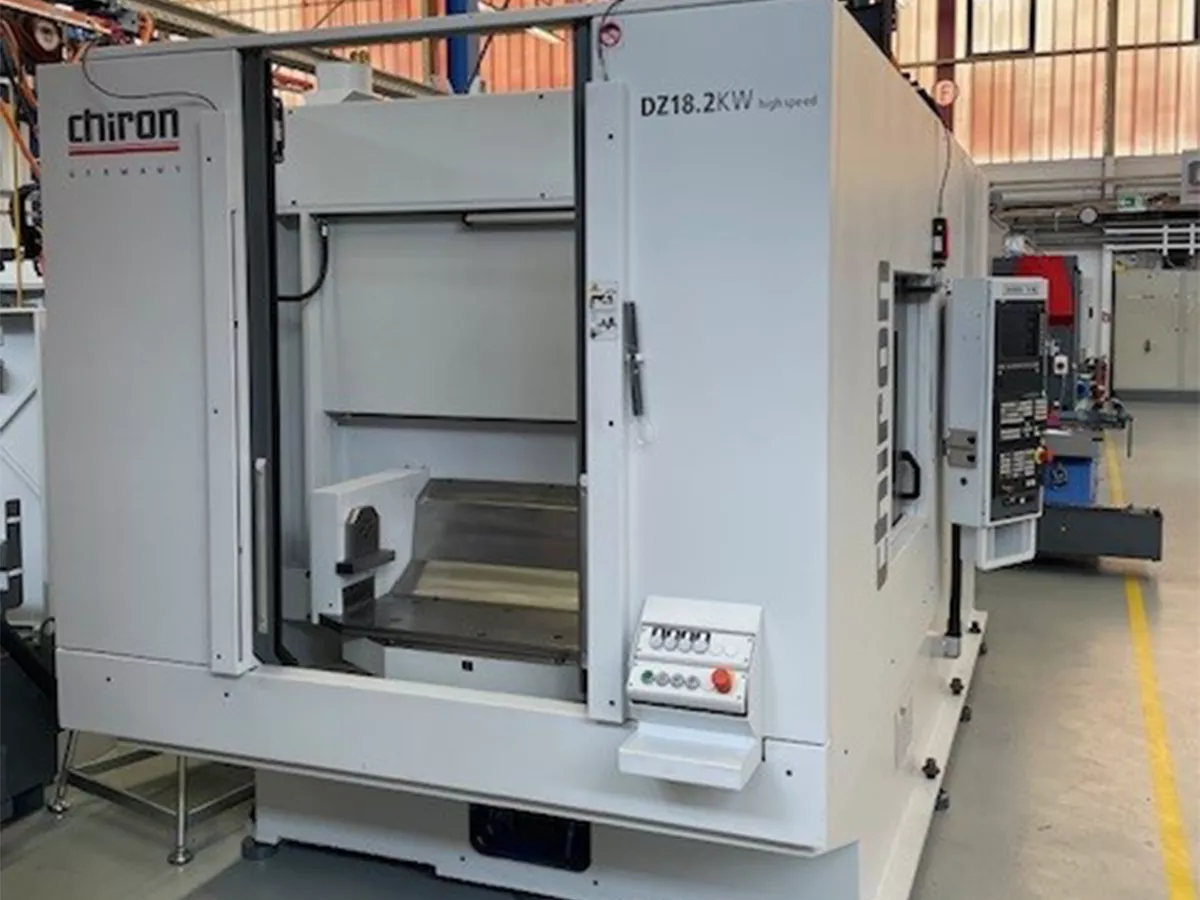

| Model | DZ 18 W |
| Type | 3-axis machining center |
| Condition | Used machine |
| Control | Siemens 840 Dsl |
| Year of manuf. | Retrofit |
| Availability: | immediately |
Technical Data
| Speed | 10,500 rpm |
|---|---|
| Power | max. 9.5 kW |
| Quantity of spindles | 2 |
| Spindle distance | 320mm |
| Taper | HSK-A63 |
| Technology | Tool changer 2 pcs. |
|---|---|
| Quantity of tools | max. 2 x 12 pcs. |
| Clamping surface | 2x 850 x 470 mm |
| Travels X | 400 mm |
|---|---|
| Travels Y | 400 mm |
| Travels Z | 630 mm |
| Chip to chip time | 2,4 sec |
| Rapid traverse X/Y/Z | 30 m/min |
| Chip management | Chip conveyor |
|---|---|
| Coolant management | Inner coolant supply 30 bar |
| Tool measurement | Laser |
Equipment
- Chip conveyor
- Coolant supply
- spindle cooling
- high pressure coolant
