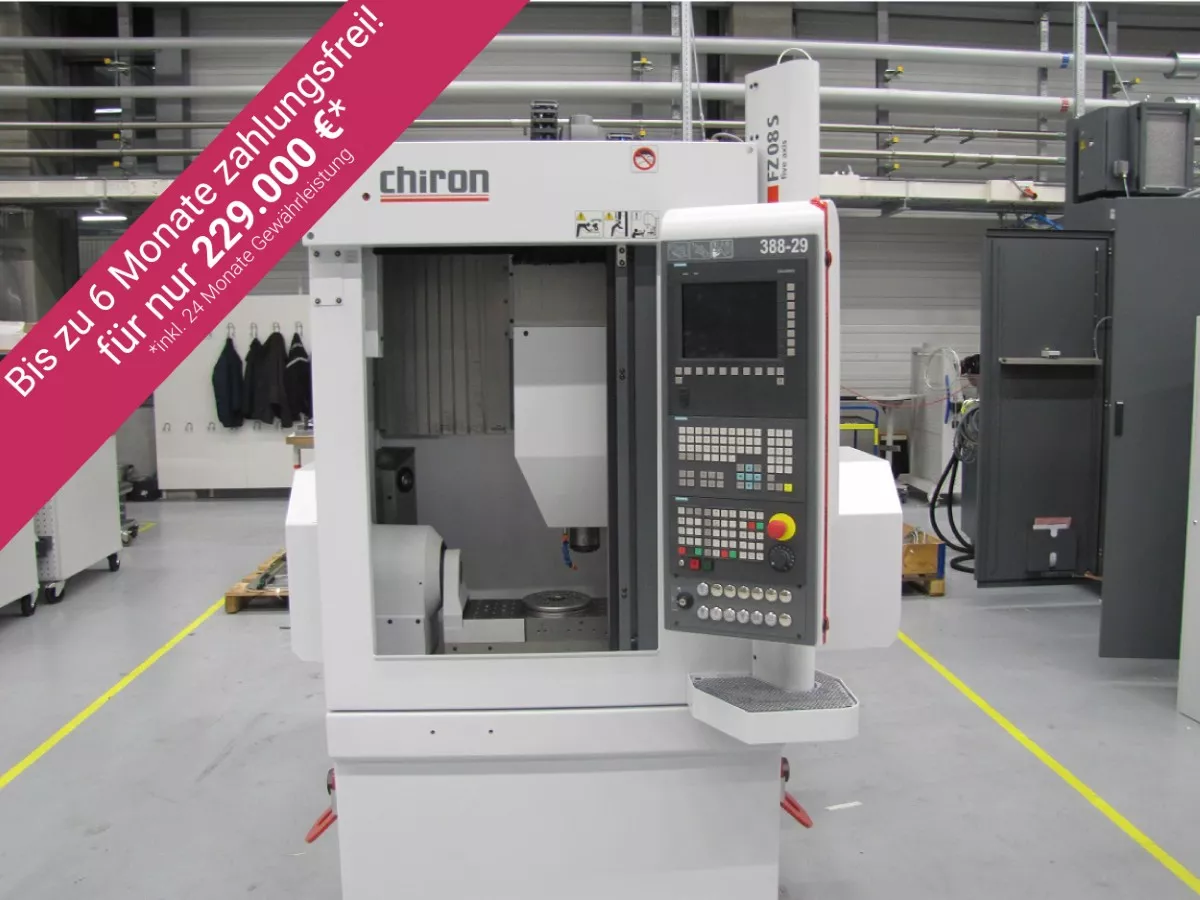

    • Chiron FZ 08 S five axis

    5-Axis machining center (New machine)

    The machining center FZ 08 S five axis baseline is one of the most versatile machine tools in the compact class. Your benefit in a compact space: CNC cutting at low unit costs at high processing quality and unique speed.

    Product code92-000307
    Manufacturer Chiron
    ModelFZ 08 S five axis
    Type5-Axis machining center
    ConditionNew machine
    ControlSiemens 840 Dsl
    Year of manuf.2024


    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Speed 15,000 rpm
    Power 7.3 kW
    Taper HSK-A 40
    Tool magazine 40 Stations
    swivel angle +/- 120°
    System accuracy +/- 5''
    Technology Torque-motor
    Speed 100 rpm/min
    Clamping surface 198 mm
    System accuracy +/- 5''
    Technology Torque-motor
    Speed 200 rpm/min
    Rapid traverse (X/Y/Z) 75 m/min

    Equipment

    • Chip conveyor
    • Coolant supply
    • Paperbeltfilter
    • Linear scale
    • 5-axis simultaneous
    • Tool measurement
    • high pressure coolant
