Chiron DZ 15 W

  1. Machines
  2. Milling machines
  3. Chiron DZ 15 W

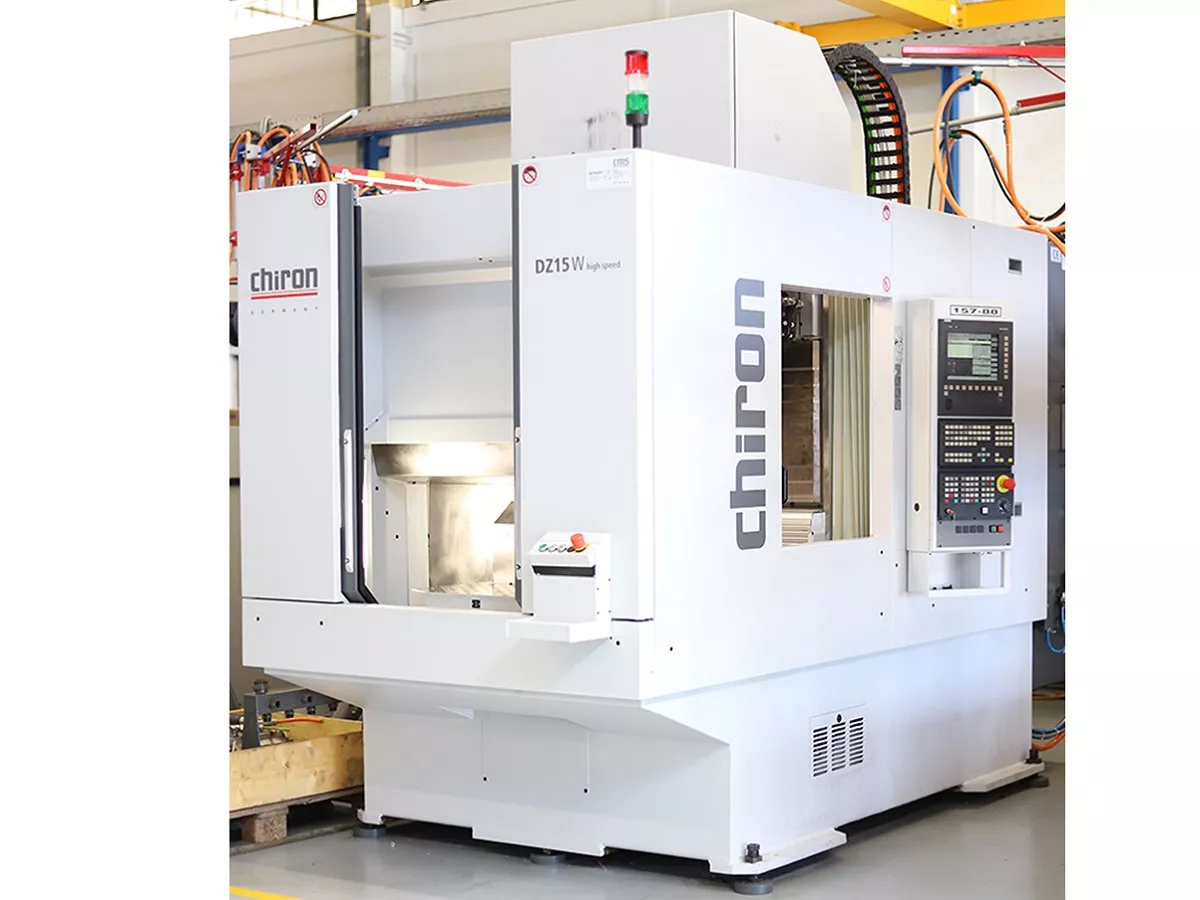

  • Chiron DZ 15 W - Year of manuf.: Retrofit Picture-1

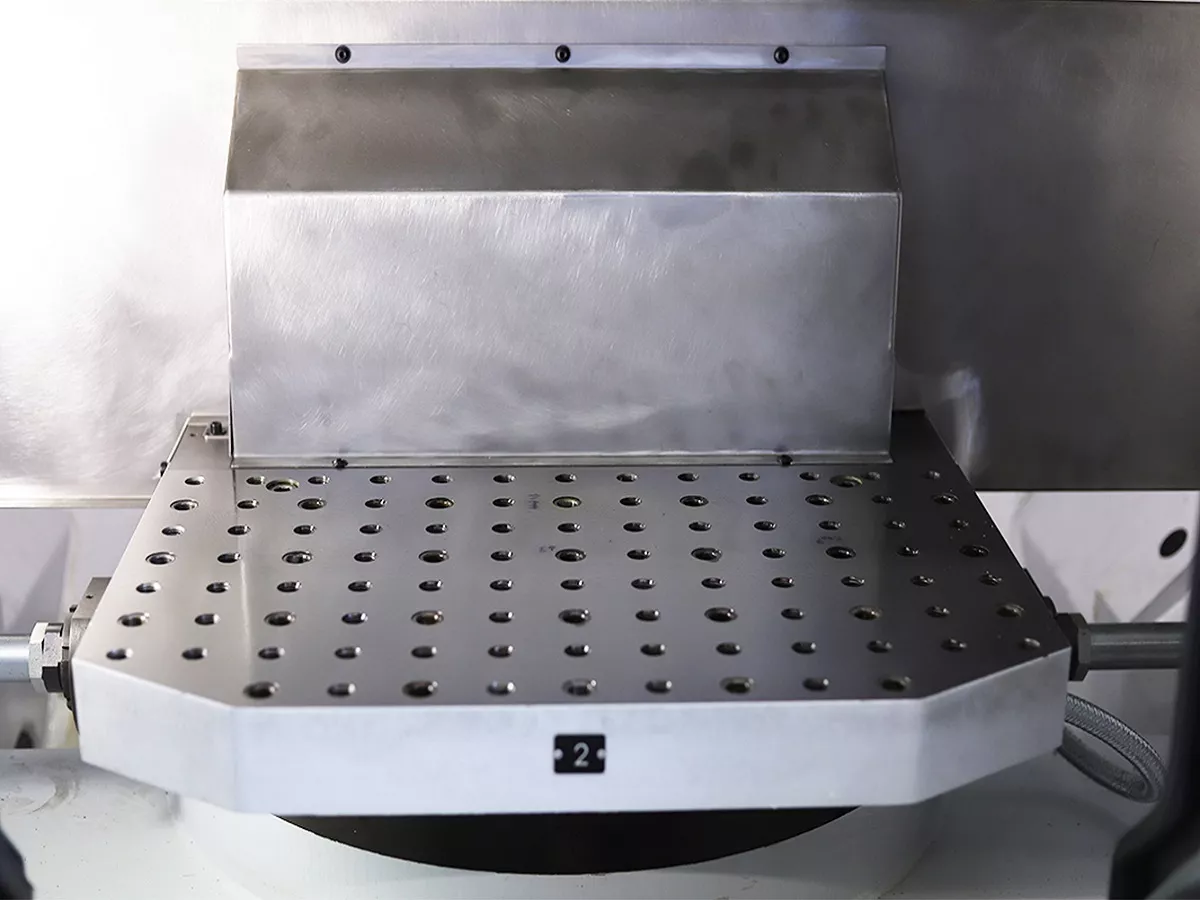

  • Chiron DZ 15 W - Year of manuf.: Retrofit Picture-2

    • Chiron DZ 15 W

    3-axis machining center (Used machine)


    Product code94-000031
    Manufacturer Chiron
    ModelDZ 15 W
    Type3-axis machining center
    ConditionUsed machine
    ControlSiemens 840 D
    Year of manuf.Retrofit


    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Year of Manufacture 2002
    Retrofit Completely overhauled
    X-axis travel 300 mm
    Y-axis travel 400 mm
    Z-axis travel 425 mm
    Speed 12,000 rpm
    Power max. 14 kW
    Quantity of spindles 2 pcs.
    Spindle distance 250 mm
    Taper HSK-A63
    Quantity of tools max. 2 x 12
    Chip-to-chip-time 2.1 sec
    Technology Chiron cage
    Clamping surface 660 x 440 mm
    Chip management Skraper belt
    Coolant supply Inner coolant supply 30 bar
    Cooling Internal spindle cooling

    Equipment

    • Coolant supply
    • spindle cooling
    • high pressure coolant
