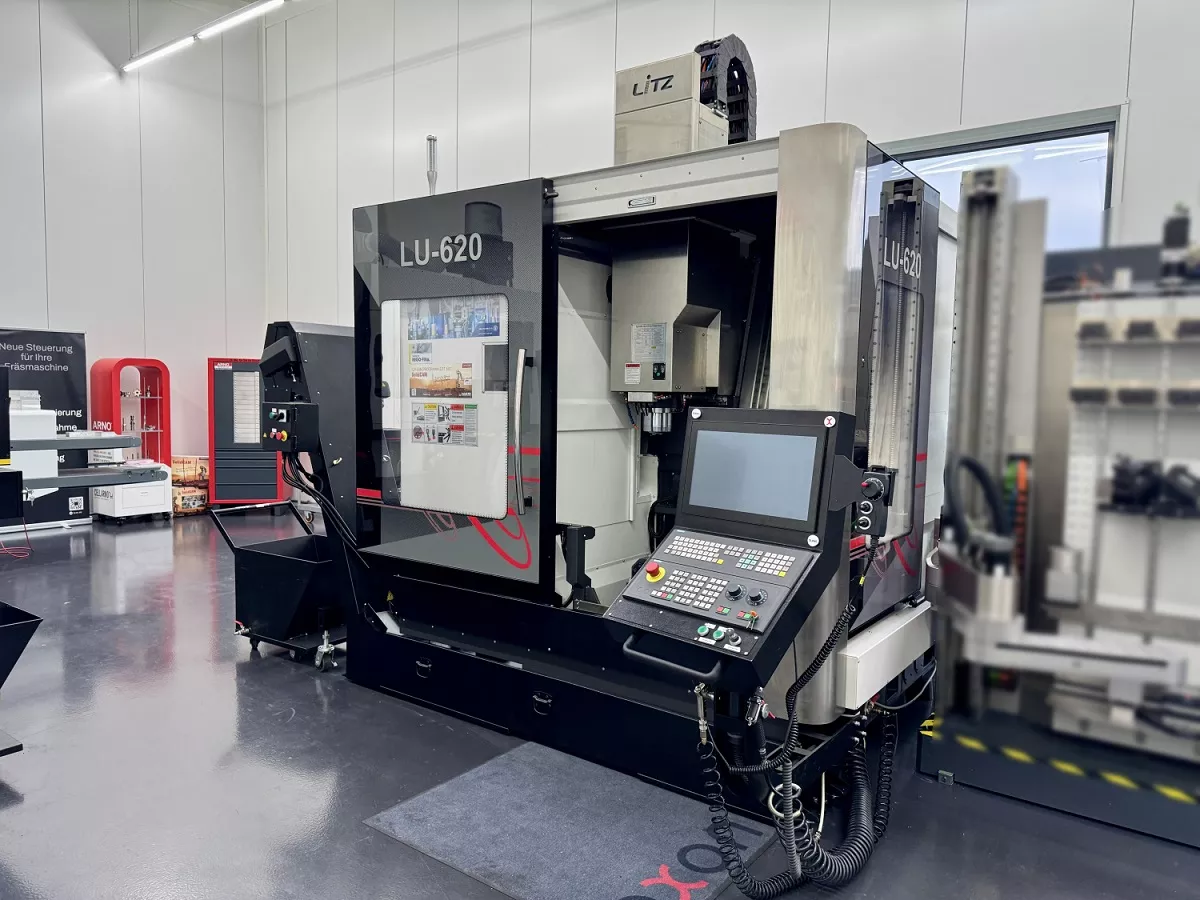

Axon LU-620

5-Axis machining center (Used machine)

The AXON LU 620 is a highly precise 5-axis machining center, specifically designed for demanding and complex machining tasks. Equipped with a 60-tool changer and the advanced Heidenhain TNC 640 control system, it enables simultaneous 5-axis machining, making it ideal for intricate geometries and challenging manufacturing requirements.

Thanks to integrated linear scales on all axes, the AXON LU 620 offers exceptional positioning and repeat accuracy, making it the perfect choice for automated production processes. AXON also ensures outstanding service and comprehensive spare parts availability, guaranteeing high uptime and a long service life for the machining center. This model meets the highest standards for precision, efficiency, and reliability in modern manufacturing.

Product code94-000027
Manufacturer Axon
ModelLU-620
Type5-Axis machining center
ConditionUsed machine

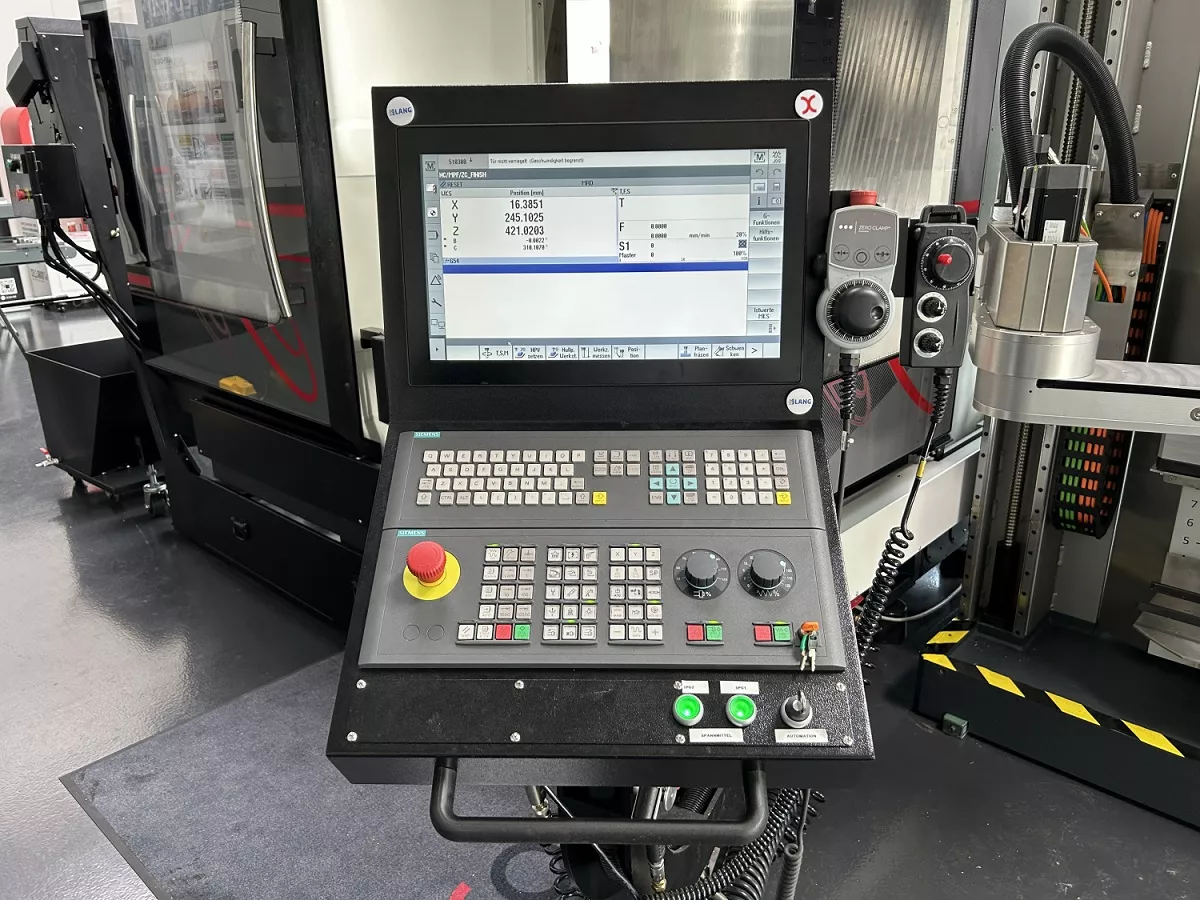

ControlSiemens 840 D
Year of manuf.2023
Availability:immediately



Technical Data

Spindle Direct drive
Speed 15,000 rpm
Power 34 kW
Torque 180 Nm
Taper SK 40
Toolchanger 60 Stations
Movement x 620 mm
Movement Y 520 mm
Movement Z 460 mm

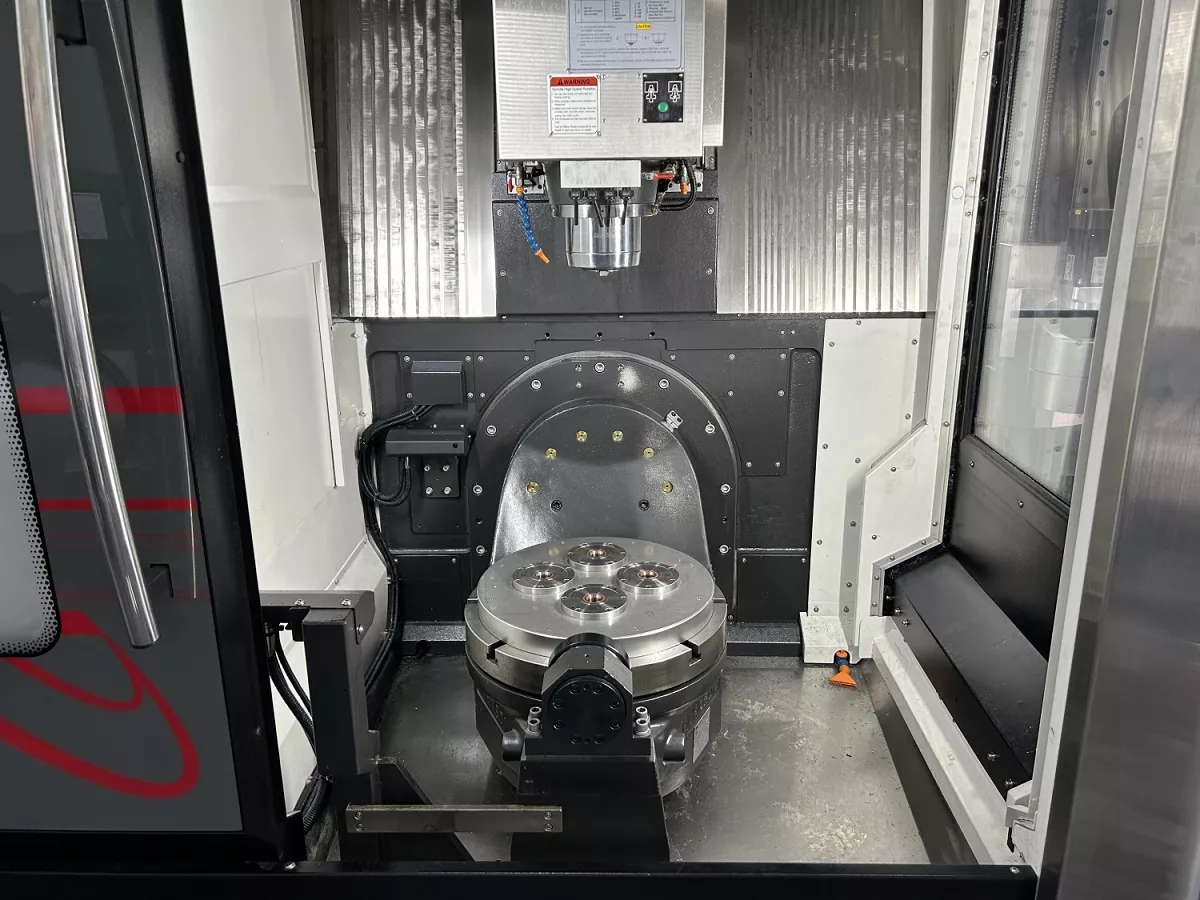

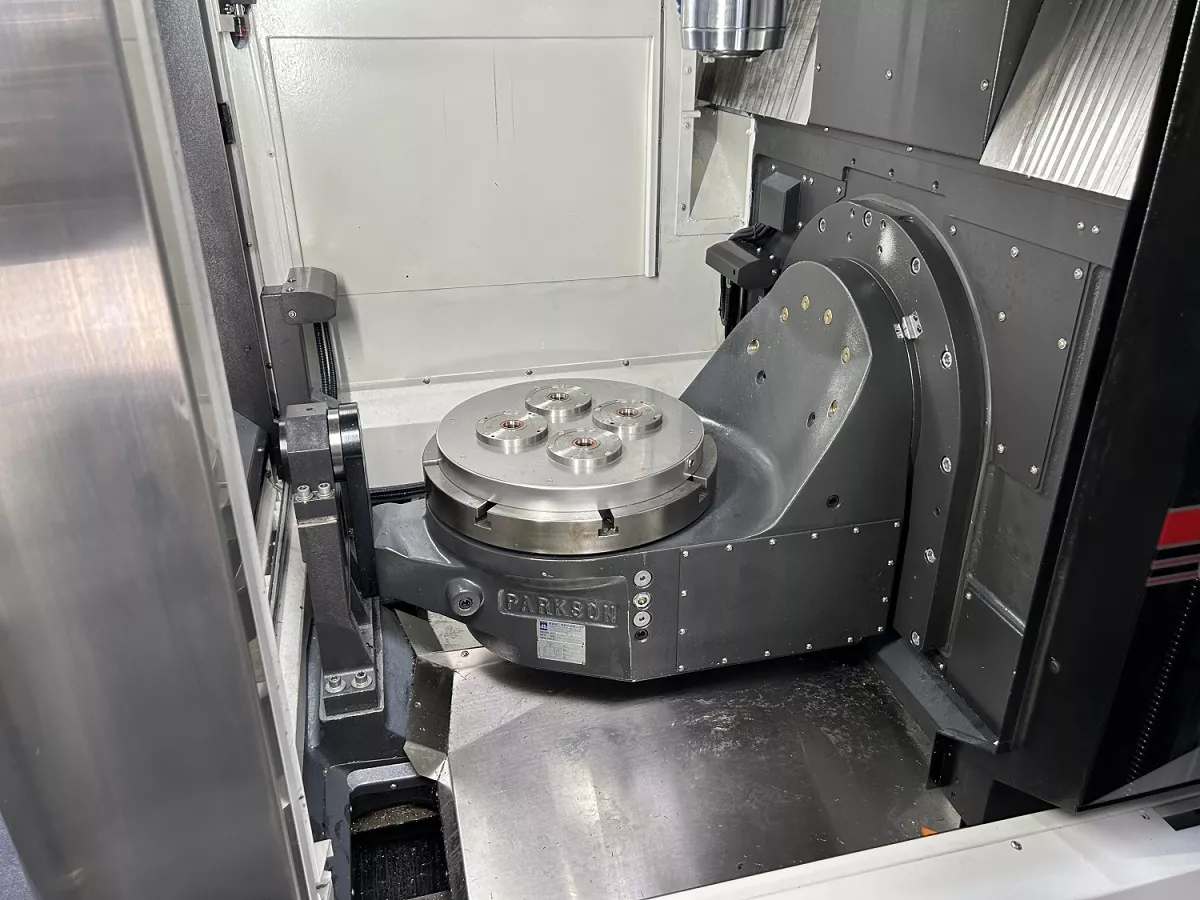

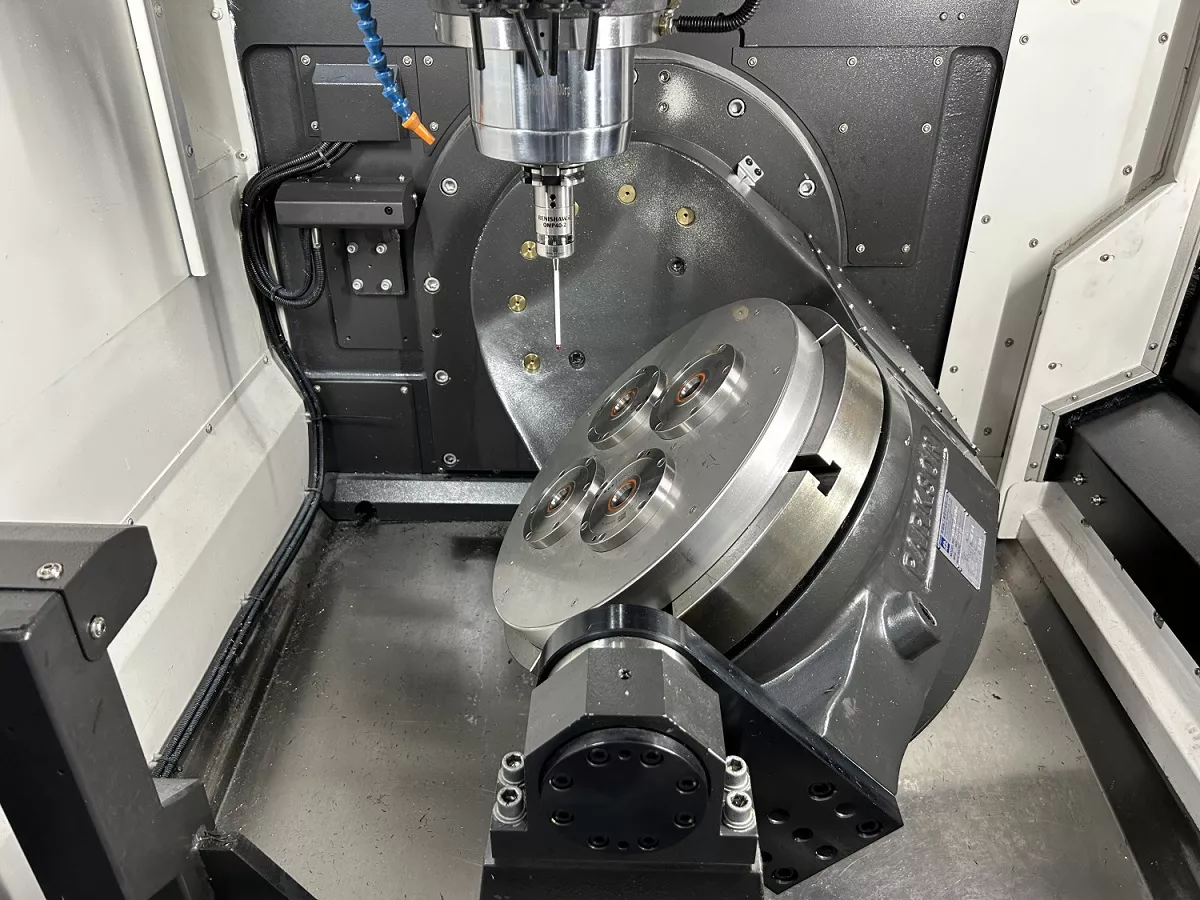

Swivel table D= 500 mm
Table load 300 kg
C-axis resolution 0.001 degree
Rapid traverse X/Y/Z 36 m/min
Speed max. B - Axis 25 rpm
Speed max. C - Axis 25 rpm
Chip Management Chip Conveyor

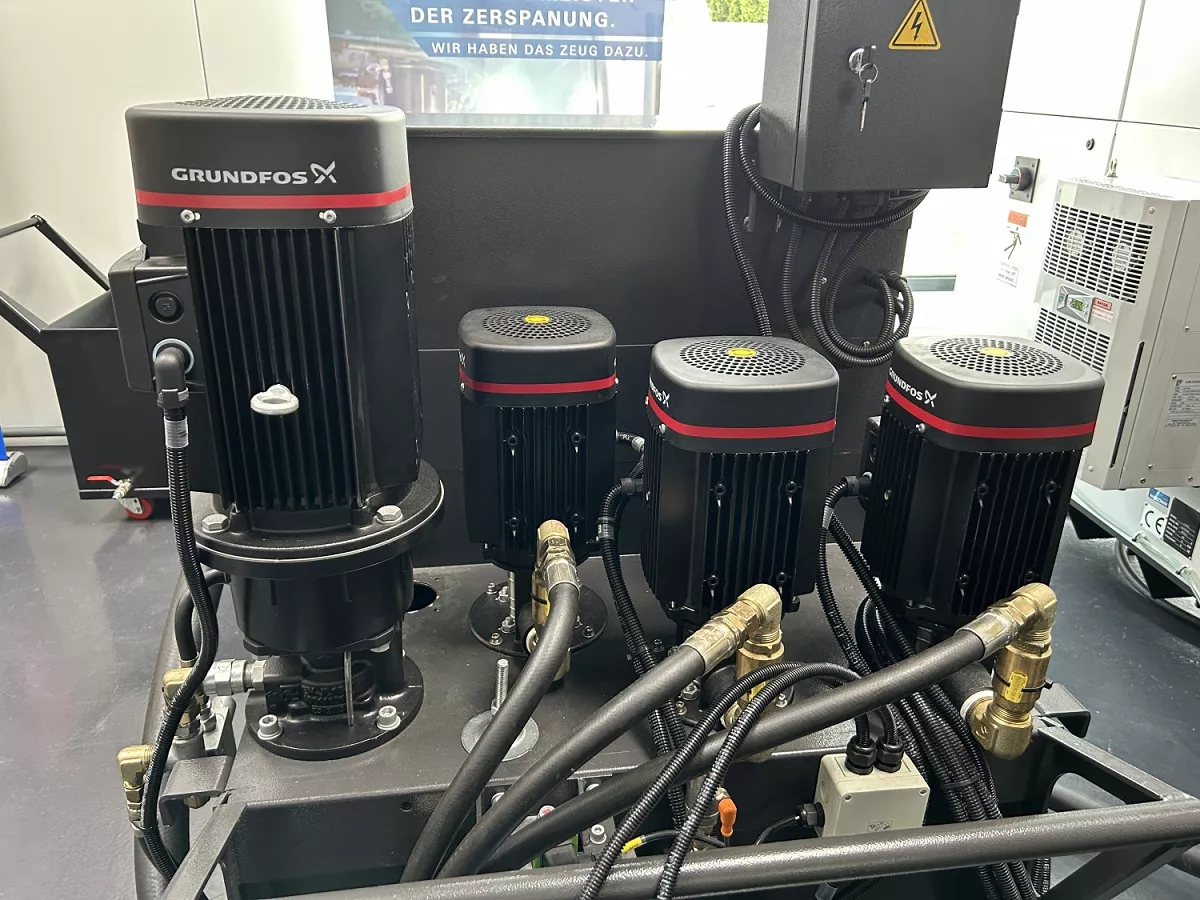

Coolant Tank 500 l, 40 bar

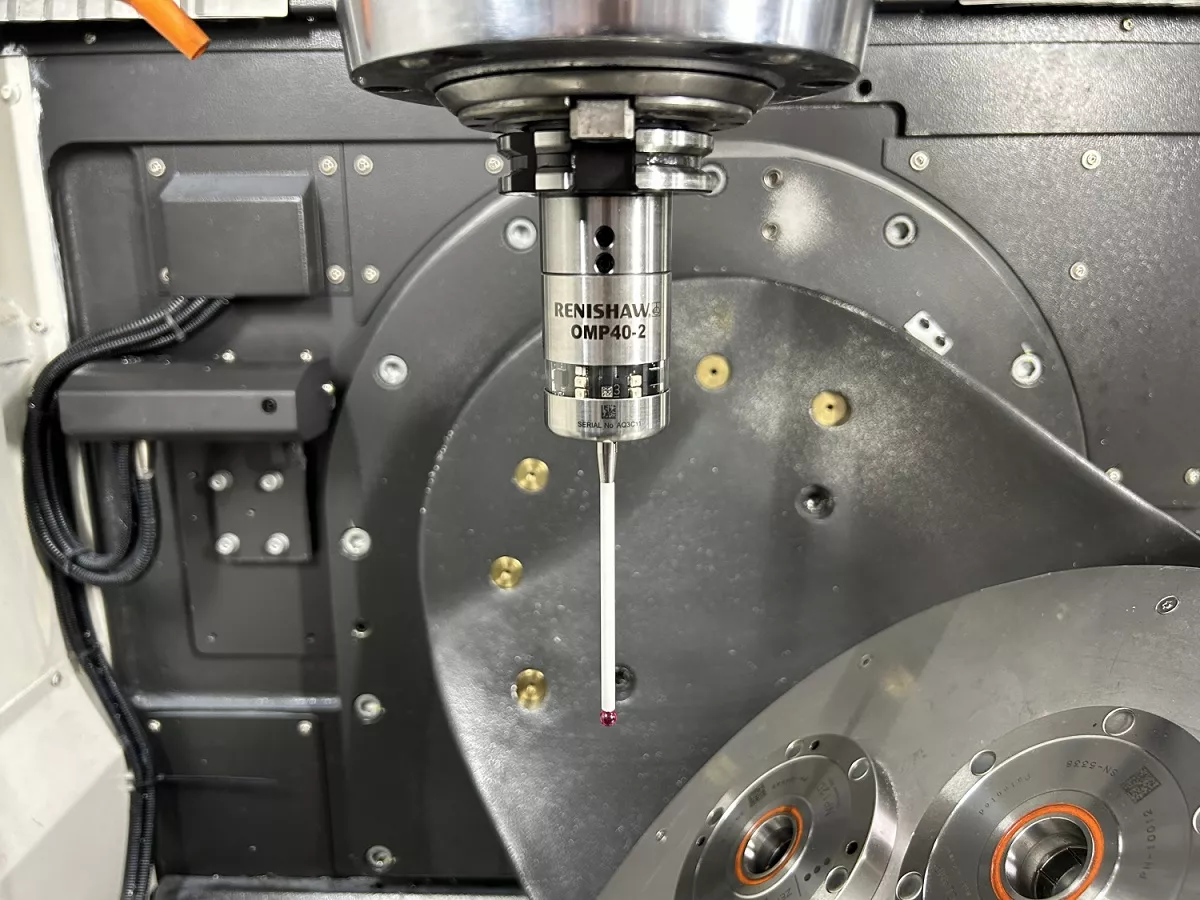

Workpiece Measurement Renishaw OMP 40
Tool Measurement System Blum NT A-3
Kinematic Optimiser Calibration Software and KKH 100 Calibration Sphere
Automation Prepared

Equipment

  • Chip conveyor
  • Coolant supply
  • Linear scale
  • KinematicsOpt
  • Air through spindle
  • Elect. handwheel
  • Workpiece measurement
  • Tool measurement
  • high pressure coolant
