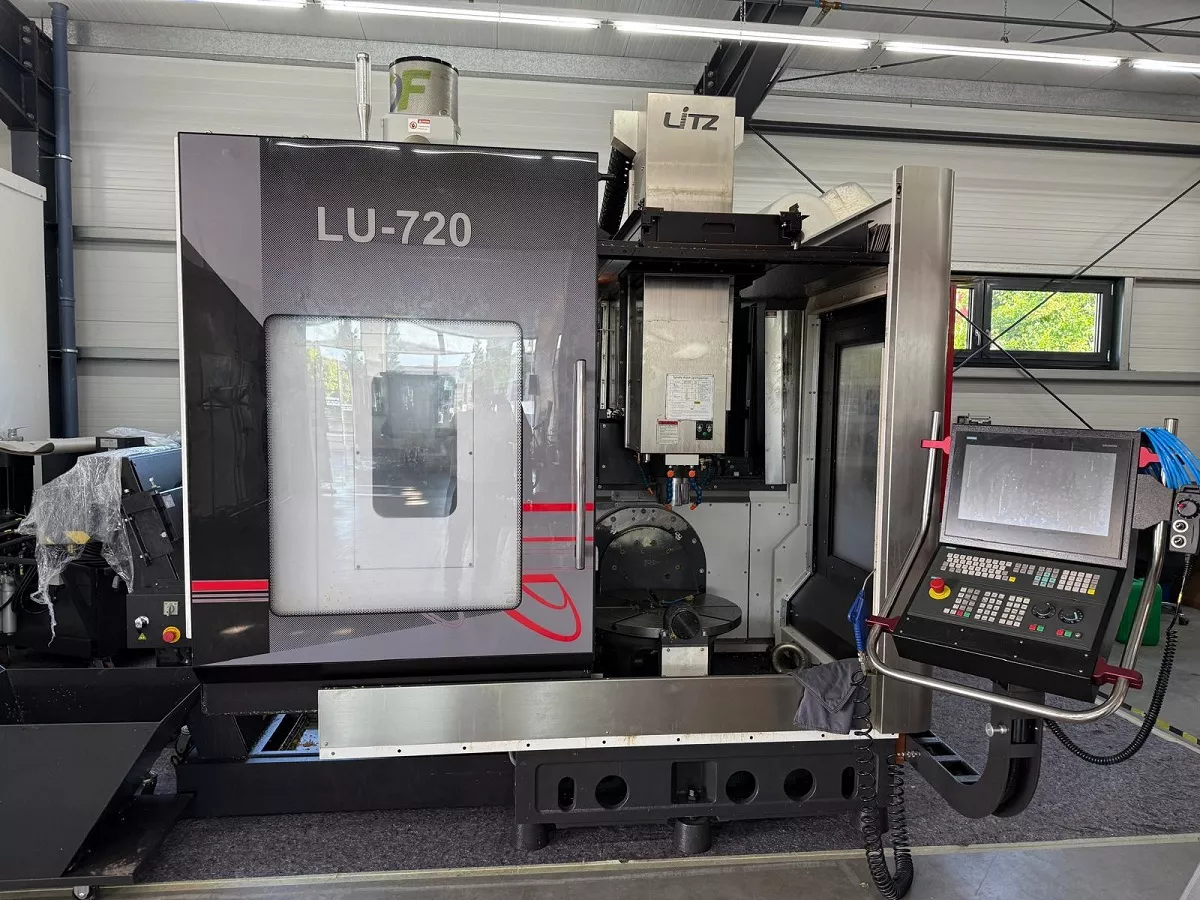

Axon LU-720

5-Axis machining center (Used machine)

The AXON LU-720 is a highly versatile and precise machining center, making it an ideal choice for sectors that demand the utmost in accuracy and efficiency, such as aerospace, medical technology, and automotive manufacturing. It stands out for its exceptional flexibility, seamlessly integrating into various production environments, whether for crafting intricate individual components or managing large-scale series production.

Designed with a keen focus on automation integration, the LU-720 is perfectly suited to be part of an automated manufacturing line. This capability not only streamlines the production process but also significantly boosts productivity, aligning perfectly with the needs of modern, fast-paced manufacturing settings.

Precision is at the heart of the LU-720's design. It meets the exacting standards required in industries where the slightest discrepancy can have far-reaching consequences. This machine consistently produces high-quality components with meticulous accuracy, making it a reliable choice for manufacturers who prioritize precision above all else.

In addition to its technical prowess, the LU-720 is also noted for its outstanding price-performance ratio. It offers advanced features and capabilities at a competitive price, marking it as a cost-effective solution for a broad range of manufacturing applications.

In summary, the AXON LU-720 is a synthesis of advanced technology, flexibility, and precision, offering significant value to businesses in high-precision industries. Its ability to adapt to both individual and mass production needs, coupled with its cost-effectiveness, makes it an indispensable tool in the modern manufacturing arena.

Product code92-000590
Manufacturer Axon
ModelLU-720
Type5-Axis machining center
ConditionUsed machine
ControlSiemens 840 D
Year of manuf.2023



Technical Data

Spindle Direct drive
Speed 15,000 rpm
Power 34 kW
Torque 180 Nm
Taper HSK 63
Toolchanger 90 Stations
Movement x 720 mm
Movement Y 600 mm
Movement Z 500 mm
Swivel table D= 700 mm
Table load 350 kg
C-axis resolution 0.001 degree
Rapid traverse X/Y/Z 36 m/min
Speed max. B - Axis 25 rpm
Speed max. C - Axis 25 rpm
Chip management Chip conveyor
Coolant supply Inner coolant supply 40 bar
Workpiece measurement Renishaw OMP 40
Tool measurement BLUM Laserbrรผcke
Software Kinematic Optimiser
Automation prepared

Equipment

  • Chip conveyor
  • Coolant supply
  • Paperbeltfilter
  • Linear scale
  • KinematicsOpt
  • 5-axis simultaneous
  • Elect. handwheel
  • Workpiece measurement
  • Tool measurement
  • high pressure coolant
  • Fume exchanger
