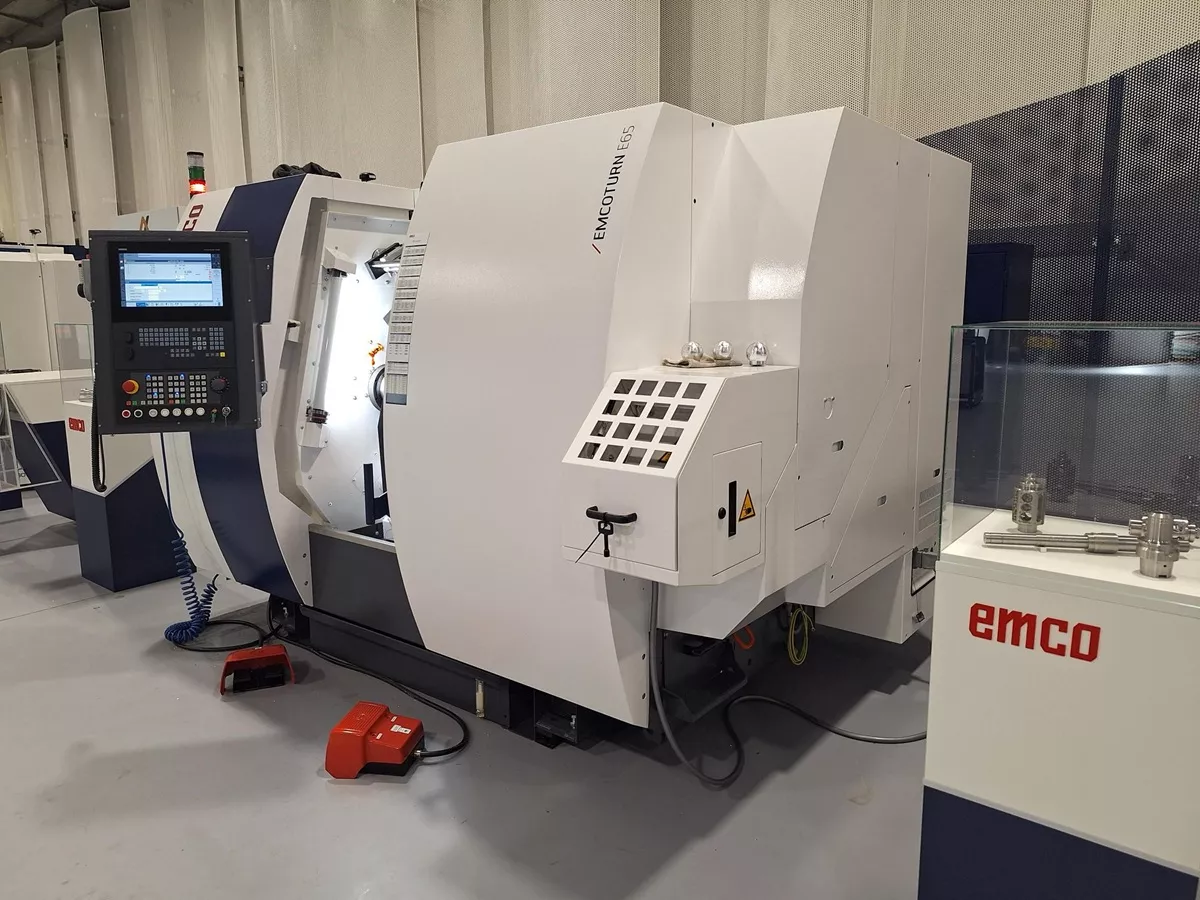

  • EMCO E65 MY - Year of manuf.: 2026 Picture-1

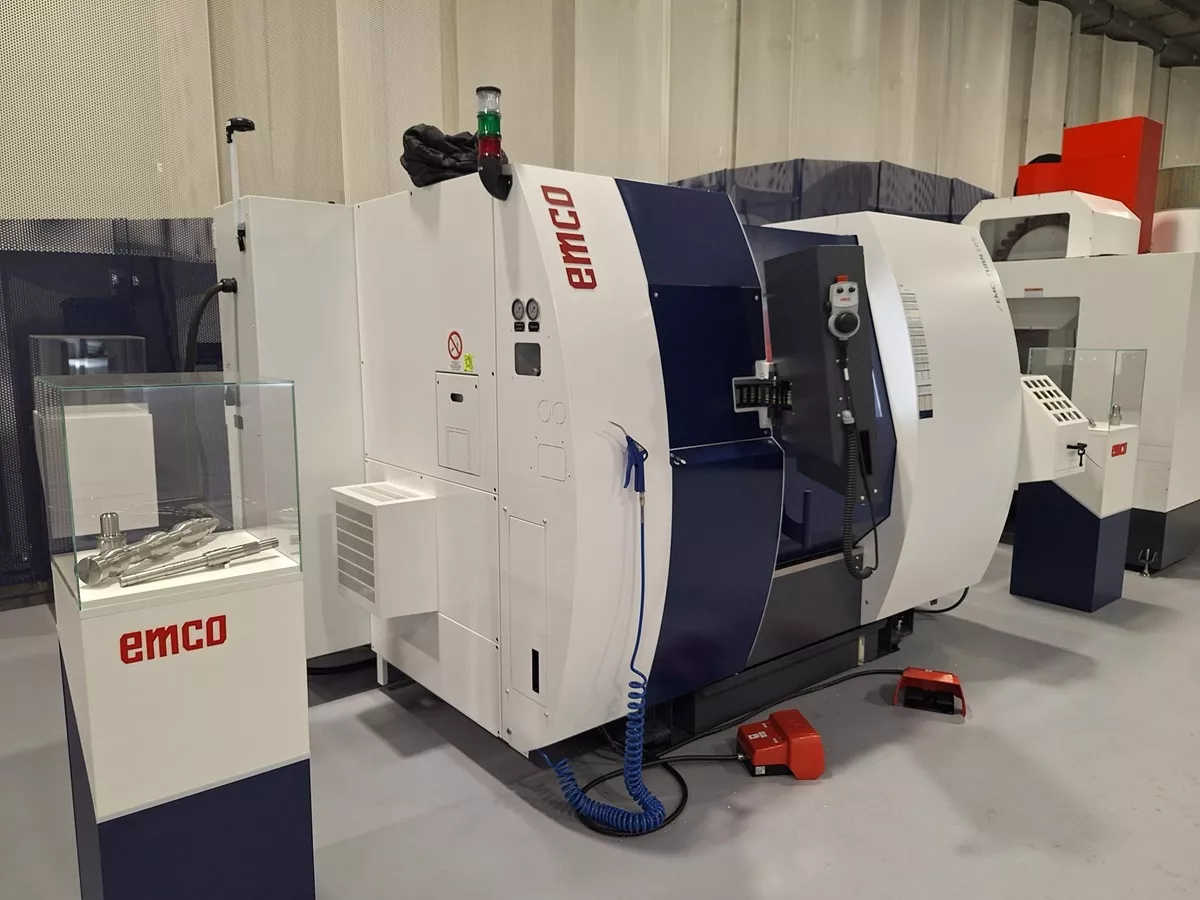

  • EMCO E65 MY - Year of manuf.: 2026 Picture-2

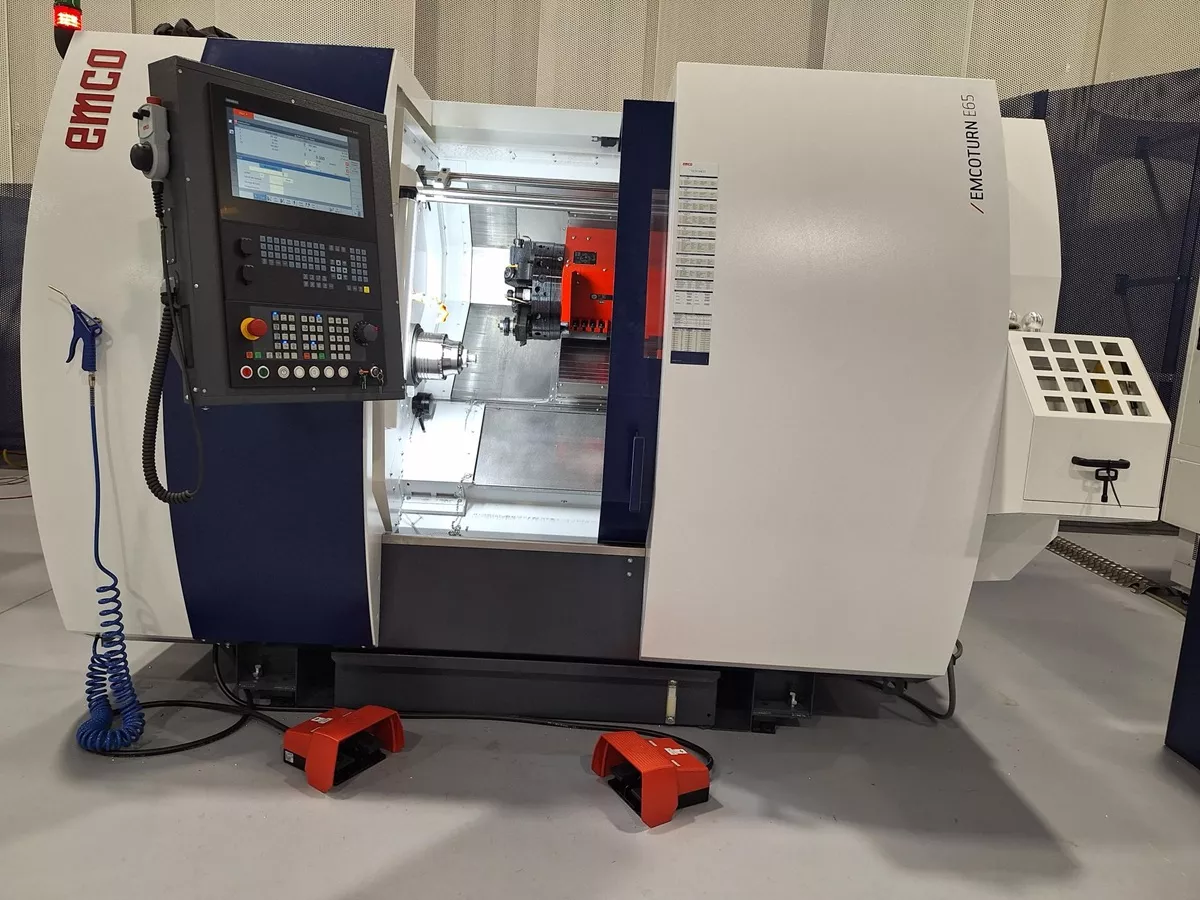

  • EMCO E65 MY - Year of manuf.: 2026 Picture-3

    • EMCO E65 MY

    CNC lathe (DEMO MACHINE)


    Product code94-000040
    Manufacturer EMCO
    ModelE65 MY
    TypeCNC lathe
    ConditionDEMO MACHINE
    ControlSiemens 828
    Year of manuf.2026
    Availability:immediately


    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Speed (max.) 5,000 rpm
    Power (max.) 22 kW
    Torque (max.) 305 Nm
    Bar capacity (max.) 65 mm
    Spindle nose A2-6
    Technology Turret with 12 stations
    Tool holder VDI 30
    Speed driven tools 5,000 U/min
    Power driven tools (max.) 6.7 kW
    Torque (max) 25 Nm
    X-Axis 260 mm
    Z-Axis 610 mm
    Y-Axis +/-40mm
    Coolant supply Coolant system 3.5 bar
    Workholding 3-jaw chuck KFD-HE 210
    Tool probe S6E axial

    Equipment

    • Y-Axis
    • driven tools
    • Coolant supply
    • Linear scale
    • Tailstock (automatic)
    • Parts catcher
    • Elect. handwheel
