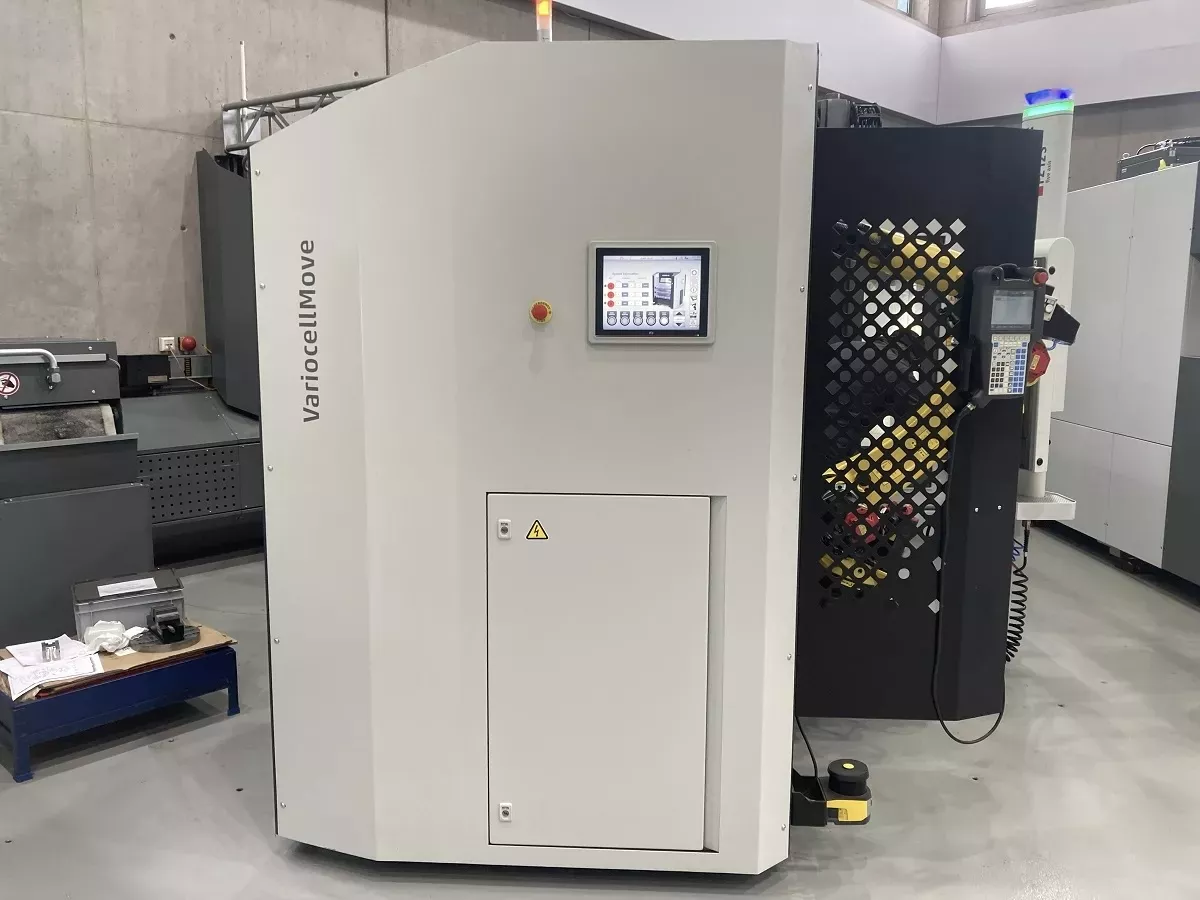

  • Chiron VariocellMove - Year of manuf.: 2023 Picture-2

    • Chiron VariocellMove

    (DEMO MACHINE)

    Universal, automatic loading and unloading system with 6-axis robot and workpiece storage VariocellMove Compact. Requires a minimum of space and can be used in various production centers.
    Unrestricted access to the machine's work or loading area for changeover operations or manual loading thanks to protection using the Safety Laser System.
    Protective casing including 12" color touch control screen
    with intuitive HMI for parameterized workpiece handling and control cabinet.

    Product code92-000513
    Manufacturer Chiron
    ModelVariocellMove
    Type
    ConditionDEMO MACHINE
    ControlFanuc
    Year of manuf.2023

    Sold

    This product has already been sold. You although may send us an inquiry, we would be happy to send you a notice if this or any suitable machine will be available.



    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Type FANUC M-20iD/35
    Capacity 35 kg
    reach max 1,813 mm
    Including interface for quick, manual gripper replacement, prepared for the attachment of a pneumatically operated workpiece gripper, preparation for blow-off device for blowing off the workpiece and clamping device, installed on the robot, including controlled pneumatic connection.
    3-fold workpiece storagedesigned as drawer storagewith 3 drawers 1,100 mm x 570 mm,Prepared to accommodate standard inlays, including 1 set of standard inlays with square mounting openings made of sheet steel.For workpieces with the properties(Ø) 10 mm to (Ø) 250 mm, height max. 120 mm, weight max. 300 kg per drawer.Worker protection via Safety Laser System.

    Equipment

    • Automation / Roboter
