RoboJob Mill-Assist Essential i

  1. Machines
  2. Miscellaneous machines
  3. RoboJob Mill-Assist Essential i

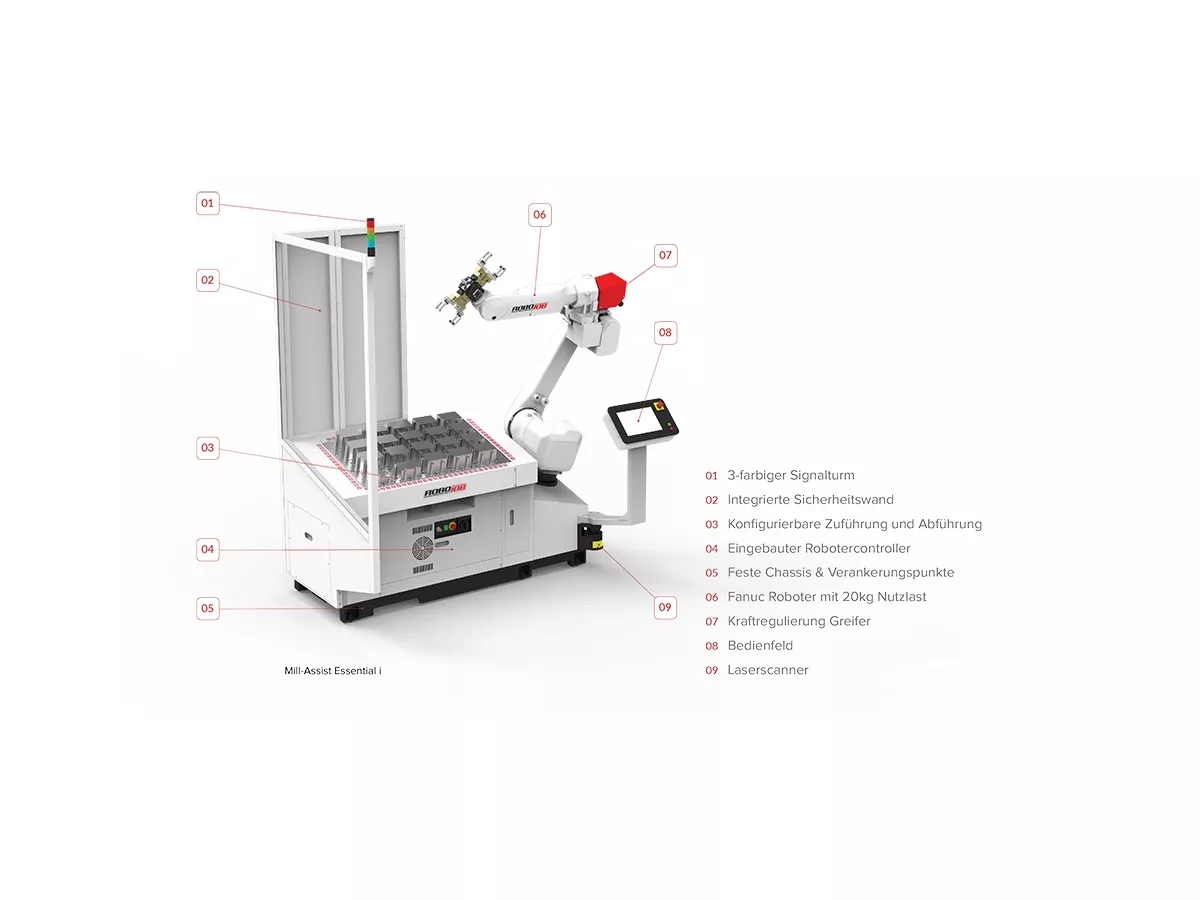

  • RoboJob Mill-Assist Essential i - Year of manuf.: Picture-1
  • RoboJob Mill-Assist Essential i - Year of manuf.: Picture-2

    • RoboJob Mill-Assist Essential i

    Accessories (Accessories new)

    This simple automation system was specially developed for loading and unloading small batches and/or small workpieces in your milling machine.  You have a fixed table that can be configured very quickly for different workpiece dimensions thanks to the patented positioning principle.  You can also position the workpieces via freely definable grid plates, for example for special workpiece shapes.

    Product code150-0001
    Manufacturer RoboJob
    ModelMill-Assist Essential i
    TypeAccessories
    ConditionAccessories new
    ControlSonstige
    Year of manuf.
    Price ¹100.000,00 €


    ...
    Vertrieb CNC Outlet

    Technical datasheet
    Share

    Technical Data

    Minimum length of the workpieces 25 mm
    Maximum length of the workpieces 400 mm
    Minimum width of the side for hexagonal workpieces 25 mm
    Maximum width of the side for hexagonal workpieces 170 mm
    Maximum stacking height 80 – 100 mm
    Maximum stacking weight 600 kg
    Width of the automation 1,902 mm
    Depth of the automation 740 mm
    Height of the automation 2,202 mm
    Total weight of the automation 1,000 kg
    Electrical connection 380 VAC **
    Pneumatic consumption < 100 L / min
    Payload 25 kg / 19 kg net Payload 35 kg / 28 kg net
    Standard
    Protection with laser scanner
    Protection with integrated wall
    Option
    Protection with light barrier
    Protection with separate grid wall
    Protection with separate transparent wall
    Protection with sliding doors

    Equipment
