Hwacheon Hi-TECH 230BL YSMC

  1. Machines
  2. Lathes
  3. Hwacheon Hi-TECH 230BL YSMC

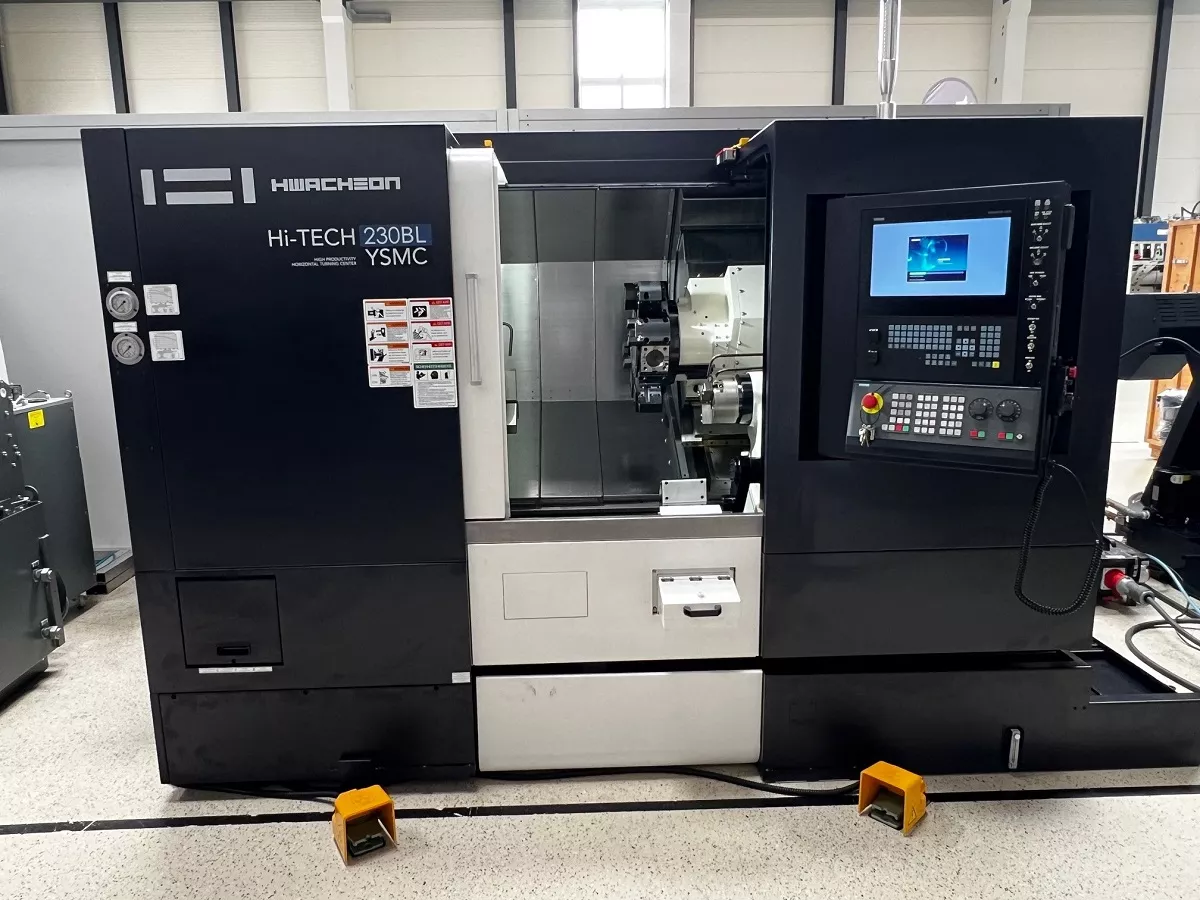

  • Hwacheon Hi-TECH 230BL YSMC - Year of manuf.: 2024 Picture-1

    • Hwacheon Hi-TECH 230BL YSMC

    CNC lathe (New machine)


    Product code92-000583
    Manufacturer Hwacheon
    ModelHi-TECH 230BL YSMC
    TypeCNC lathe
    ConditionNew machine

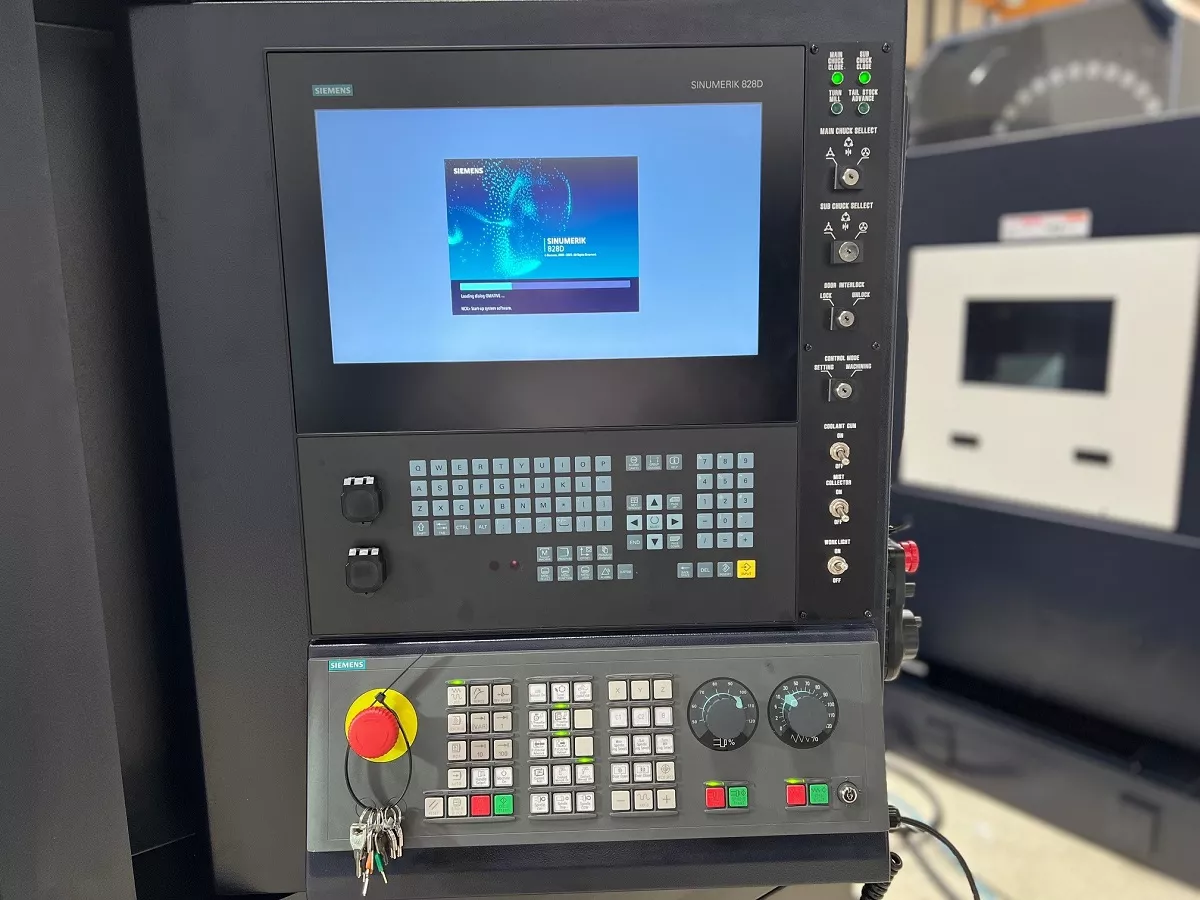

    ControlSiemens 828 D
    Year of manuf.2024


    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Turning diameter 400 mm
    Turning length 560 mm
    Swing diameter 690 mm
    Bar capacity 81 mm
    rapid traverse 30 / 10 / 30 m/min
    Bar capacity 81 mm

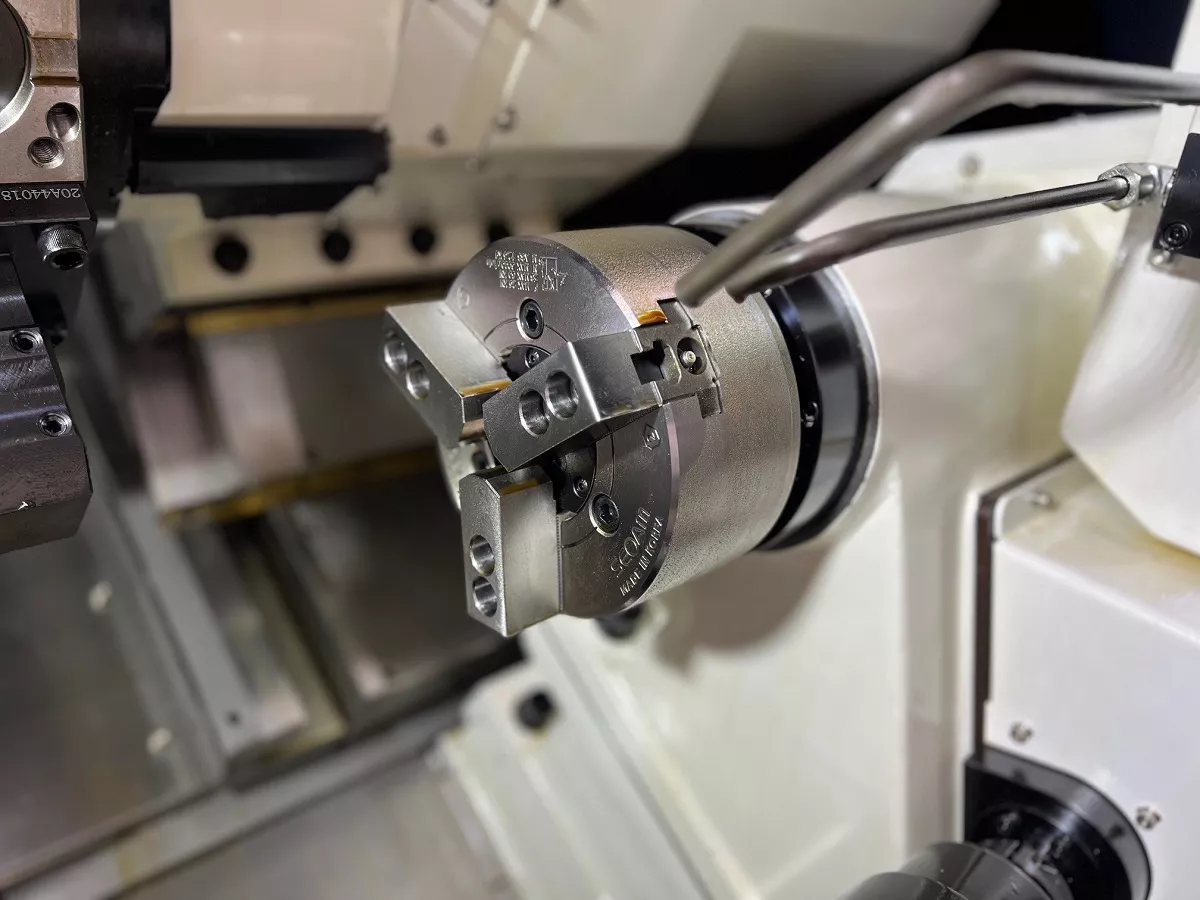

    Chuck diameter 250 mm
    Speed 3,500 rpm
    Power 25.5 kW
    Torque 424 Nm
    Speed 5,000 rpm
    Power 10.5 kW
    Torque 90 Nm

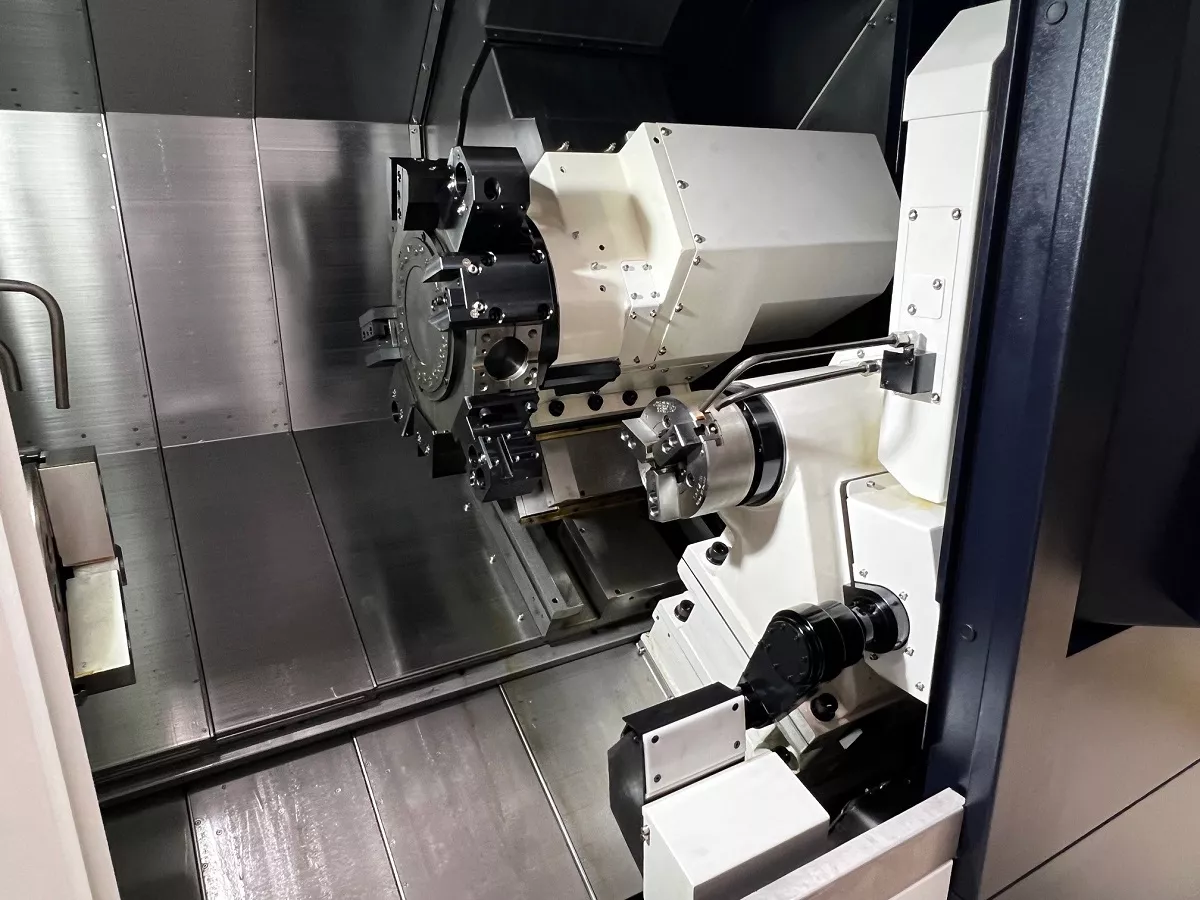

    Technology 12 stations
    Tool drive 5,000 rpm
    Power 5.6 kW
    Torque 53.4 Nm
    Tool holder BMT-65 / BH
    Travel X 240 mm
    Travel Z 120 mm
    Travel Y 60 mm
    Chip management Chip conveyor
    Coolant 140 l
    Tool measurement Tool eye
    Finished part removal Parts eject,

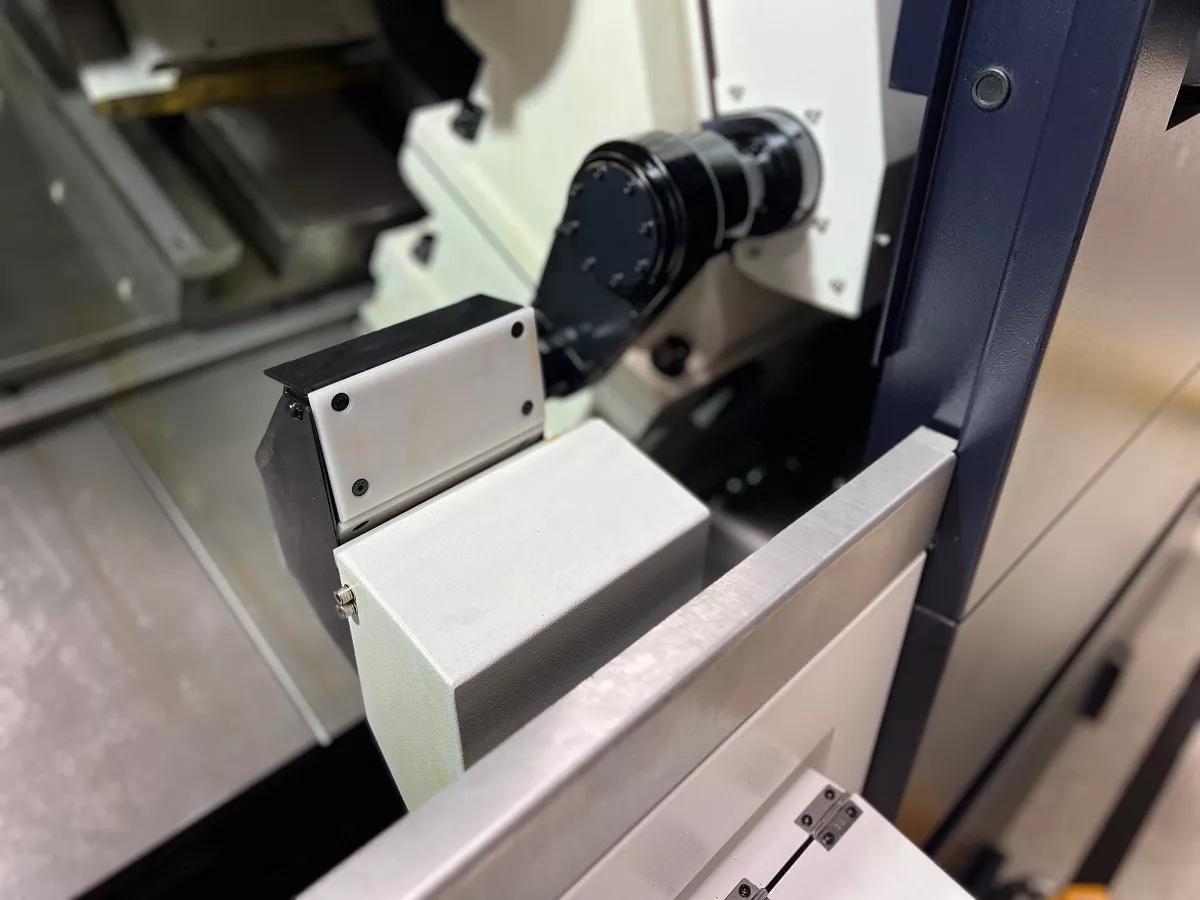

    Parts management parts catcher
    Bar feeder Prepared

    Equipment

    • Y-Axis
    • Subspindel
    • driven tools
    • Preparation bar loader
    • Chip conveyor
    • Coolant supply
    • Parts catcher
    • Parts eject
    • Tool measurement
