    • ROMI C470

    Cycle lathe (New machine)

    The CNC cycle lathe offers a high degree of versatility for machining a wide variety of parts. It is characterized by maximum ease of use, a particularly powerful drive and exceptionally high machining precision. The robust construction ensures maximum rigidity and stability.

    Product code92-000489
    Manufacturer ROMI
    ModelC470
    TypeCycle lathe
    ConditionNew machine

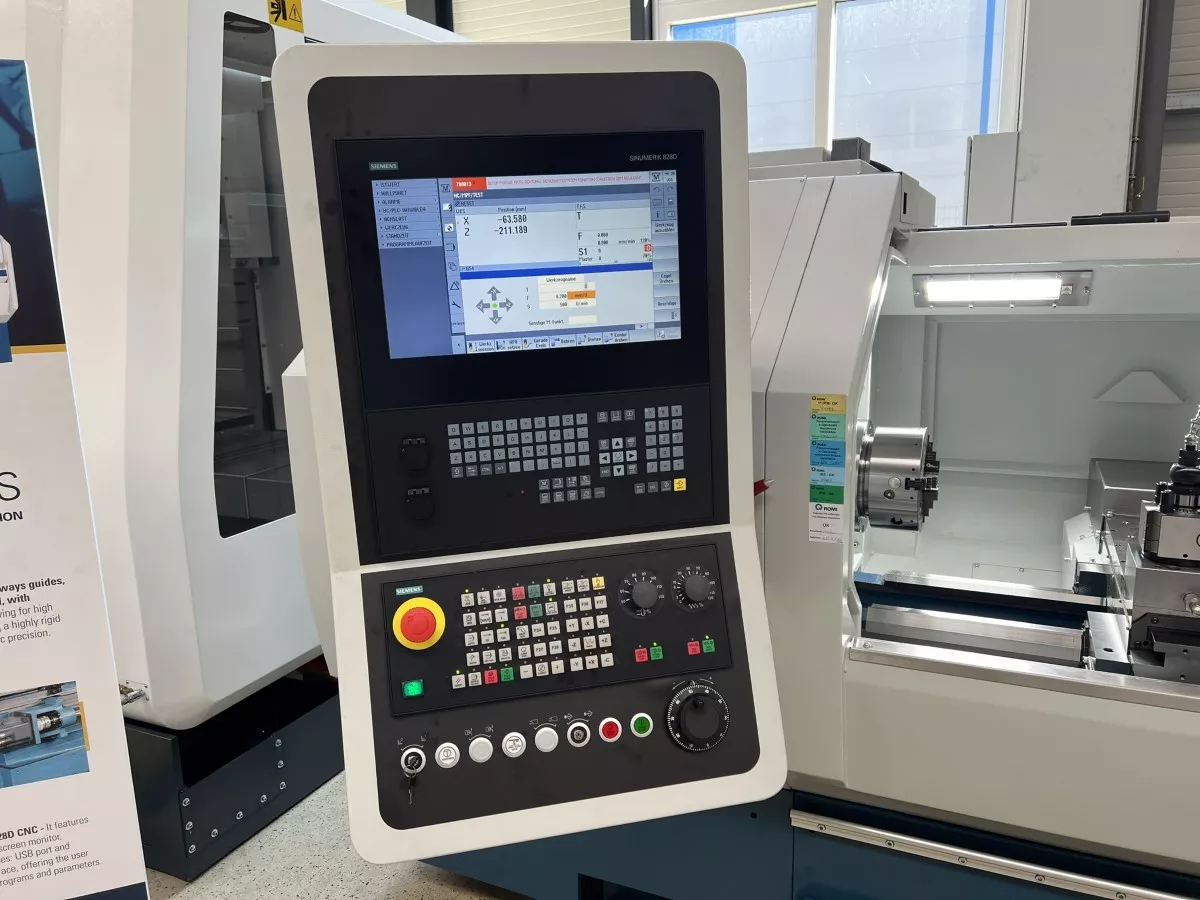

    ControlSiemens 828 D
    Year of manuf.2024
    Availability:immediately


    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Speed 3,000 rpm
    Power 9 kW
    Chuck diameter 210 mm
    Spindle bearing 65 mm
    Spindle nose A2-6''
    Center distance 1,000 mm
    Center hight 240 mm
    Diameter over bed 470 mm
    Travels Z-axis 1,065 mm
    Travels X-axis 220 mm
    Turret PARAT RD 2
    Technology Draged
    Centering device MK-4
    Chipmanagement Chip tray
    Turret PARAT 4-stations
    Coolant supply Coolant pump 7 bar

    Equipment

    • Coolant supply
    • Tailstock (manual)
    • Collet chuck incl.
    • Elect. handwheel
    • incl. clamping device
