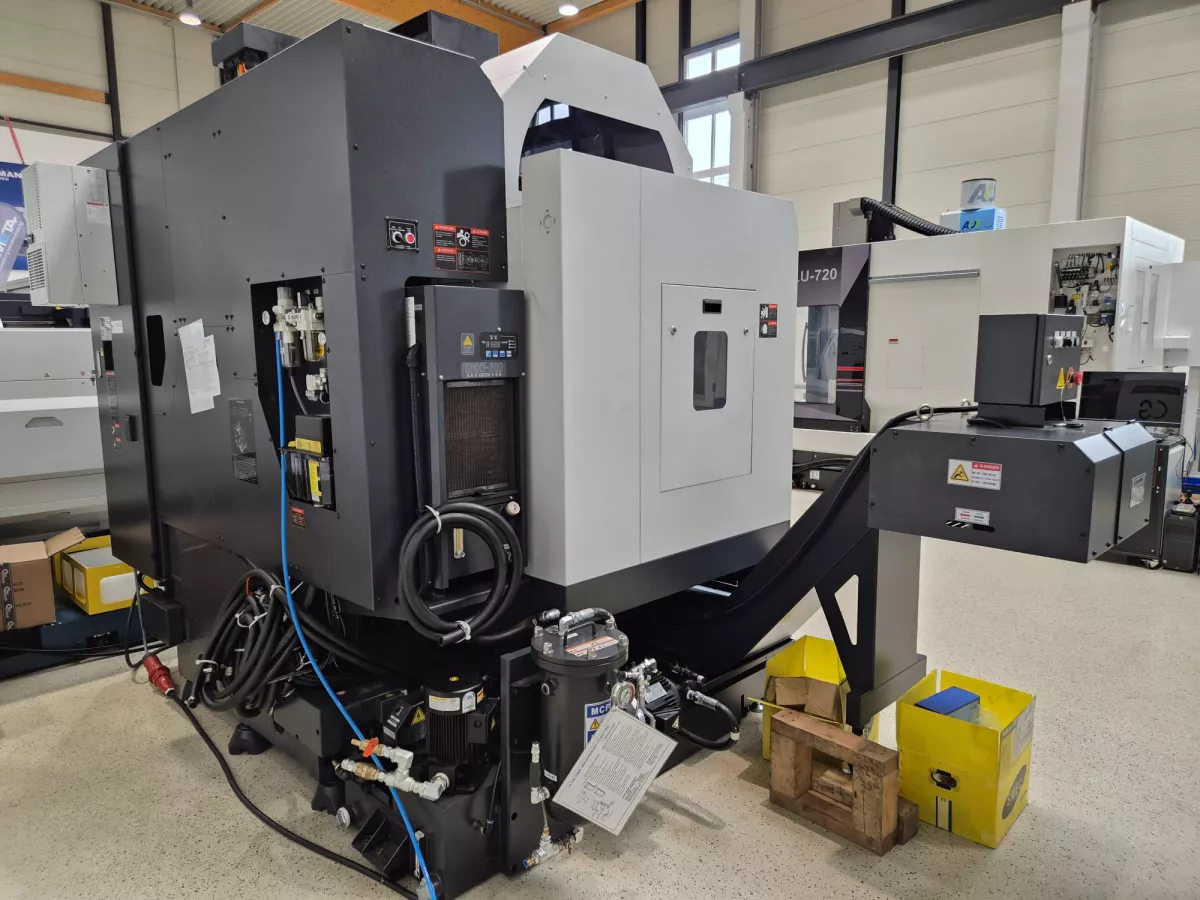

  • Smec MCV 4600 - Year of manuf.: 2023 Picture-1

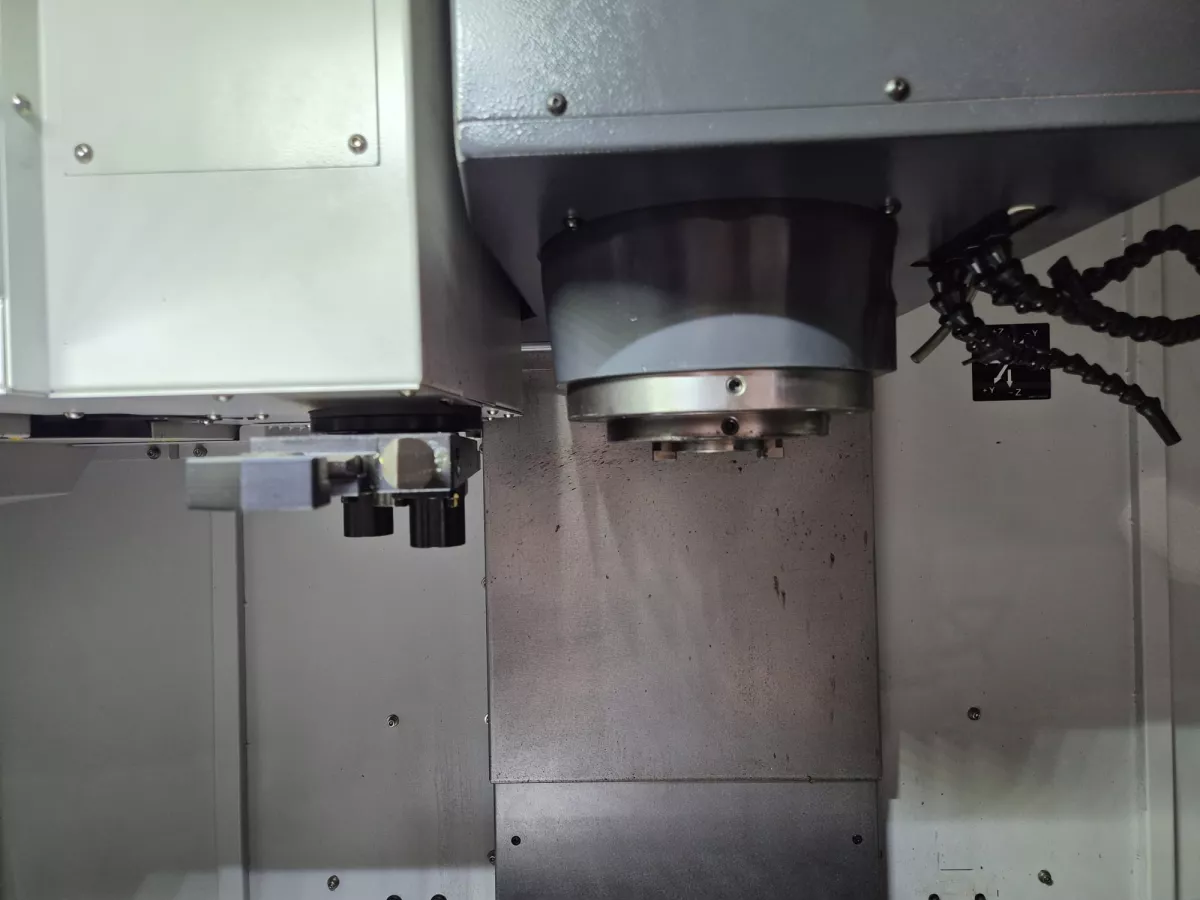

  • Smec MCV 4600 - Year of manuf.: 2023 Picture-2

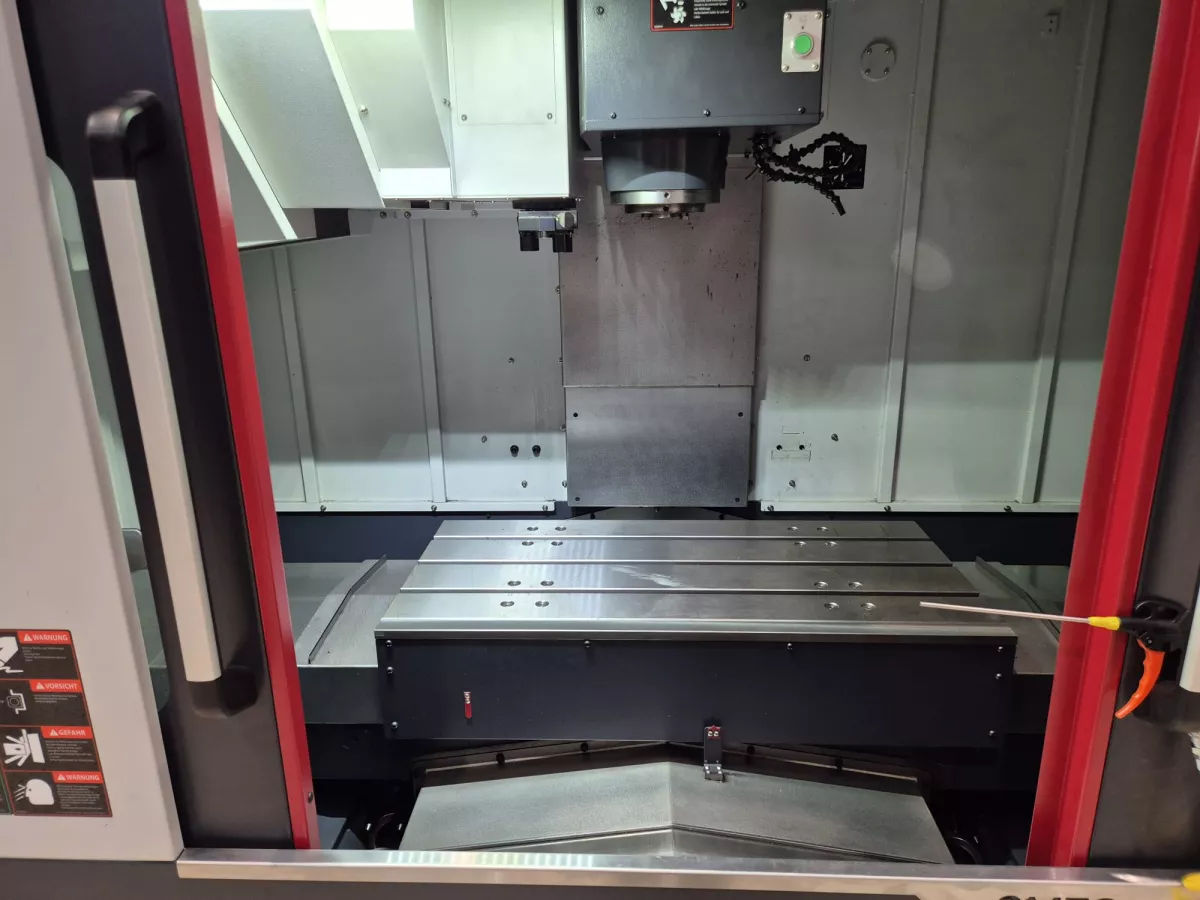

  • Smec MCV 4600 - Year of manuf.: 2023 Picture-3

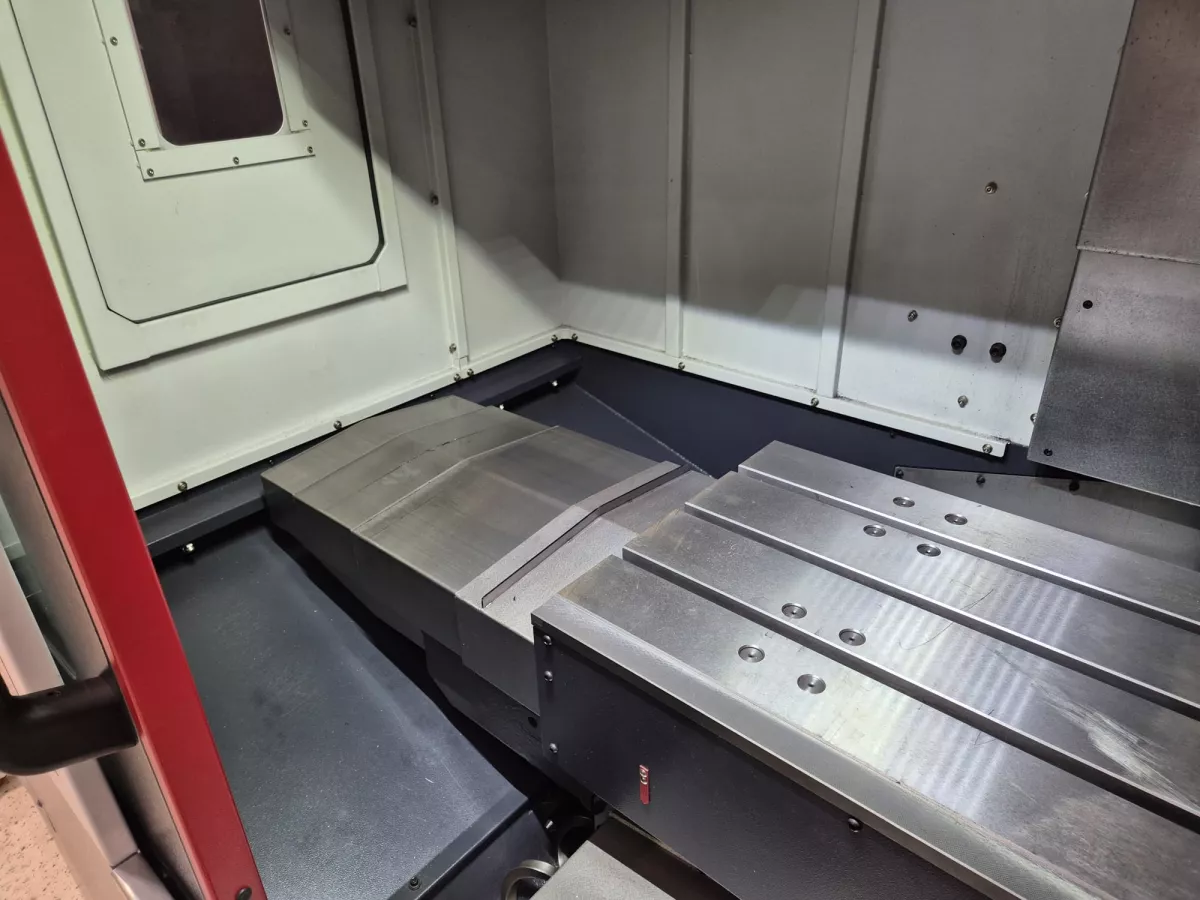

  • Smec MCV 4600 - Year of manuf.: 2023 Picture-4

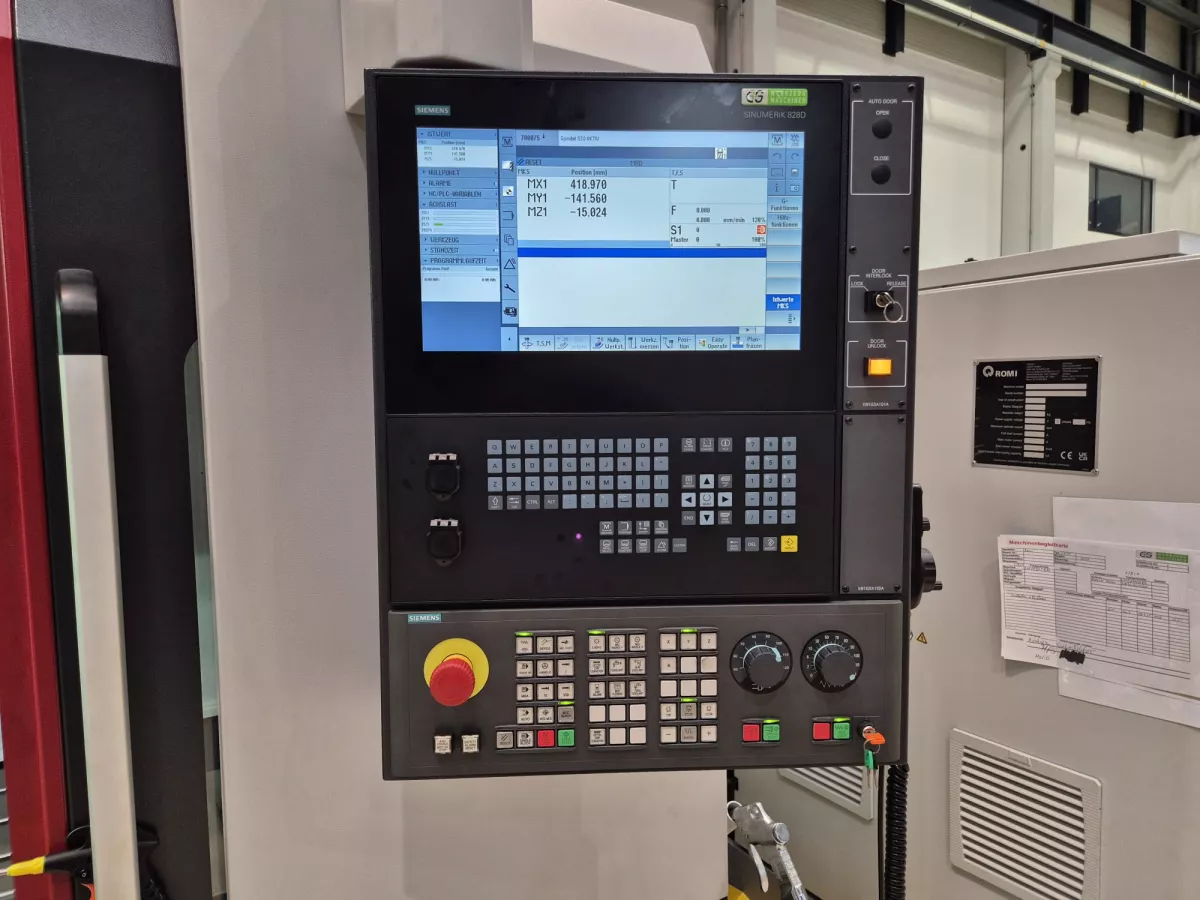

  • Smec MCV 4600 - Year of manuf.: 2023 Picture-5

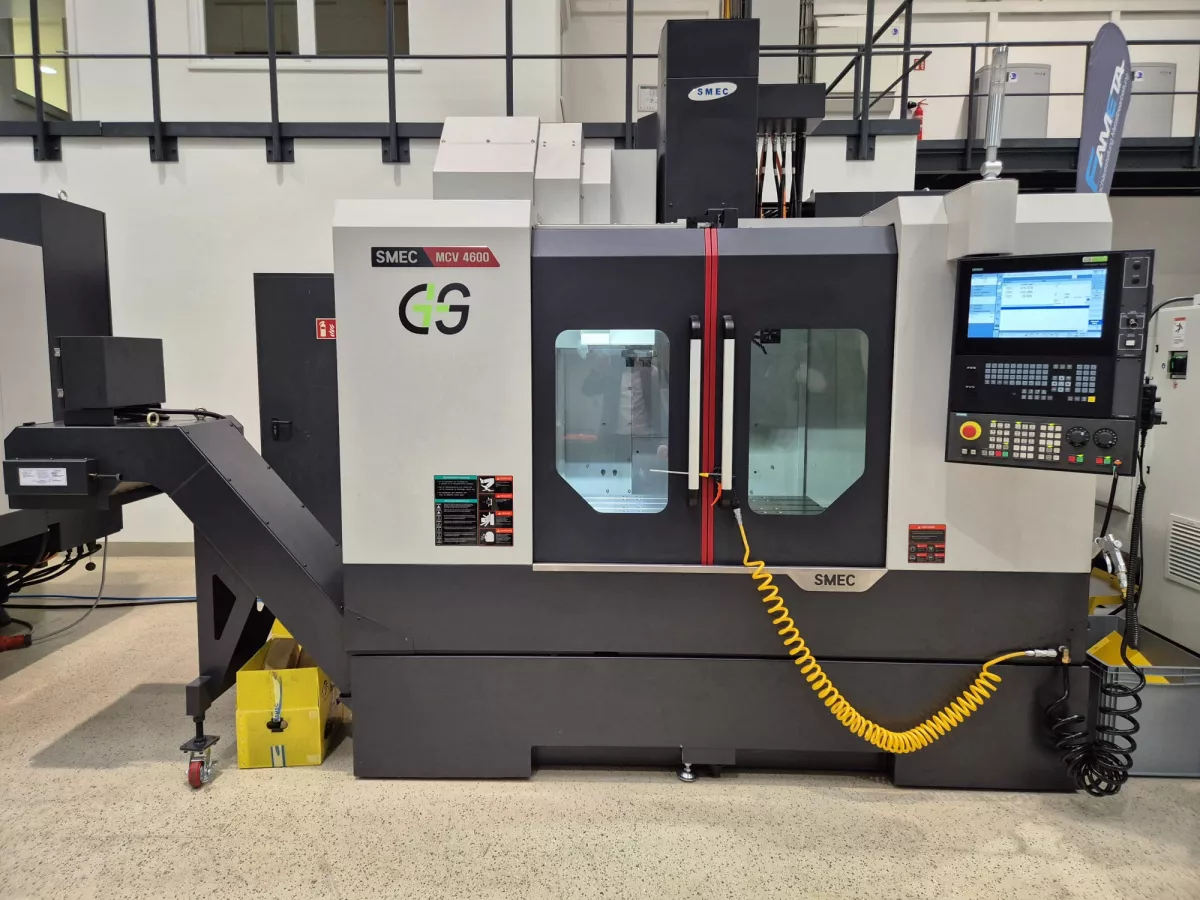

  • Smec MCV 4600 - Year of manuf.: 2023 Picture-6

    • Smec MCV 4600

    3-axis machining center (DEMO MACHINE)


    Product code89-001601
    Manufacturer Smec
    ModelMCV 4600
    Type3-axis machining center
    ConditionDEMO MACHINE
    ControlSiemens 828 D ShopMill
    Year of manuf.2023


    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Travels X 900 mm
    Travels Y 460 mm
    Travels Z 520 mm
    Clamping surface (L x B) 1,050 x 460 mm
    Table load max. 600 kg
    Speed 12,000 rpm
    Power 18 kW
    Torque 117 Nm
    Tool holder BT40
    Tool changer 30-stations
    Rapid traverse (X/Y/Z) 36 / 36 / 30 m/min
    Chip management Chip conveyor
    Coolant supply inner coolant supply

    Equipment

    • Chip conveyor
    • Coolant supply
    • Elect. handwheel
    • high pressure coolant
