  3. EMAG VL 2

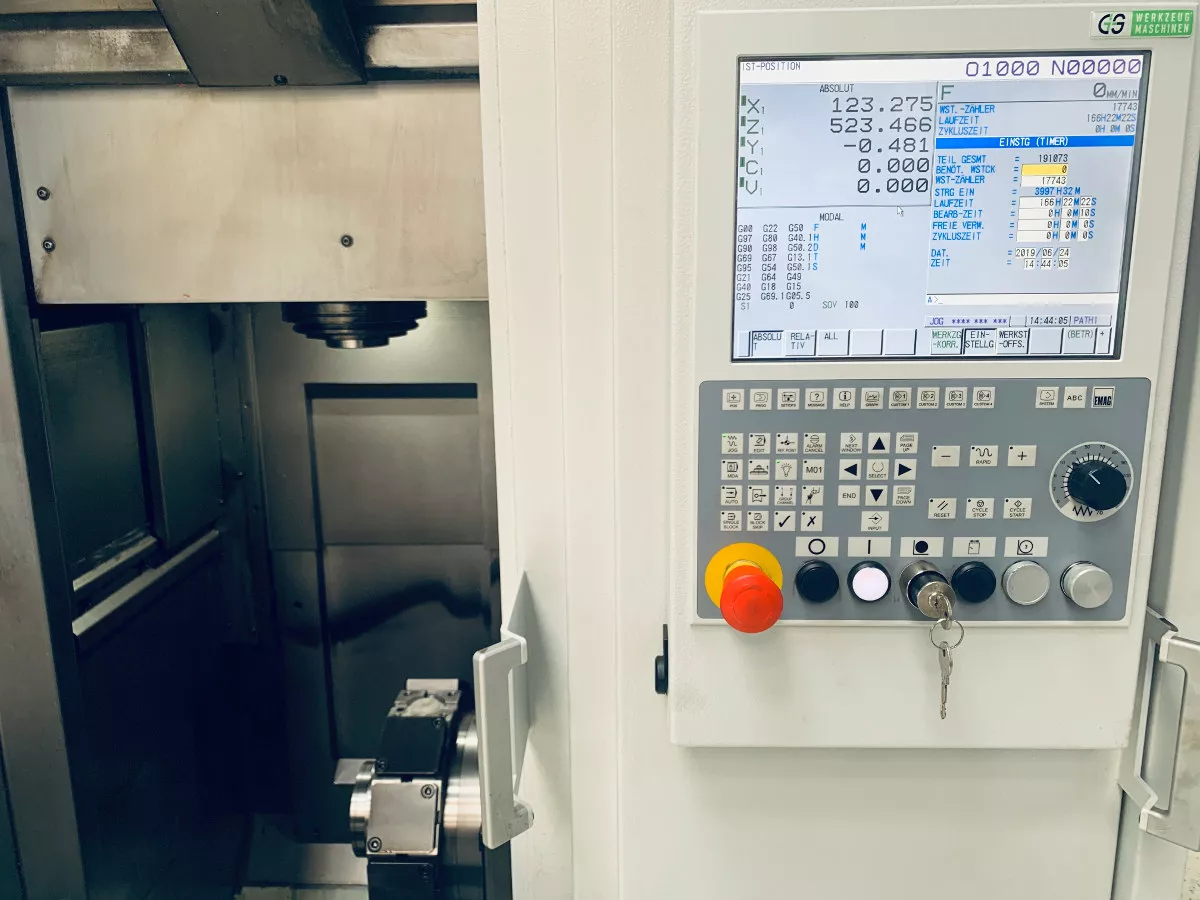

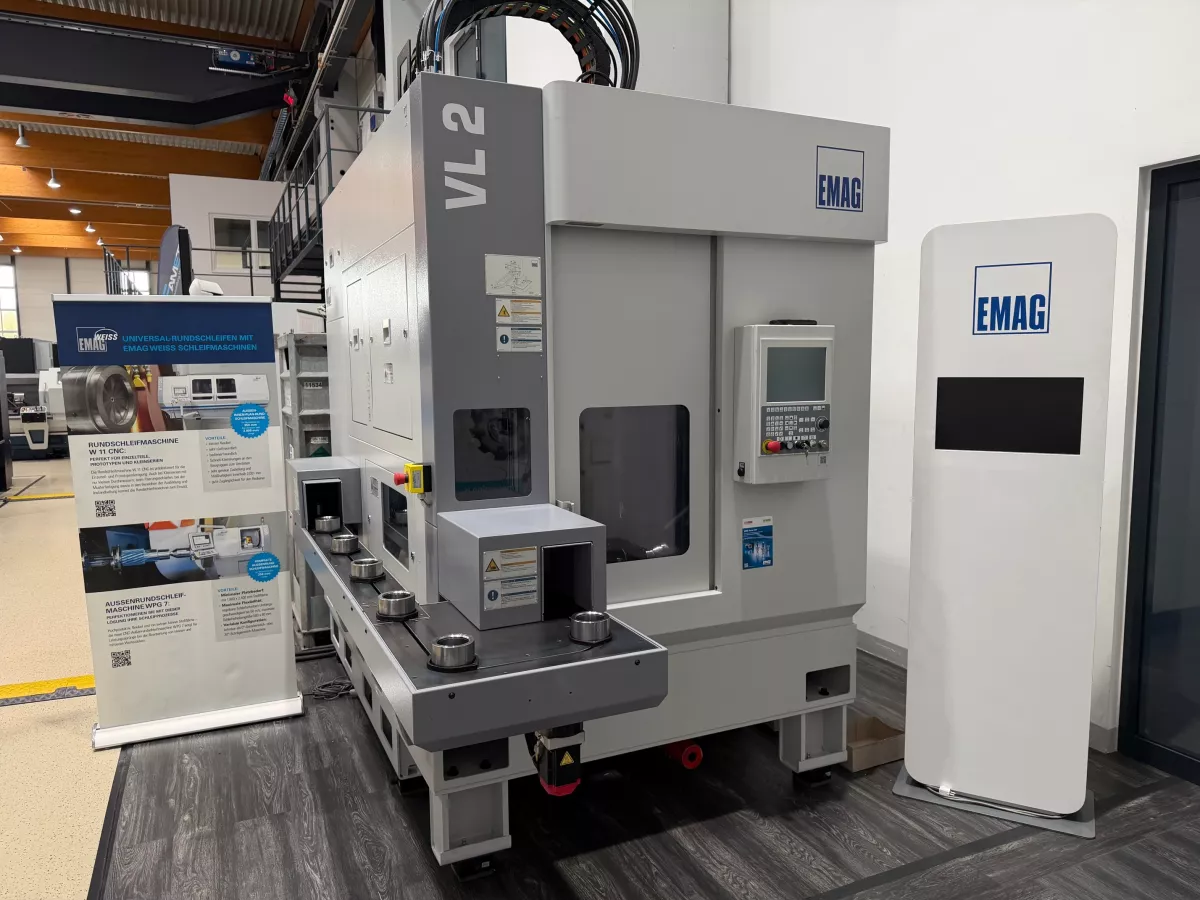

  • EMAG VL 2 - Year of manuf.: 2023 Picture-1

    • EMAG VL 2

    CNC vertical lathe (New machine)


    Product code92-000586
    Manufacturer EMAG
    ModelVL 2
    TypeCNC vertical lathe
    ConditionNew machine
    ControlFanuc
    Year of manuf.2023


    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Chuck diameter 160 mm
    turning length 150 mm
    Workpiece diameter max. 100 mm
    Workpiece length max. 150 mm
    Movement X 650 mm
    Movement Z 375 mm
    Power max. 15. kW
    Torque max. 76 Nm
    Speed max. 6,000 rpm
    Tool turret 12 places
    Typ BMT55
    Rapid traverse X/Z 60 / 30 m/min
    Speed Driven tool holder 6,000 rpm
    Torque Driven tool holder max. 23.7 Nm
    Technology Circulating workpiece storage
    Workpiece height (including workpiece pallet) max. 150 mm
    Workpiece weight max. 5 kg
    Workpiece handling Via spindle (pick-up)
    Chip disposal Chip conveyor
    Coolant supply High-pressure coolant, 15 bar
    Workpiece measurement Measuring probe
    Emulsion mist separator Mechanical
    Clamping cylinder Hydraulic full-bore clamping cylinder

    Equipment

    • Chip conveyor
    • Coolant supply
    • Oilmistextraction
    • Automation / Roboter
    • Workpiece measurement
    • high pressure coolant
