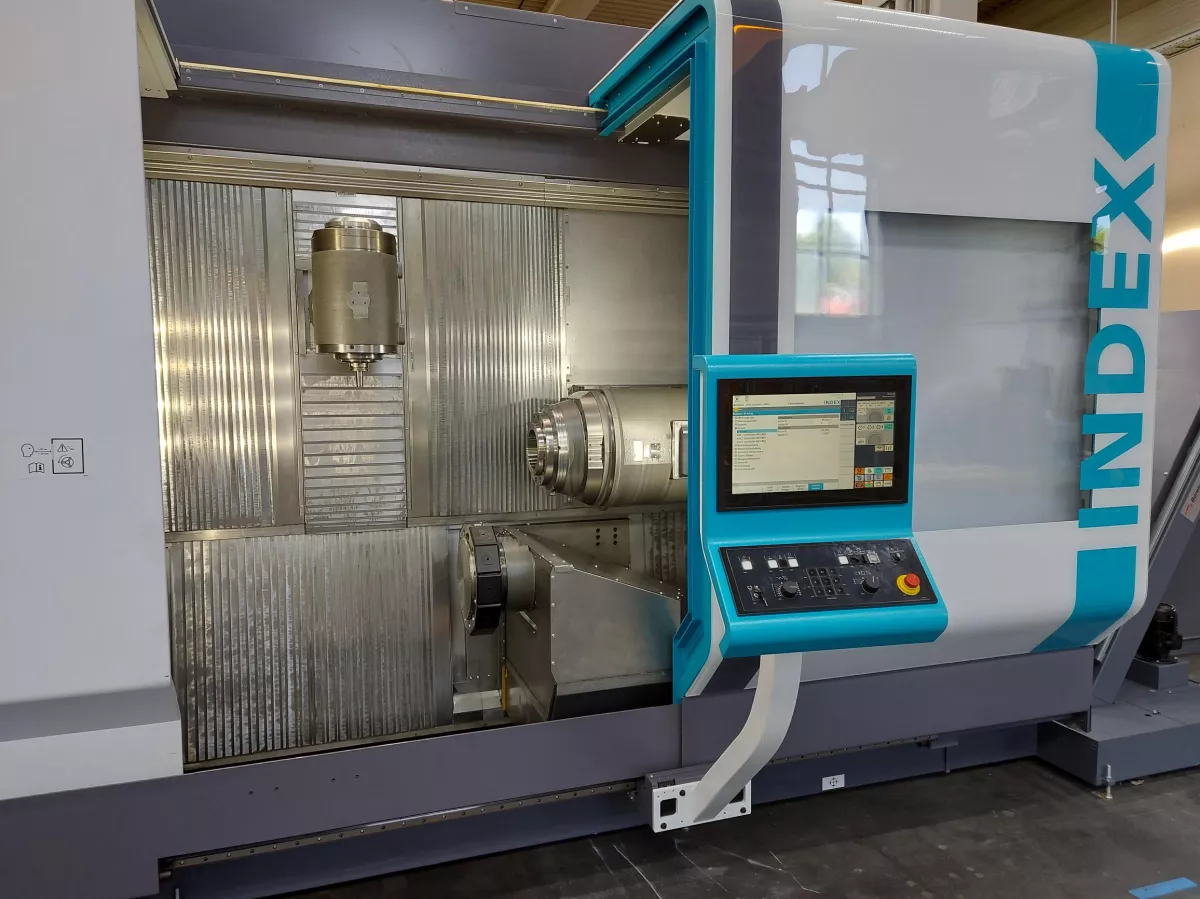

  • INDEX G420 - Year of manuf.: 2020 Picture-1

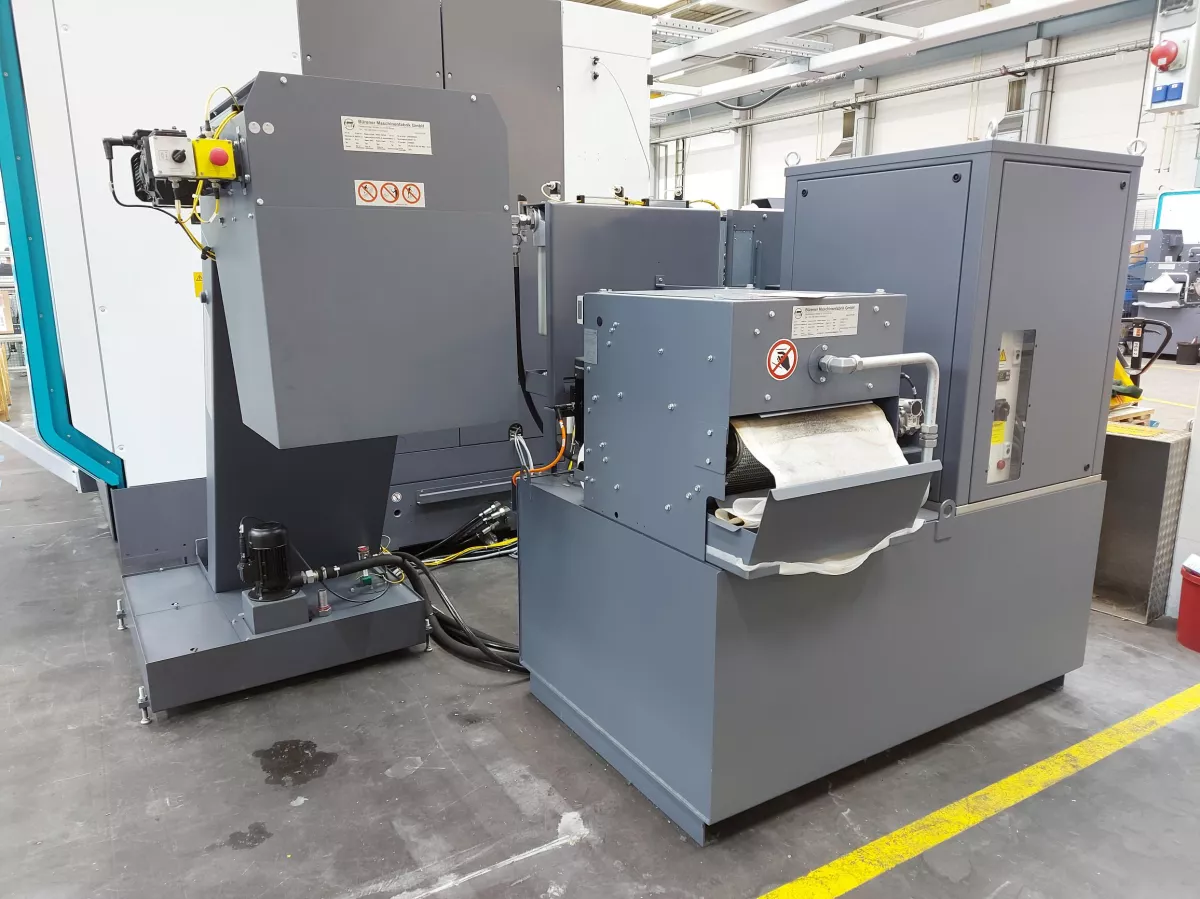

  • INDEX G420 - Year of manuf.: 2020 Picture-2

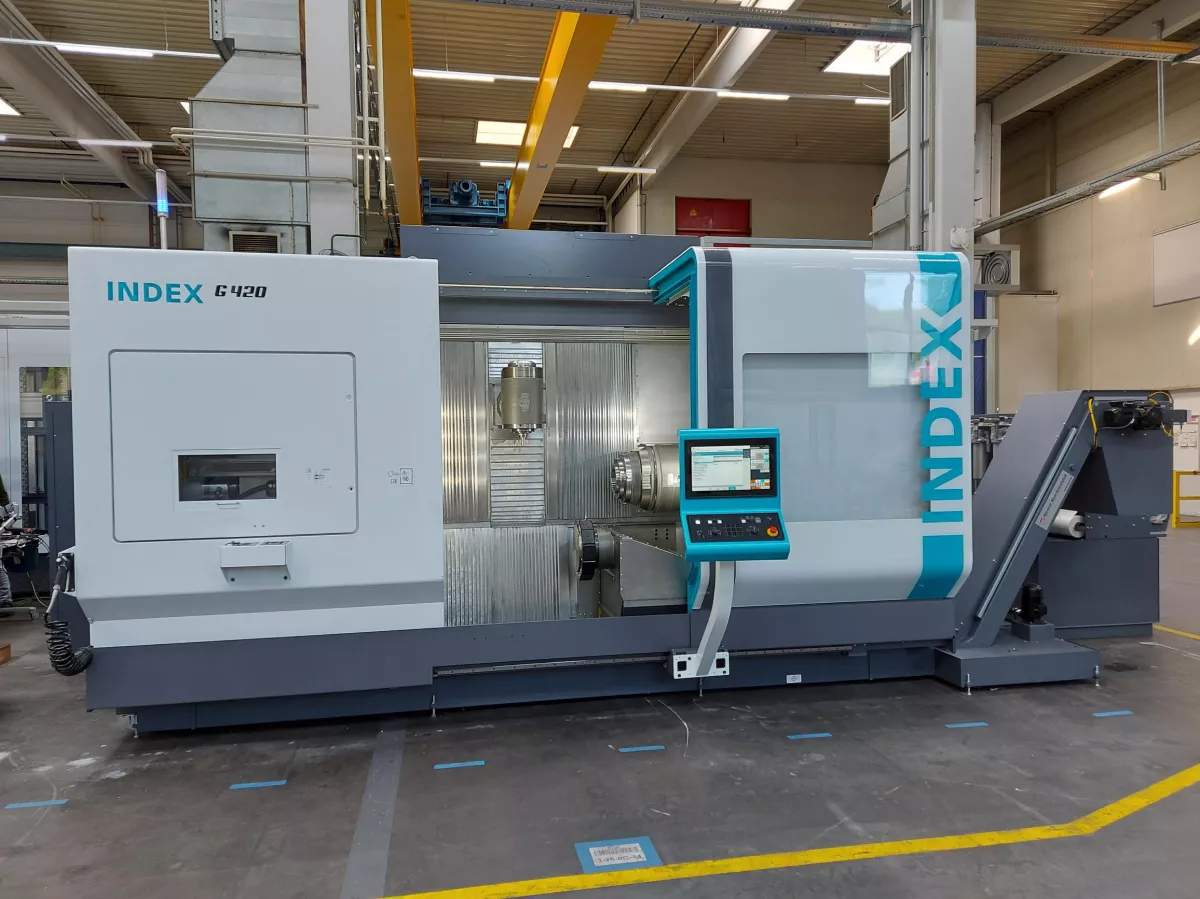

  • INDEX G420 - Year of manuf.: 2020 Picture-3

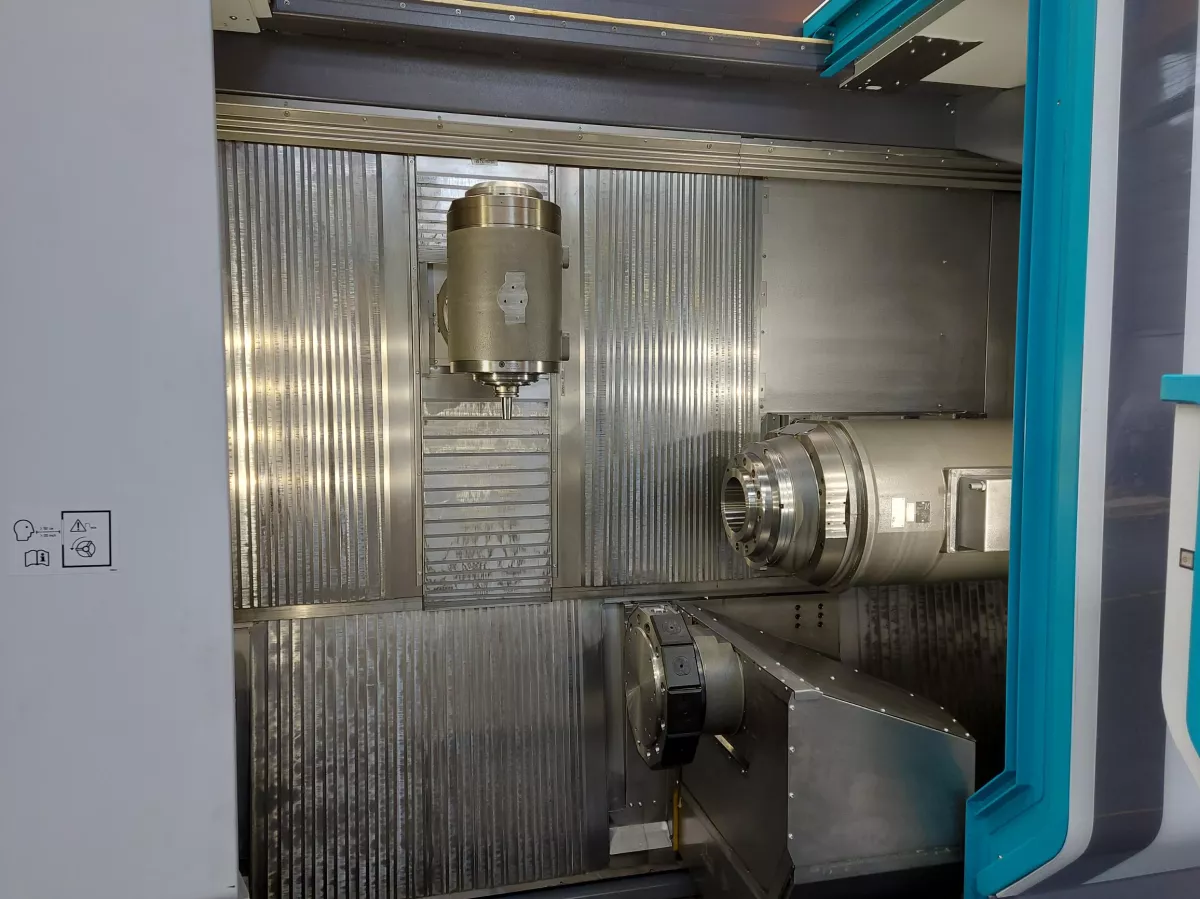

  • INDEX G420 - Year of manuf.: 2020 Picture-4

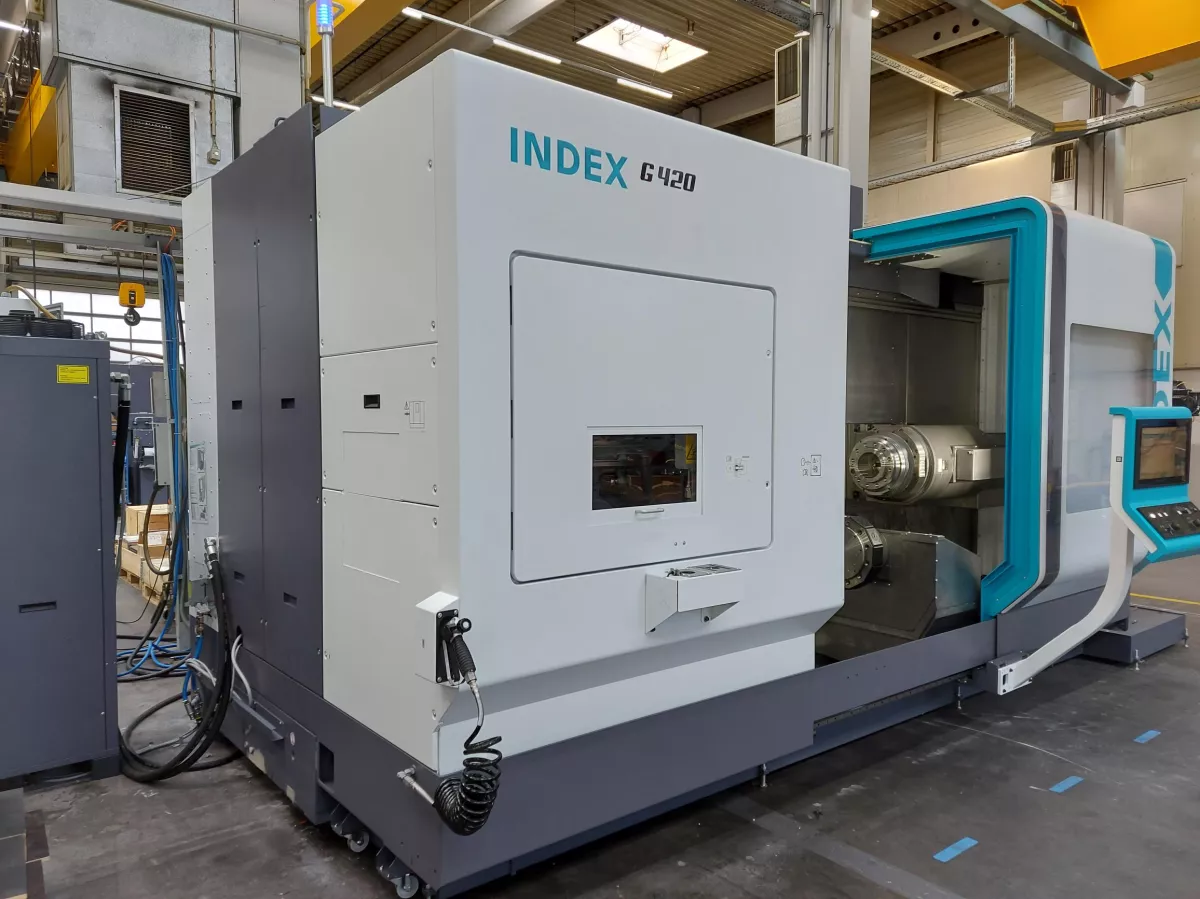

  • INDEX G420 - Year of manuf.: 2020 Picture-5

    • INDEX G420

    CNC lathe (DEMO MACHINE)

    The INDEX G420 is a high-precision complete machining center that stands out for its versatility and robust configuration. Equipped with an integrated milling spindle, two tool turrets, as well as a main and counter spindle, it enables simultaneous, multi-sided machining of complex workpieces in a single setup. This combination of turning, milling, and drilling operations opens up a wide range of applications – ideal for demanding parts with high machining complexity. With its rigid machine structure, dynamic axis movements, and intelligent control system, the G420 ensures maximum process reliability and efficiency, even in heavy-duty cutting tasks.

    Product code92-000582
    Manufacturer INDEX
    ModelG420
    TypeCNC lathe
    ConditionDEMO MACHINE
    ControlSiemens Sinumerik 840DSL
    Year of manuf.2020
    Availability:immediately

    Sold

    This product has already been sold. You although may send us an inquiry, we would be happy to send you a notice if this or any suitable machine will be available.



    ...
    René Schmidt

    Technical datasheet
    Share

    Technical Data

    Spindle diamenter 120 mm
    Speed max. 3,000 rpm
    C-axis 0,00014°
    Spindle diamenter 120 mm
    Speed max. 3,000 rpm
    C-axis 0,00014°
    Technologie Motor milling spindle
    Speed 12,000 rpm
    Tool holder HSK-T63
    X-Axis 750 mm
    Y-Axis +/-170 mm
    Z-Axis 1.600 mm
    B-Axis -25/+205 Grad
    Stations 12 pcs.
    Speed 5,400 rpm
    X-Axis 185 mm
    Y-Axis +/- 70 mm
    Z-Axis 1.600 mm
    Stations 12 pcs.
    Speed 5,400 rpm
    X-Axis 185 mm
    Y-Axis +/- 70 mm
    Z-Axis 1.600 mm
    Technology chain magazine
    Tool holder HSK-T63
    Tools 1 x 58 / 1 x 57 / all in 115

    Equipment

    • Y-Axis
    • Subspindel
    • driven tools
    • Preparation bar loader
    • Chip conveyor
    • Coolant supply
    • Linear scale
    • 5-axis simultaneous
    • B-axis
    • high pressure coolant
