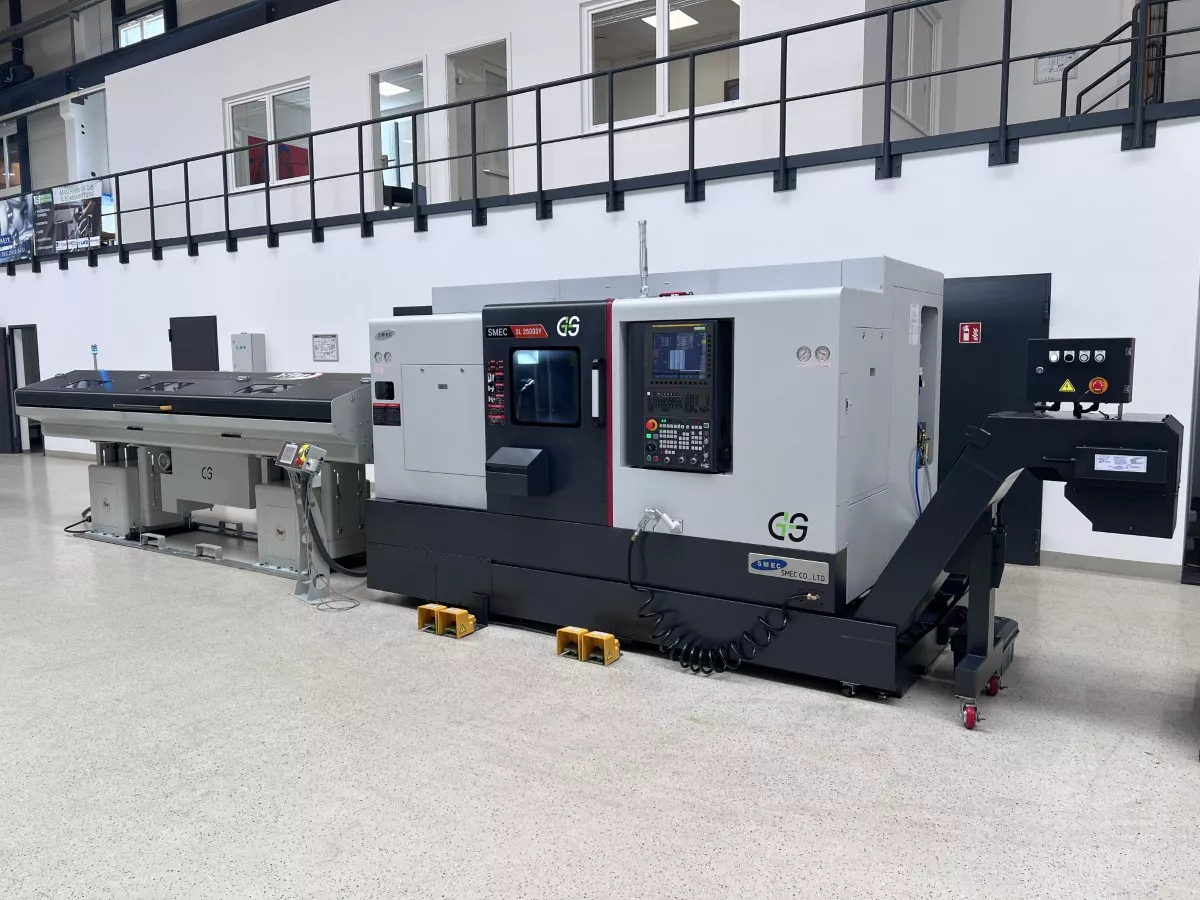

Smec SL 2500 ASY

CNC lathe (Used machine)

Discover the SMEC SL 2500 ASY, an advanced turning machine with a sub-spindle and Y-axis, known for its versatility in both single and batch production. It offers an excellent price-performance ratio, enabling precise machining at an affordable cost.

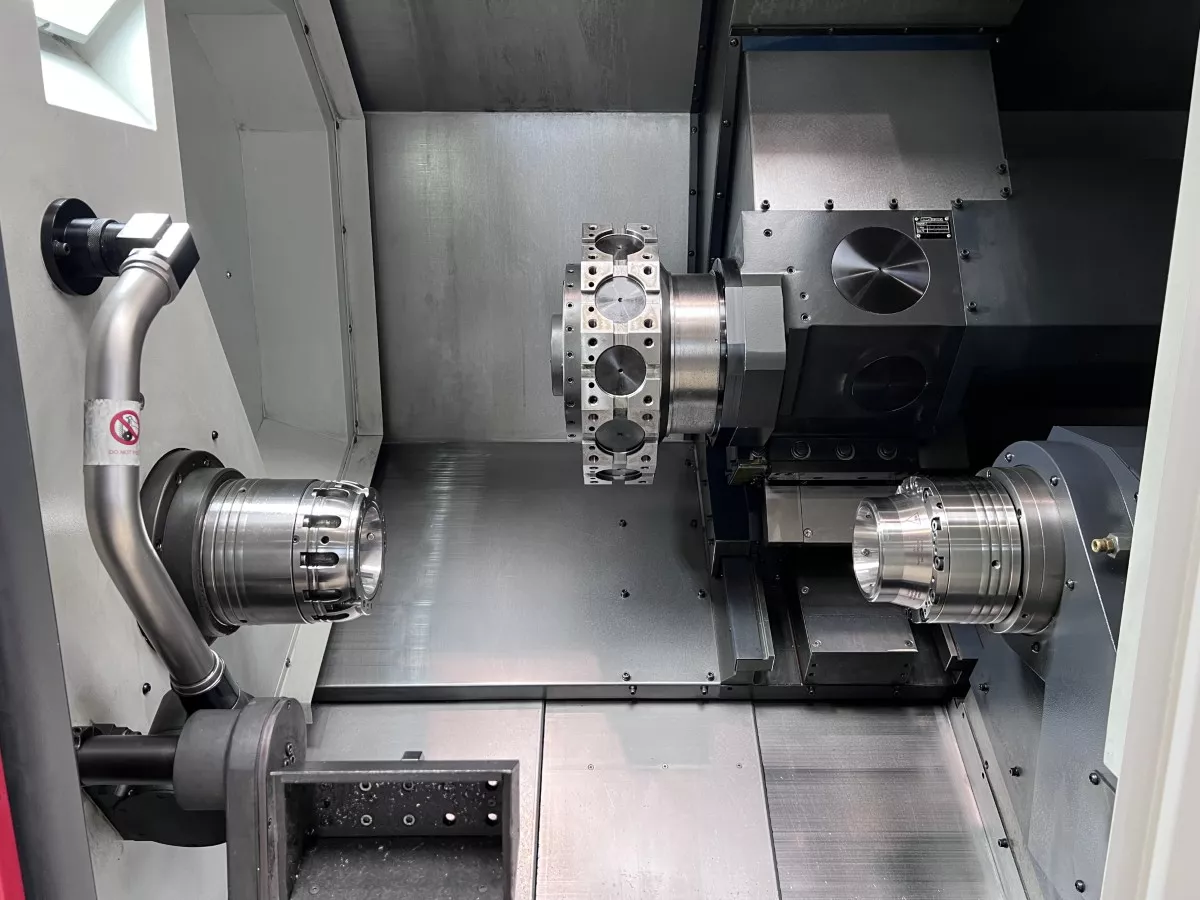

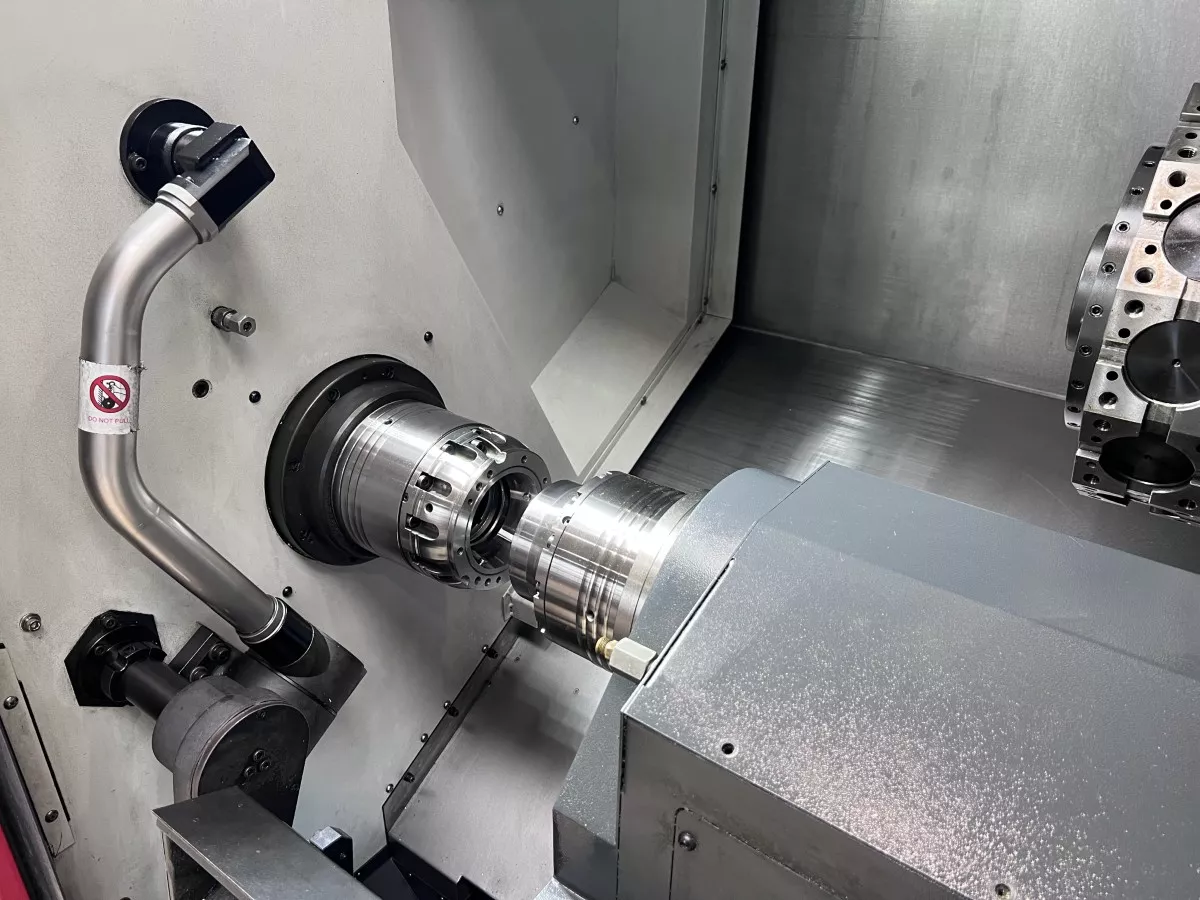

Thanks to its main and sub-spindle, along with the Y-axis, the SL 2500 ASY facilitates complex machining with high precision. The high-stability flat guides enhance accuracy and surface quality while reducing vibrations and extending tool life.

The machine is adaptable for retrofitting with a bar feeder, boosting efficiency in batch production and making it ideal for a wide range of applications, from the automotive industry to mechanical engineering.

The SMEC SL 2500 ASY is a cost-effective solution for businesses looking to expand their production capabilities with a reliable, precise machine. Its flexibility for both single-item and batch production makes it a valuable tool in any modern manufacturing environment.


Product code92-000585
Manufacturer Smec
ModelSL 2500 ASY
TypeCNC lathe
ConditionUsed machine

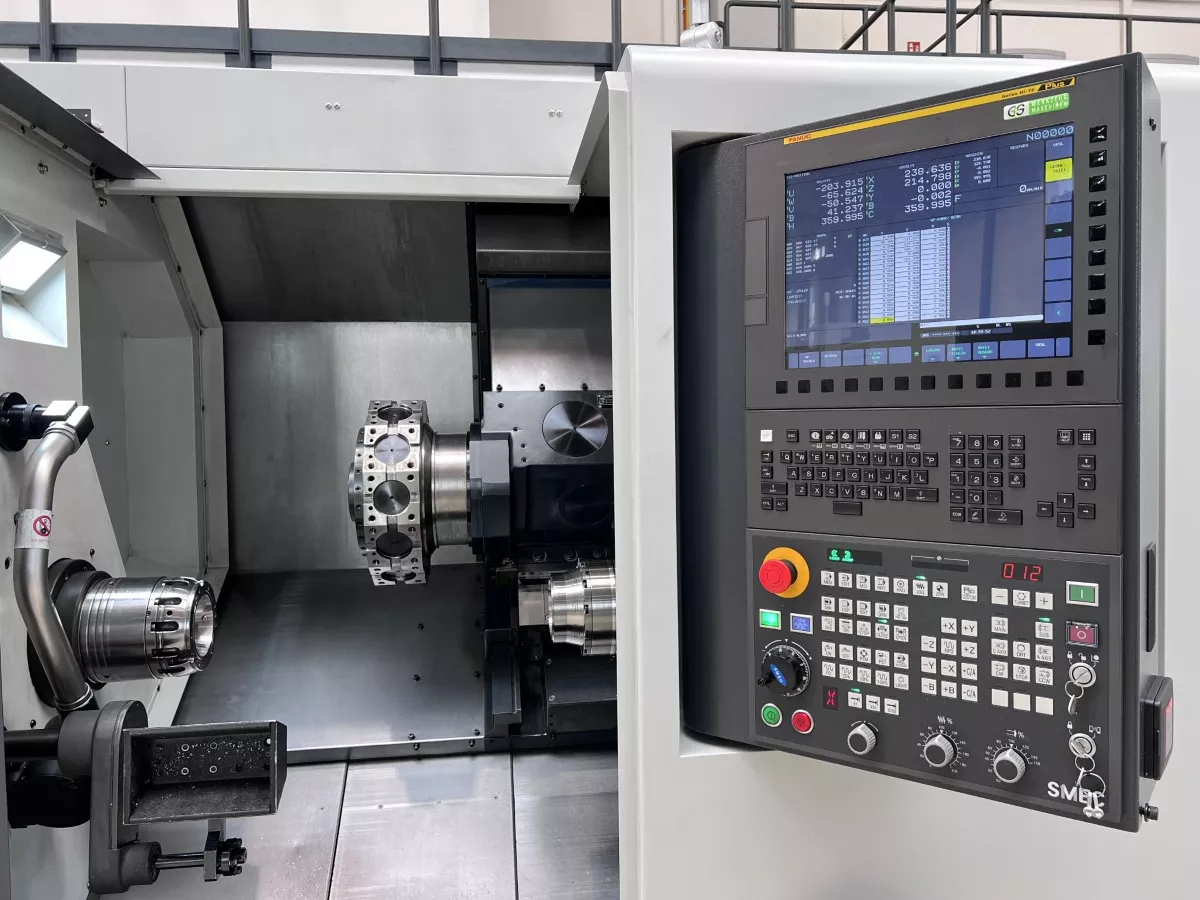

ControlFanuc 0i-TF Plus
Year of manuf.2022



Technical Data

Turning length 490 mm
Durning diameter 360 mm
Spindel head A2-6
Bar capacity 67 mm
Power 19.5 kW
Torque 212.90 Nm
Speed 4,500 rpm
X-axsis 235 mm
Y -axis 100
Z-axis 580 mm

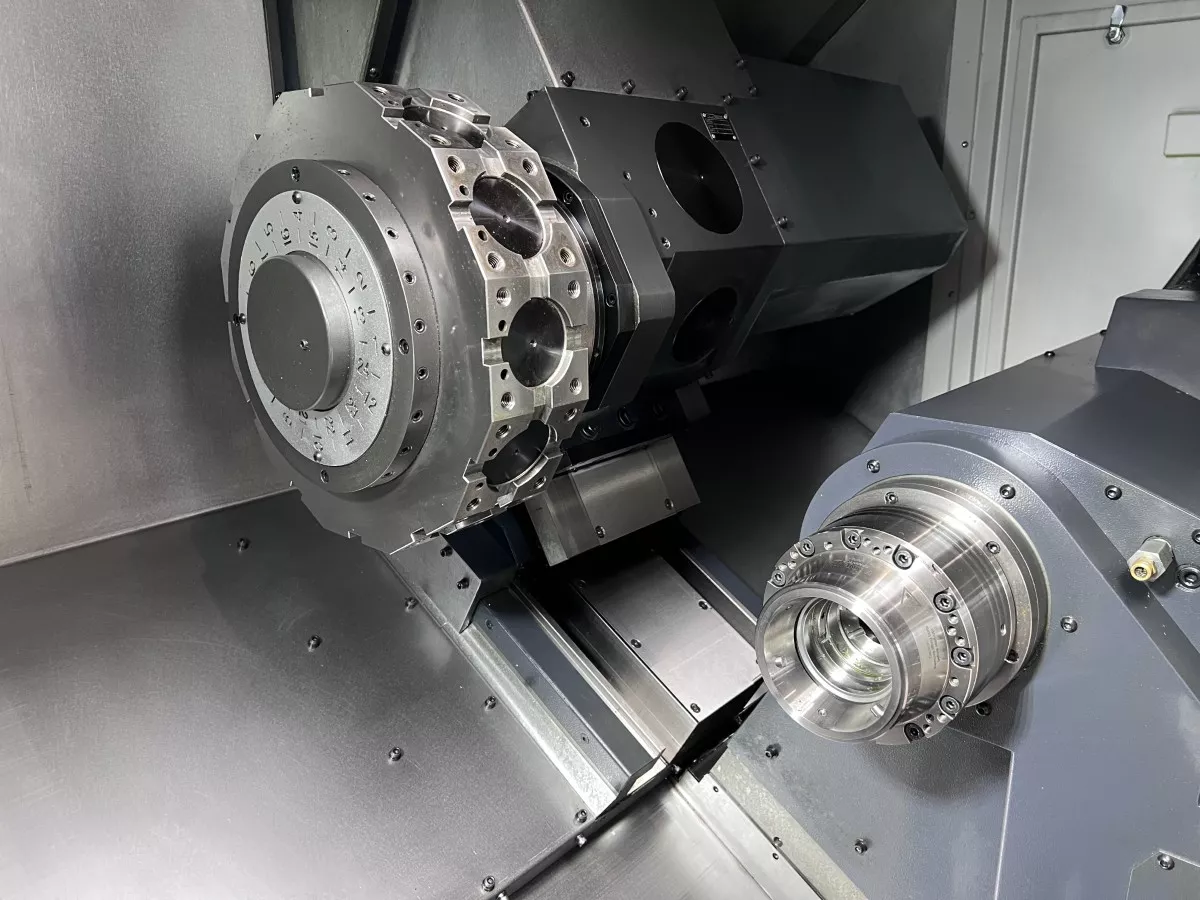

Stations 12
Tool system BMT 65
Power 5.5 kW
Torque 37.5 Nm
Power 7.5 KW
max. Torque 51 Nm
max. Speed 6.000 U/min
Chip management Chip conveyor
Coolant management inner coolant 10 bar

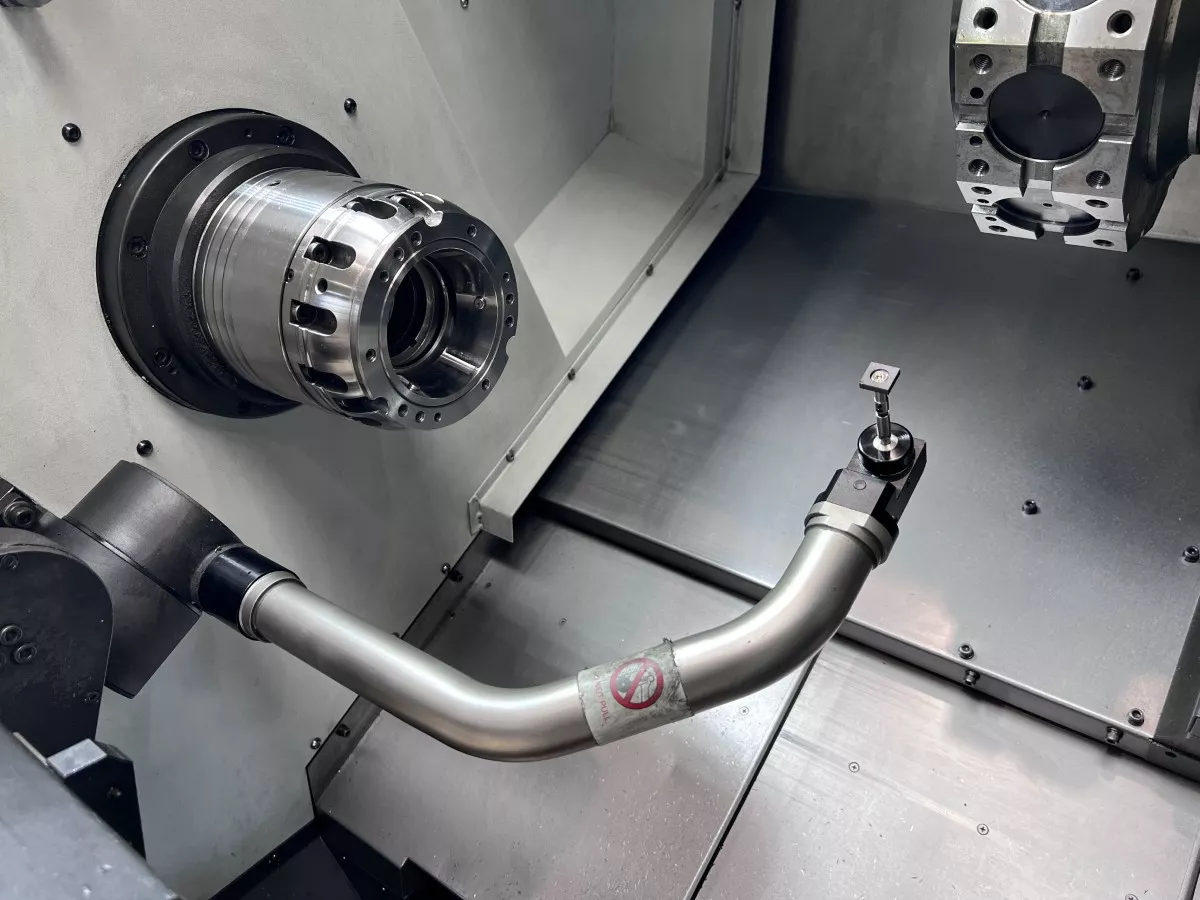

Tool measurement Tool eye

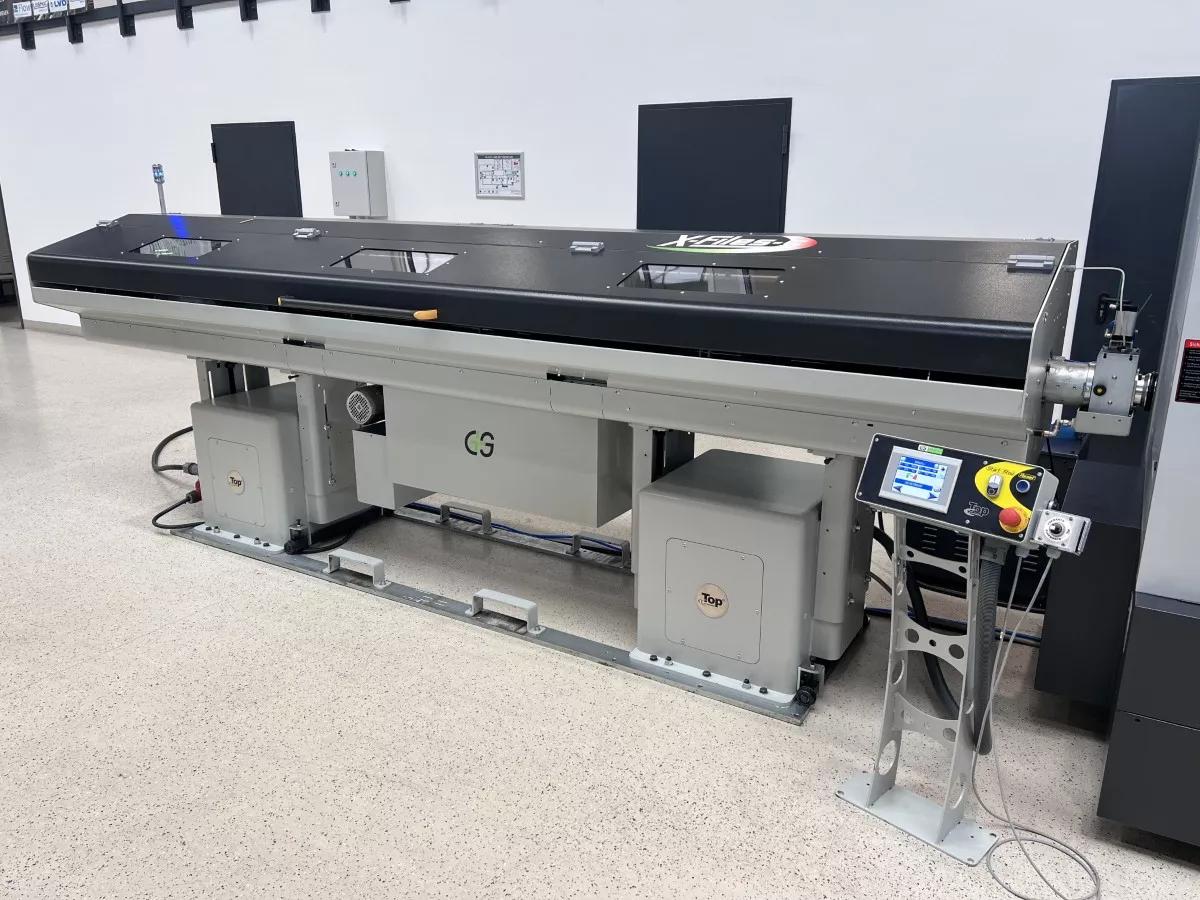

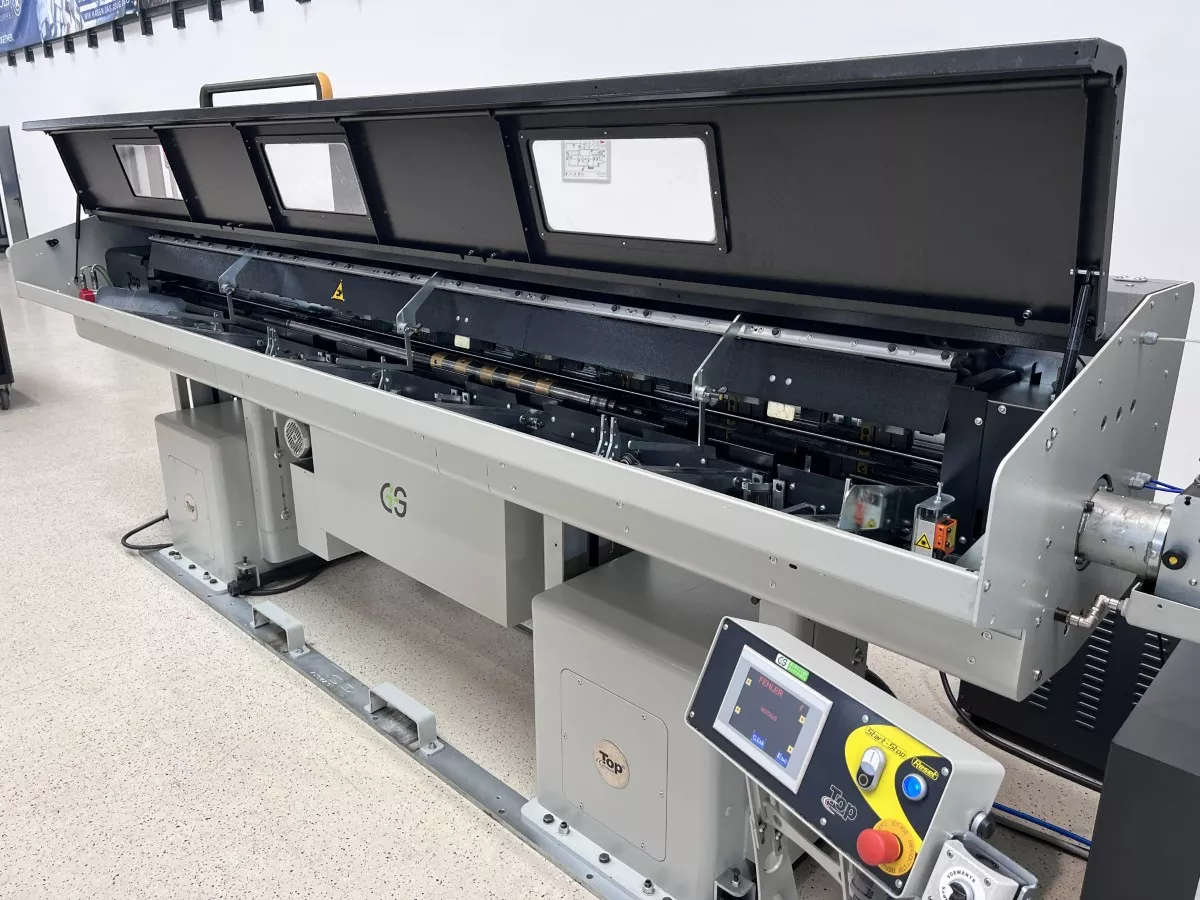

Bar feeder Top Automazioni XFiles-S 365M

Equipment

  • Y-Axis
  • Subspindel
  • driven tools
  • Bar loader
  • Chip conveyor
  • Coolant supply
  • Parts catcher
  • Parts eject

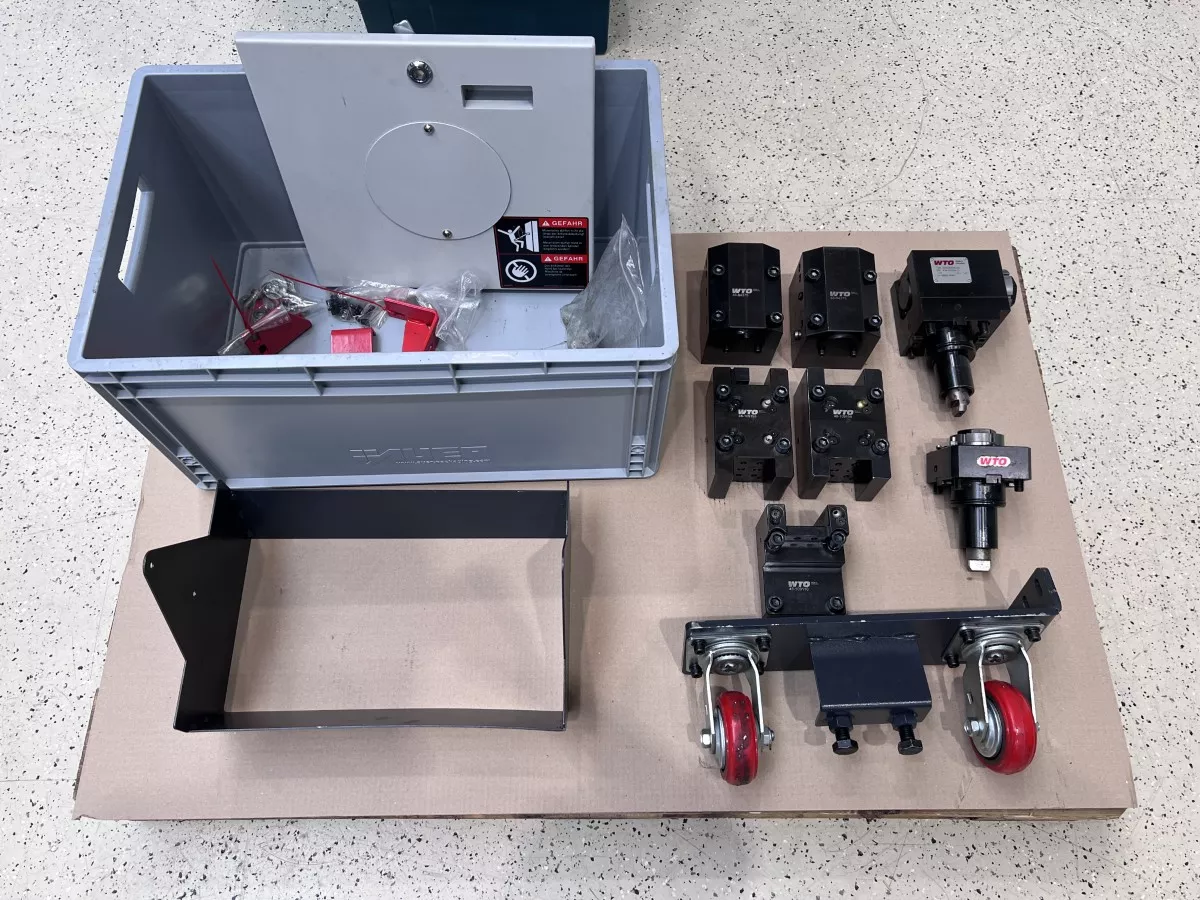

  • tool holder package
  • incl. clamping device
  • Tool measurement
